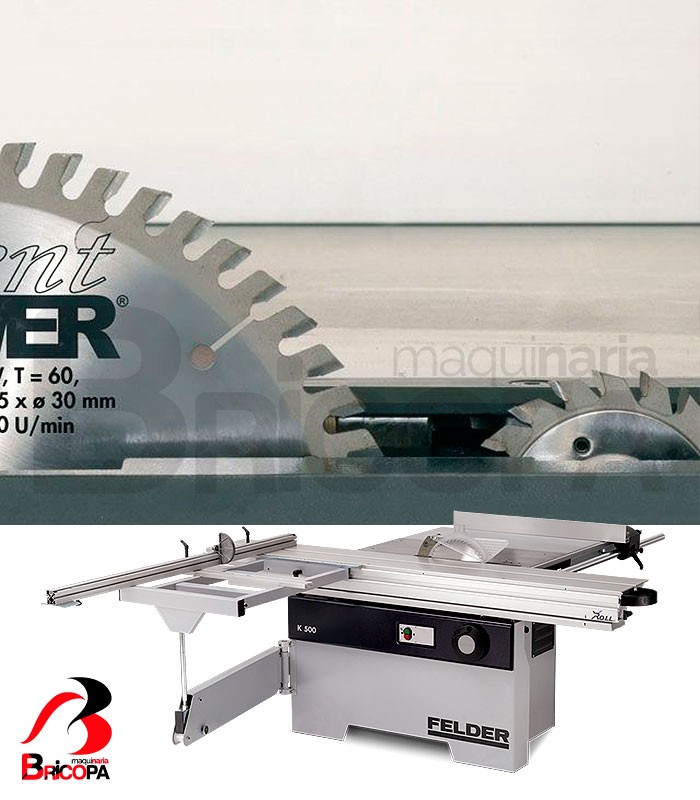

SLIDING TABLE SAW K 500 PROFESIONAL FELDER

The SQUARING MACHINE K 500 PROFESSIONAL FELDER has a 4 hp engine. The saw unit has a cutting width of 800mm with a blade inclination of 45 to 90 degrees, a maximum cutting height. 102 mm and a 2050mm movable carriage.

More details

K 500 PROFESIONAL FELDER
New machinery

Technical description

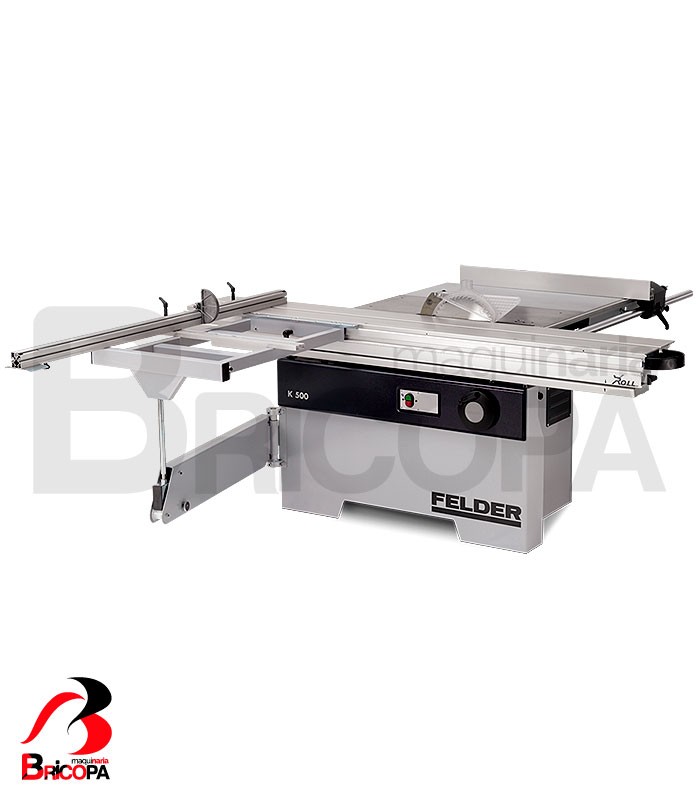

SLIDING TABLE SAW K 500 PROFESIONAL FELDER

The Felder K 500 is the great value panel saw for professional woodworking. The tiltable saw blade, the precise professional fence and the patented aluminium format sliding table “X-Roll” with 10 year factory guarantee, ensures reliability, stability and excellent results. With the 2050 mm sliding table and 1100 mm outrigger table included in the professional package, the K 500 can count itself as part of the industry range. TECHNICAL DATA

Electrical setup

  • 3x 400 V.
  • 50 Hz.
  • 4.0 HP (3.0 kW)*

Saw and scoring unit

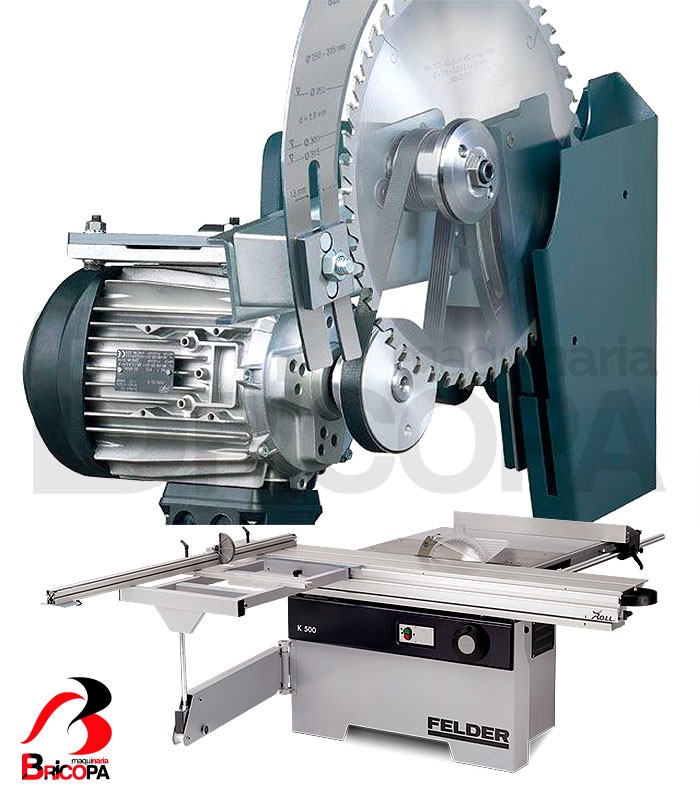

  • Saw unit with blade tilt 90°–45°, cutting height max. 102 mm
  • 800 mm rip capacity with full table length, min. transport width 800 mm.
  • Saw guard EURO II.

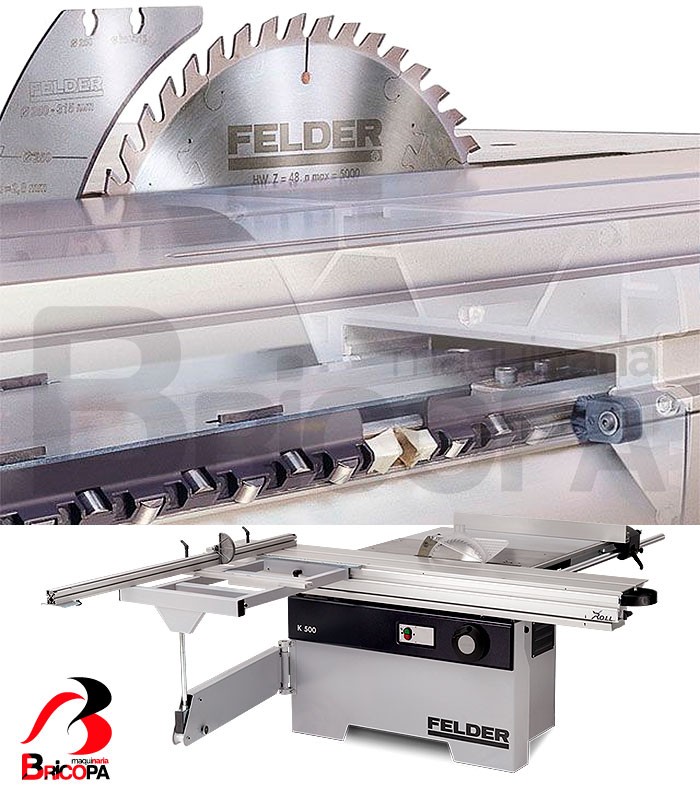

Sliding tables

  • Dimension sliding table L, cutting length 2050 mm**
  • Dimension sliding table anodised.

Outrigger tables and crosscut fences

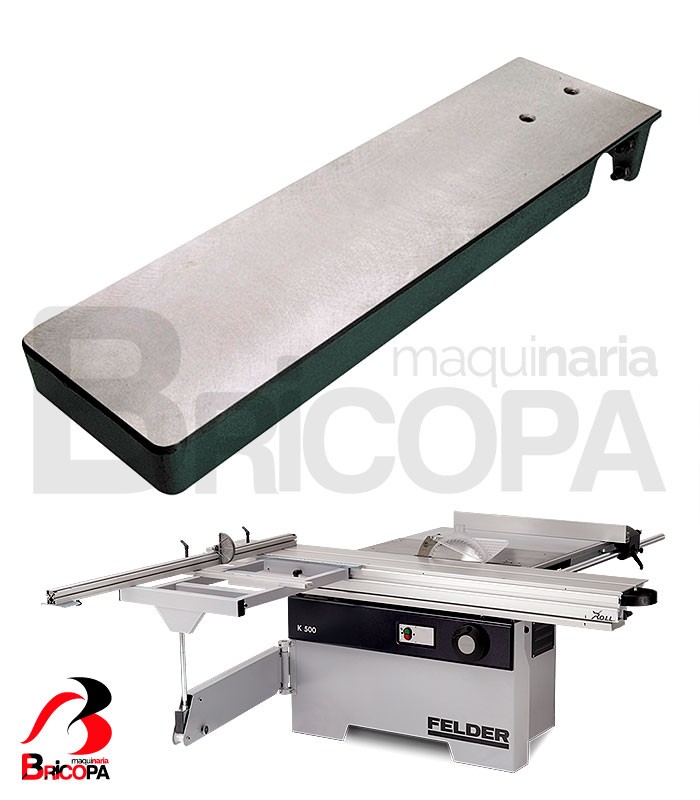

  • 1100 mm Outrigger table for 1000–2050 mm sliding tables, Series 500

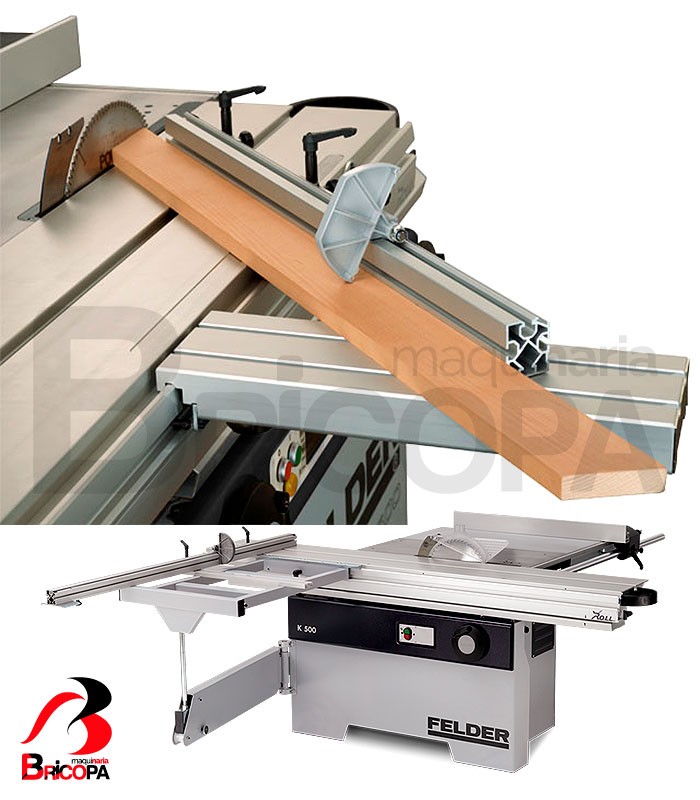

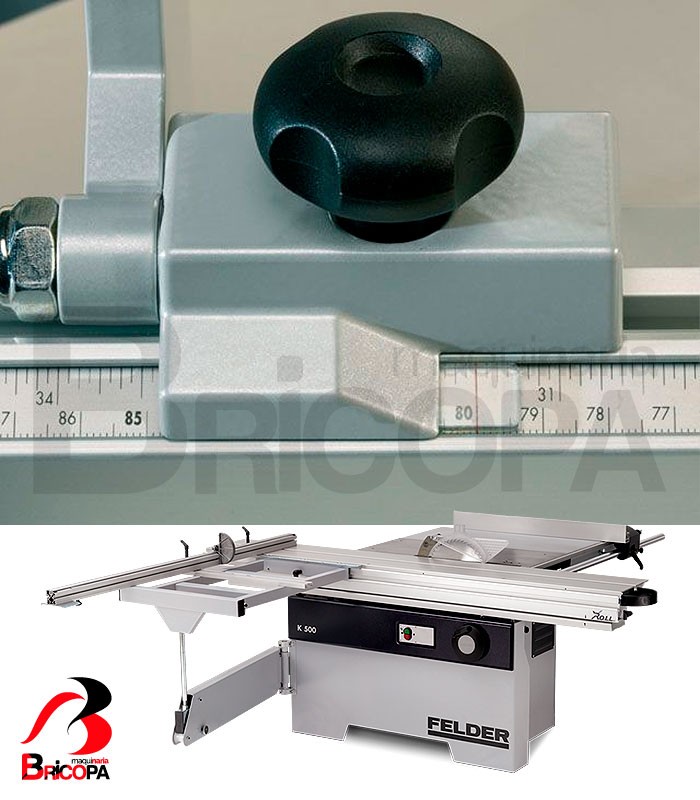

  • Crosscut fence 2600 mm for outrigger table (#160/161).

General

  • Working height in mm: 890
  • Min. transport width in mm (without option 012): 800
  • Extractor connection port diameter in mm on overhead saw guard: 120/50
  • Weight kg (with standard configuration): 420

Characteristics for information only. The technical details are not legally binding. Contact us for further information.
