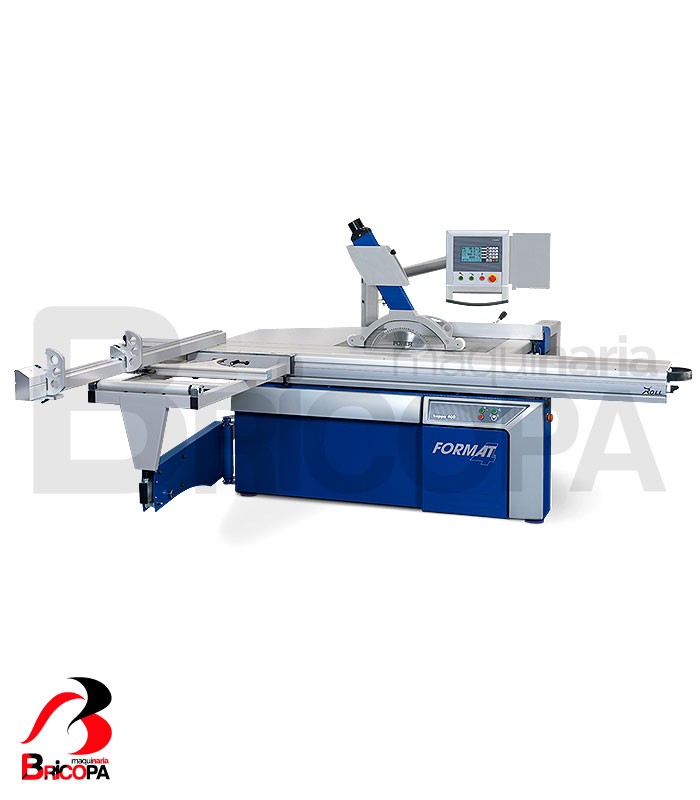

SLIDING TABLE SAW KAPPA 400 X-MOTION FORMAT-4
SLIDING TABLE SAW Kappa 400 x-motion has a cutting length of 2500mm, a cutting width of 800mm and a cutting height of 133mm. It has control panel: x-motion, sliding carriage patented "X-Roll" with 10 years warranty, 9x99 programming places + succession of cuts.
SLIDING TABLE SAW Kappa 400 x-motion FORMAT-4
El Formato-4 kappa 400 x-motion convence en cada área. El control de triple eje, la unidad de sierra circular para trabajo pesado, la mesa deslizante X-roll, la facilidad de uso extrema, la alta precisión y la increíble relación calidad-precio se combinan para formar una de las mejores sierras de mesa deslizante del mercado.
TECHNICAL DATA
Electrical setup
- 3x 400 V.
- 50 Hz.
- 7,5 HP (5,5 kW) S6 / 40%
- Star-delta start
- Timer for operating hours

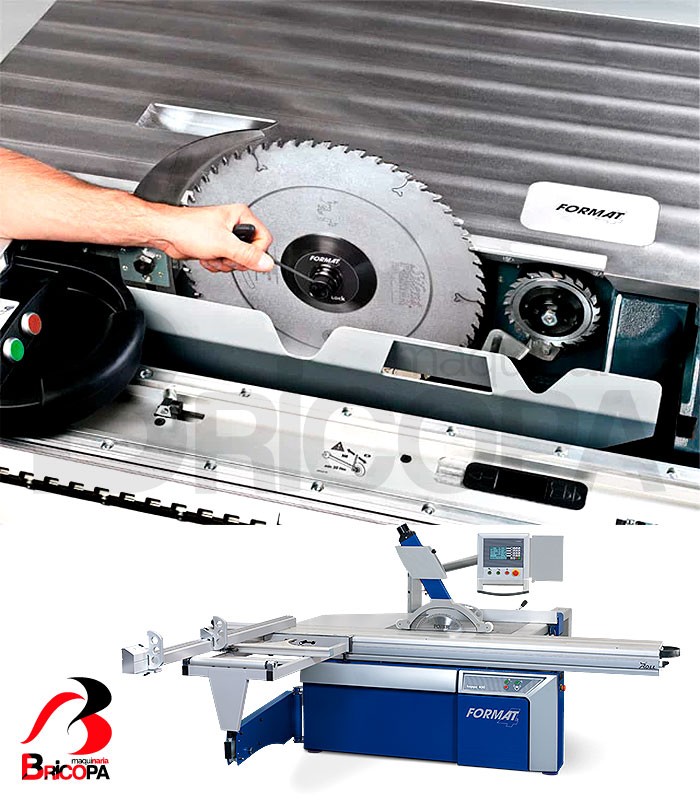

Saw unit
- Saw unit tilts 90°–45°
- Electronic angle adjustment with digital read-out
- Electronic height adjustment with digital read-out
- Saw blade diameter 250–400 mm, max cutting height 133 mm
Scoring unit
- Flange set for scoring blades with a 22 mm arbor instead of 20 mm for the “Classic” and “Automatic” scoring units
Control systems
- kappa x-motion control with 5.7” (145 mm) TFT-touch screen at eye level
Cutting width and rip fence
- Rip capacity 800 mm with fine adjustment
- Overhead saw guard, cover for 90° and cover for mitre cuts, height adjustable and can be swung away from working área
Sliding tables anodized, “x-roll” guiding system
- Sliding table “X-Roll”, cutting length 2500 mm with edging shoe.shoe
Outrigger table and crosscut fence
- 1500 mm outrigger table with 3200 mm crosscut fence
- 3200 mm crosscut fence, moves from 90°–45° with 2 crosscut stops as standard
Characteristics for information only. The technical details are not legally binding. Contact us for further information.
