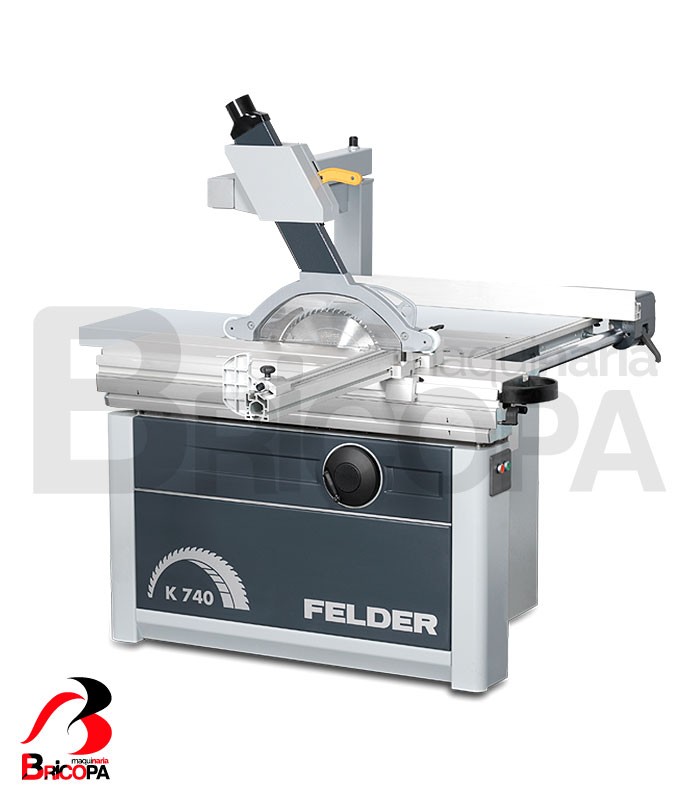

SLIDING TABLE SAW K 740 FELDER
The SQUARING MACHINE K 740 FELDER has a 7,5 HP engine. The saw unit has a cutting width of 800mm with a blade inclination of 45 to 90 degrees, a maximum cutting height. 140 mm and a sliding carriage of 1300mm.
SLIDING TABLE SAW K 740 FELDER

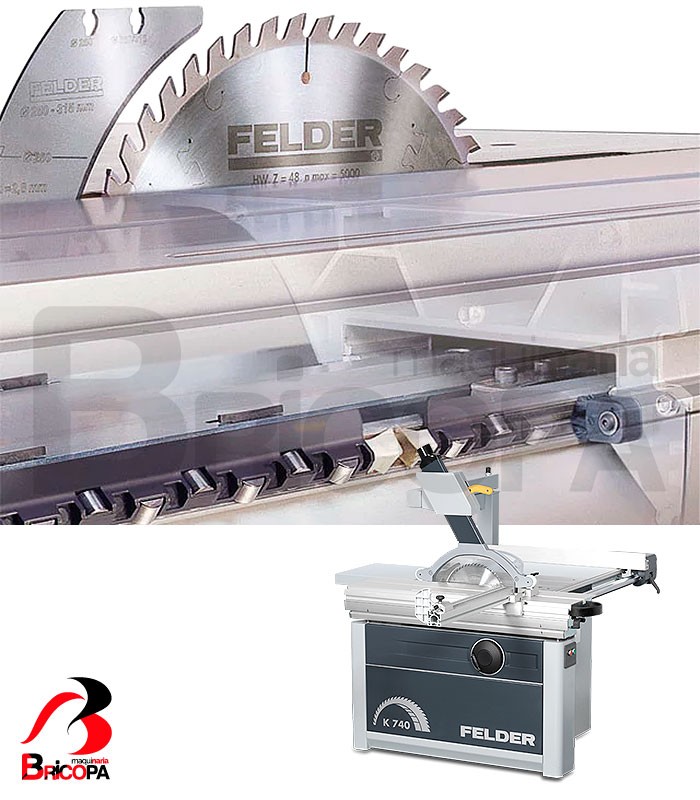

The new FELDER K 740 convinces with the combination of performance and comfort in a space-saving, solid design. The machine is characterized by a large and powerful circular saw unit with a maximum cutting height of 140 mm when using a Ø 400 mm saw blade. It is also possible to use an electrically driven scoring unit with a Ø of 120 mm in combination with a Ø 315 mm main saw blade. Even cuts through materials with sensitive surfaces become a breeze.
TECHNICAL DATA
Electric system
- 3x 400 V, motor voltage.
- 50 Hz motor frequency.
- 7.5 hp (3.0 kW).

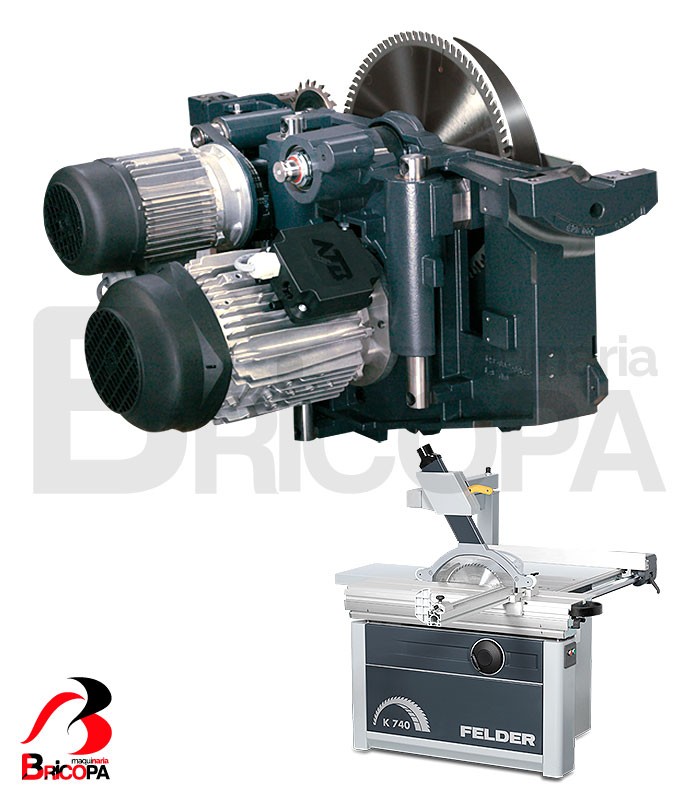

Circular saw and incisor equipment

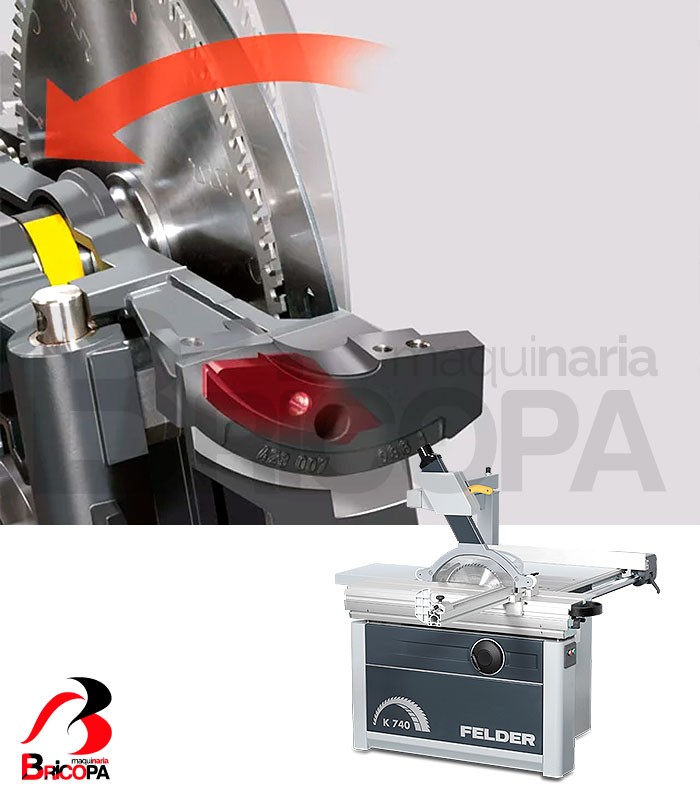

- Saw with inclination 90-45 °, max 40 mm
- Cutting width 800 mm with the total length of the table, width min. transport 1000 mm

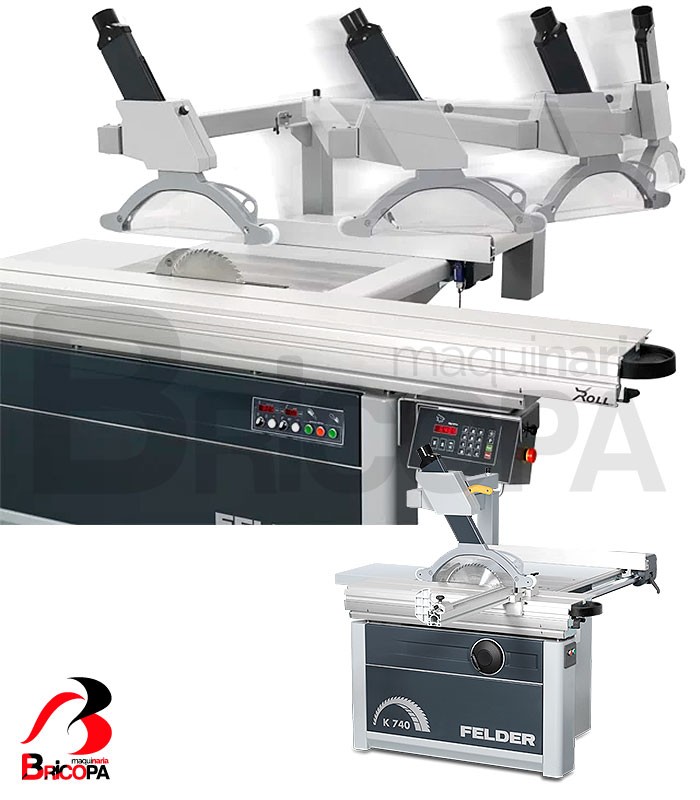

- Upper circular saw protection for cutting width of 800/1250 mm, adjustable from the working field
Scrollable carriage of formats and to glean
- Movable car M, long. cutting 1300 mm.

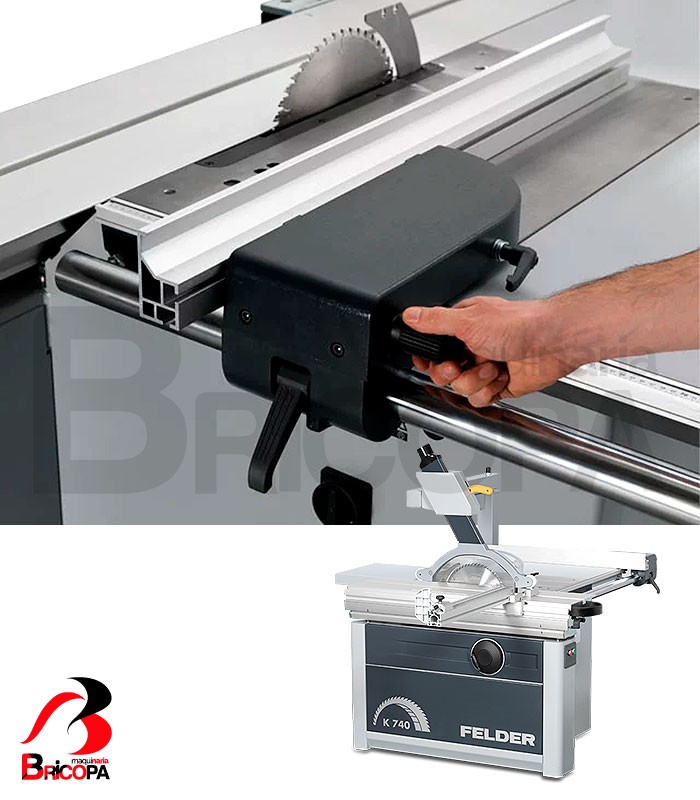

Flag cart and carriage ruler

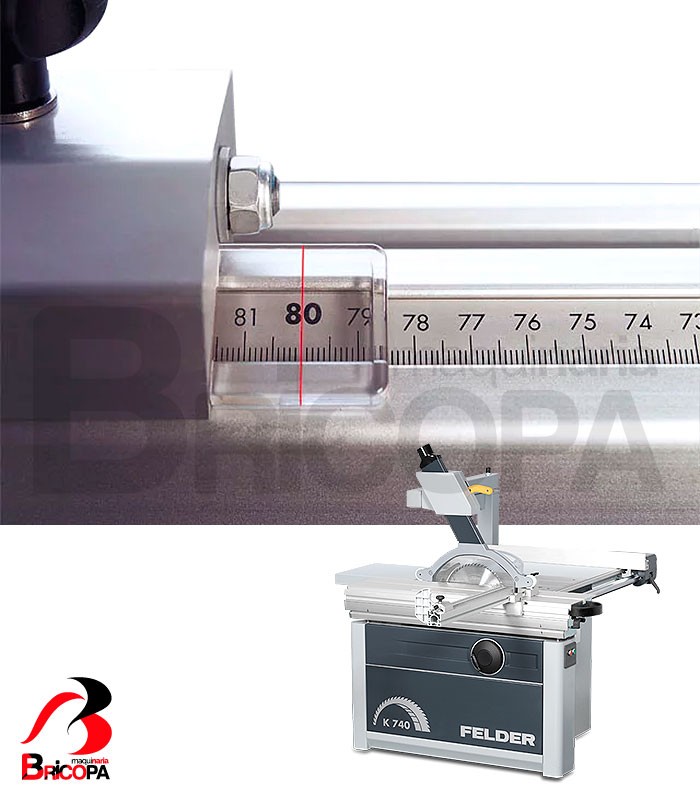

- 1,100 mm carriage ruler for all types of carriage.
General
- Working height in mm: 890
- Transport width min. in mm: 1000

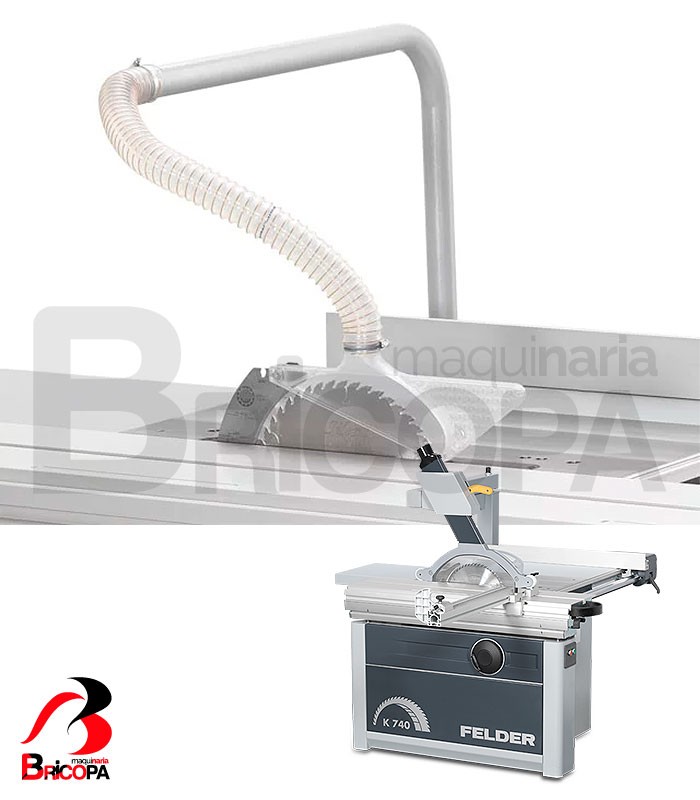

- Diameter of the suction socket in mm Circular saw / Circular saw protector (upper): 120/50 (80).
- Weight in Kg (with medium equipment): 500
OPTIONAL
- Electric angle and height adjustment for circular saw with LED indicator.

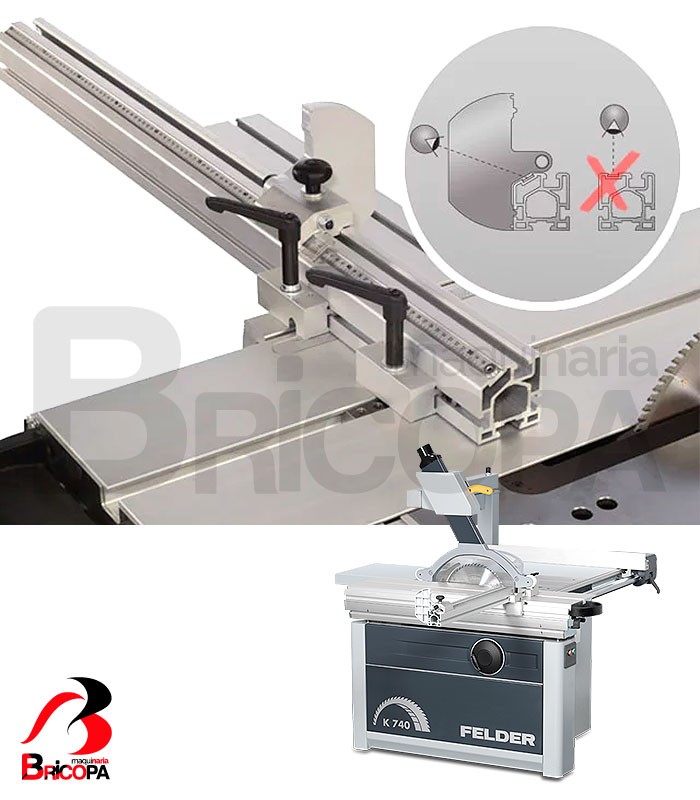

- Circular saw ruler with precision adjustment.

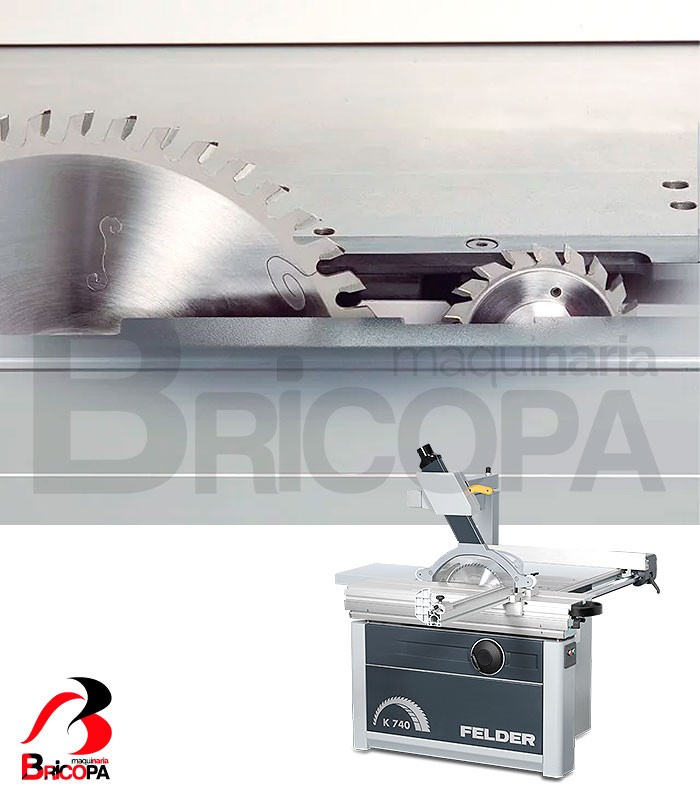

- Incisor aggregate with electric transmission, Ø-100 mm with main saw blade Ø-300 mm.
Characteristics for information only. The technical details are not legally binding. Contact us for further information.
