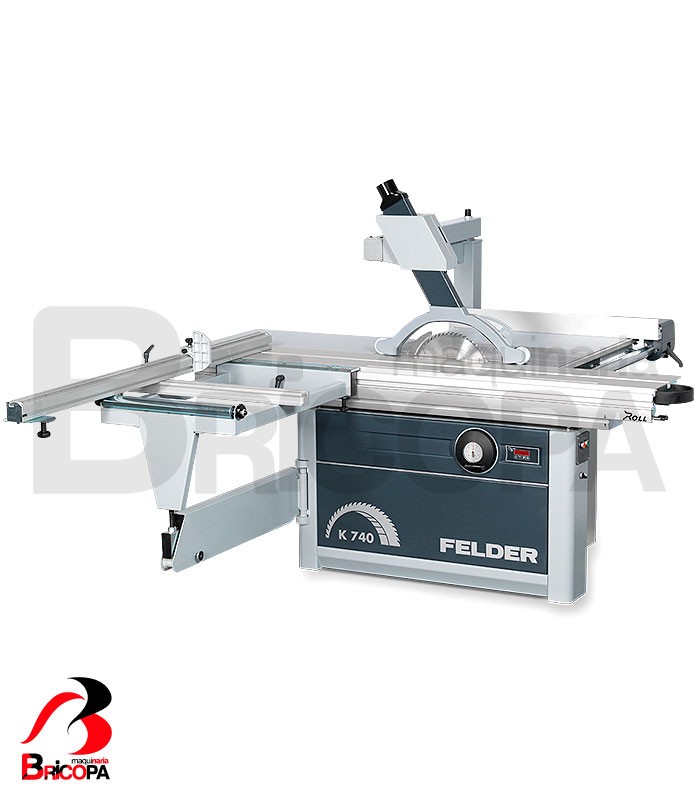

SLIDING TABLE SAW K 740 PROFESSIONAL FELDER

The SQUARING MACHINE K 740 PROFESSIONAL FELDER has a 7,5 HP engine. The saw unit has a cutting width of 800mm with a blade inclination of 45 to 90 degrees, a maximum cutting height. 140 mm and a sliding carriage of 1300mm.

More details

K 740 PROFESSIONAL FELDER
New machinery

Technical description

SQUADER K 740 PROFESSIONAL FELDER

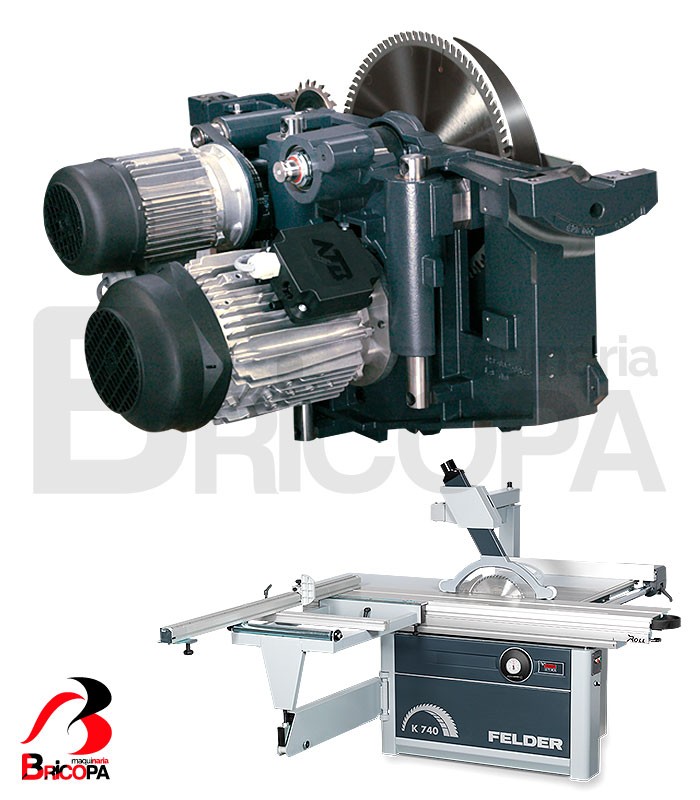

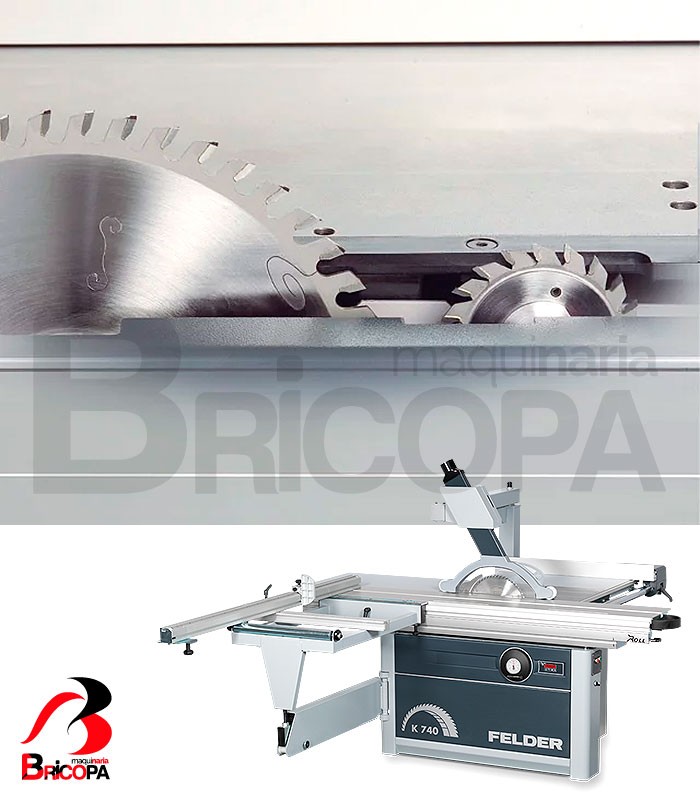

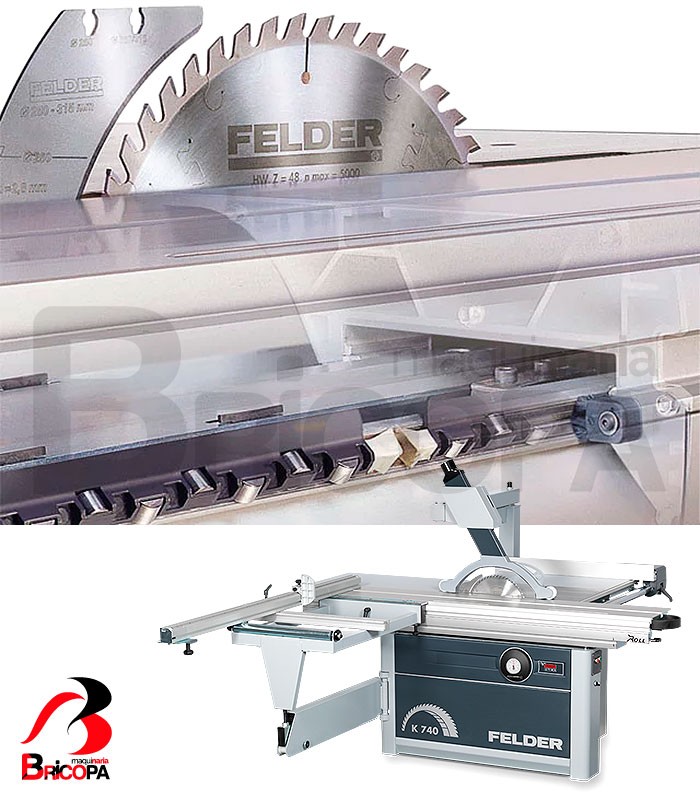

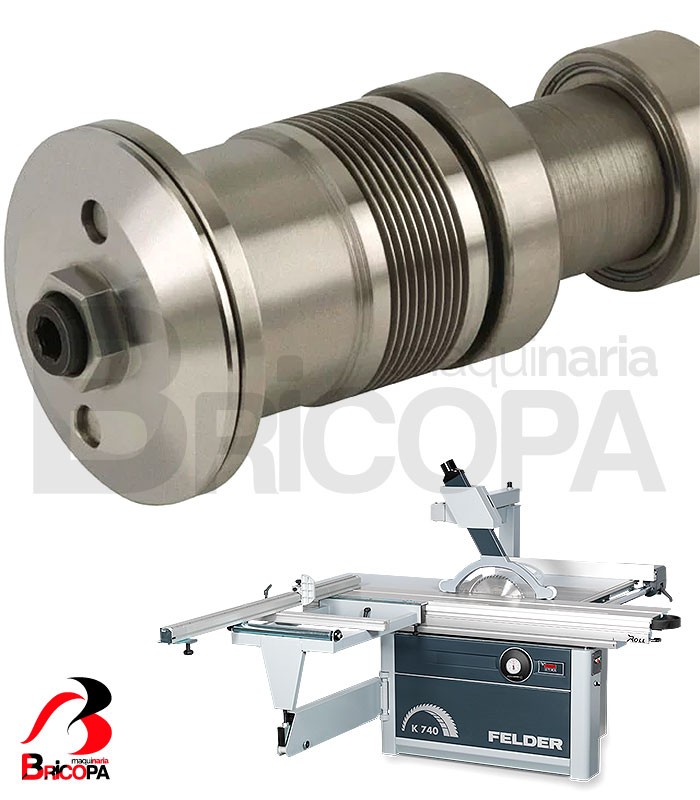

The new FELDER K 740 meets the high demands of performance and ease of use and the desire for a compact design is fulfilled without problems. The advanced squaring unit with patented "Easy-Glide" rotating segment guide impresses with a cutting height of 140 mm when using a cutting disc of Ø 400 mm. The 120 mm diameter electrical incision unit can be used in combination with a Ø 350 mm cutting disc.

TECHNICAL DATA

Electric system

  • 3x 400 V, motor voltage.
  • 50 Hz motor frequency.
  • 7.5 hp (3.0 kW).

Circular saw and incisor equipment

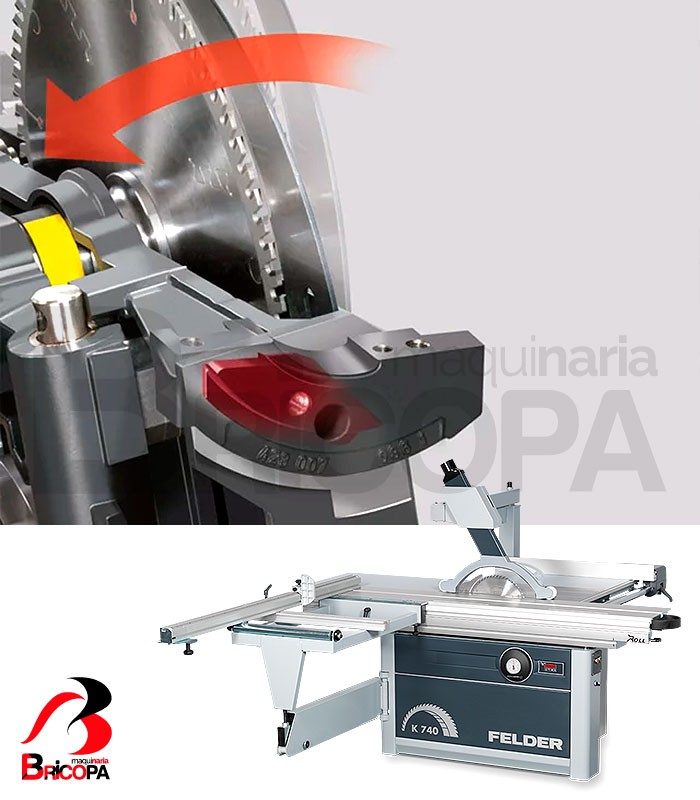

  • Saw with inclination 90-45 °, max 140 mm
  • Cutting width 800 mm with the total length of the table, width min. transport 1000 mm

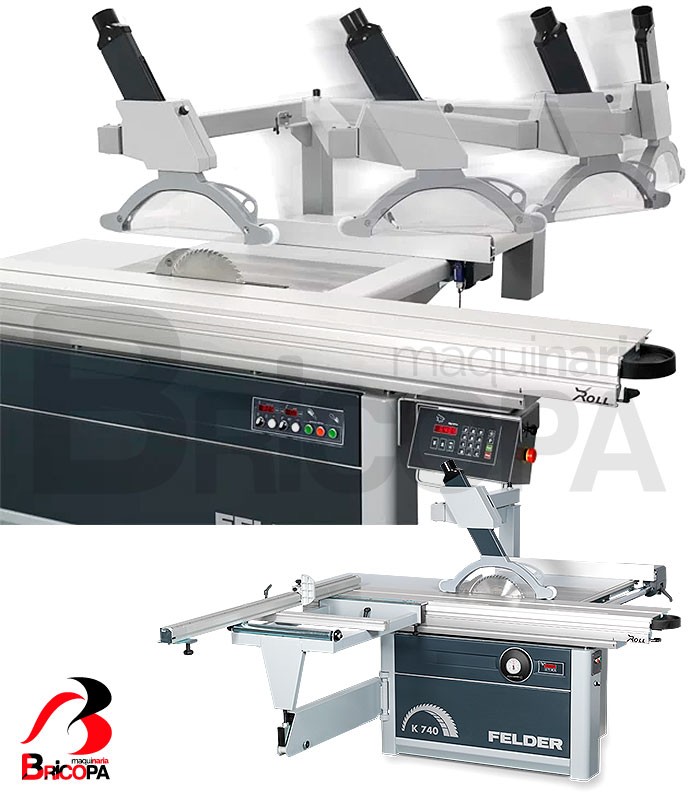

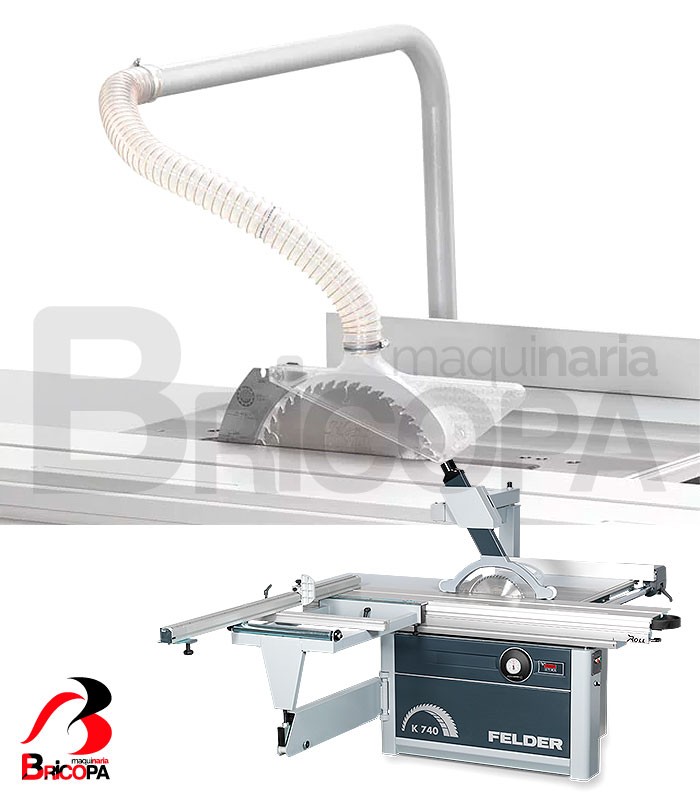

  • Upper circular saw protection for cutting width of 800/1250 mm, adjustable from the working fieldScrollable carriage of formats and to glean
  • Movable car M, long. cutting 2050 mm.
  • Anodized scrollable car

Flag cart and carriage ruler

  • 1100 flag carriage for movable car 1300–2050 mm

General

  • Working height in mm: 890
  • Transport width min. in mm: 1000
  • Diameter of the suction socket in mm Circular saw / Circular saw protector (upper): 120/50 (80).
  • Weight in Kg (with medium equipment): 560

OPTIONAL

  • Electric angle and height adjustment for circular saw with LED indicator.

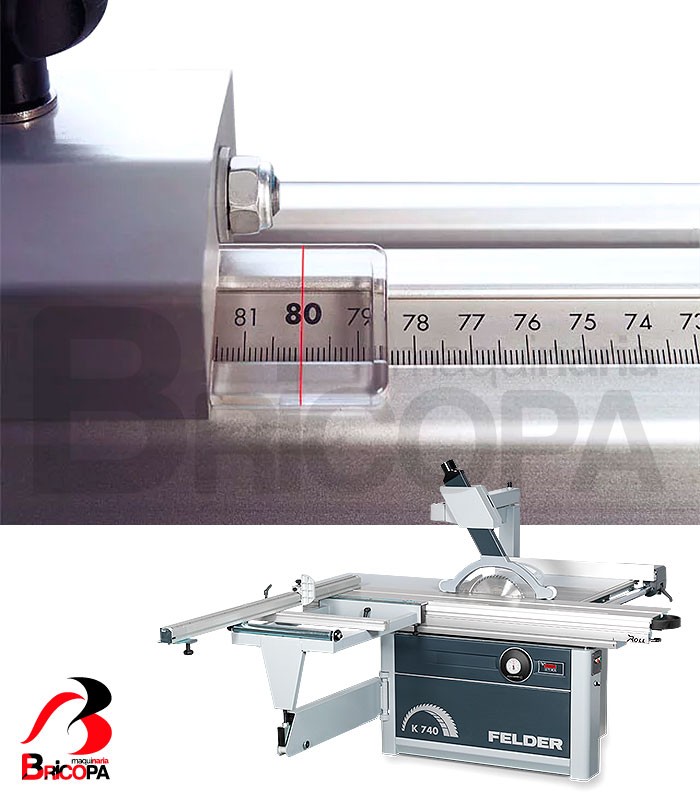

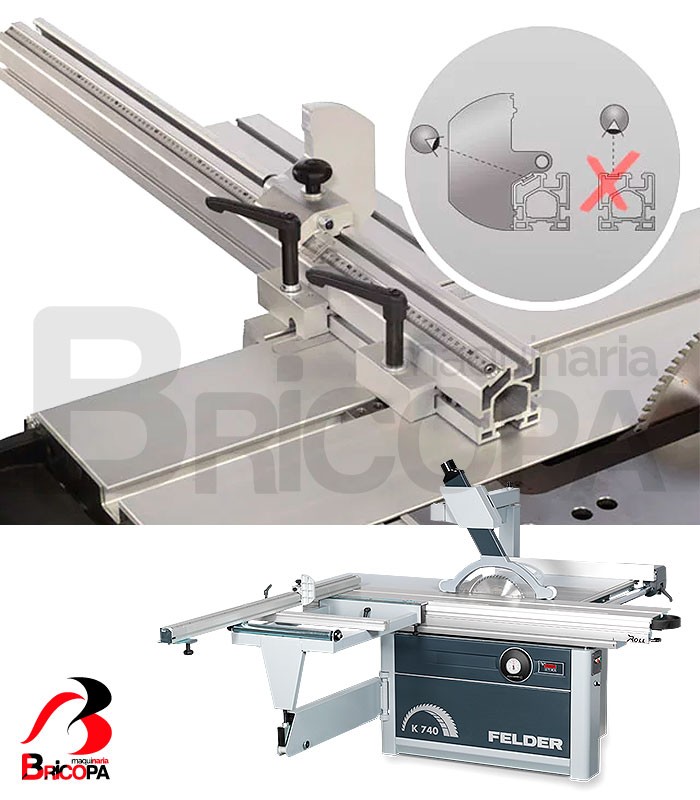

  • Circular saw ruler with precision adjustment.

Characteristics for information only. The technical details are not legally binding. Contact us for further information.
