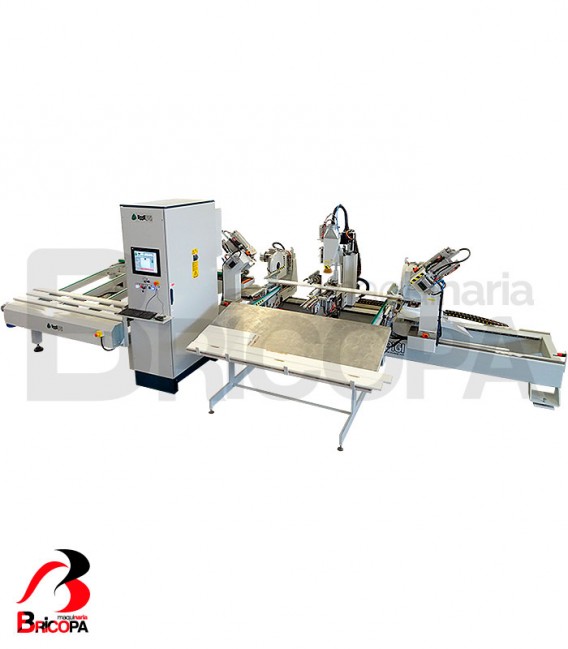

FRAME DOOR MILLING MACHINE HORIZON PLUS ESSEPIGI

MACHINE FOR FRAME DOOR HORIZON PLUS ESSEPIGI

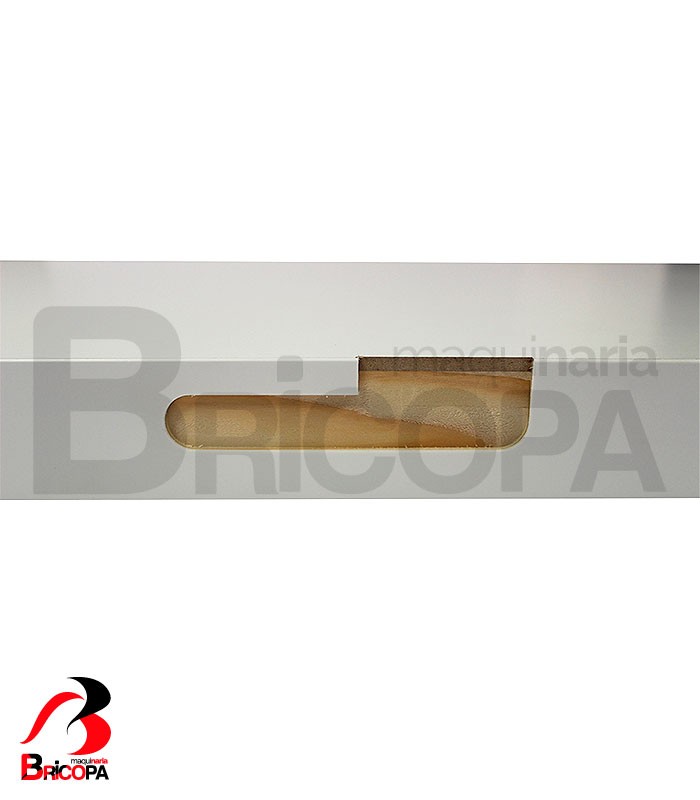

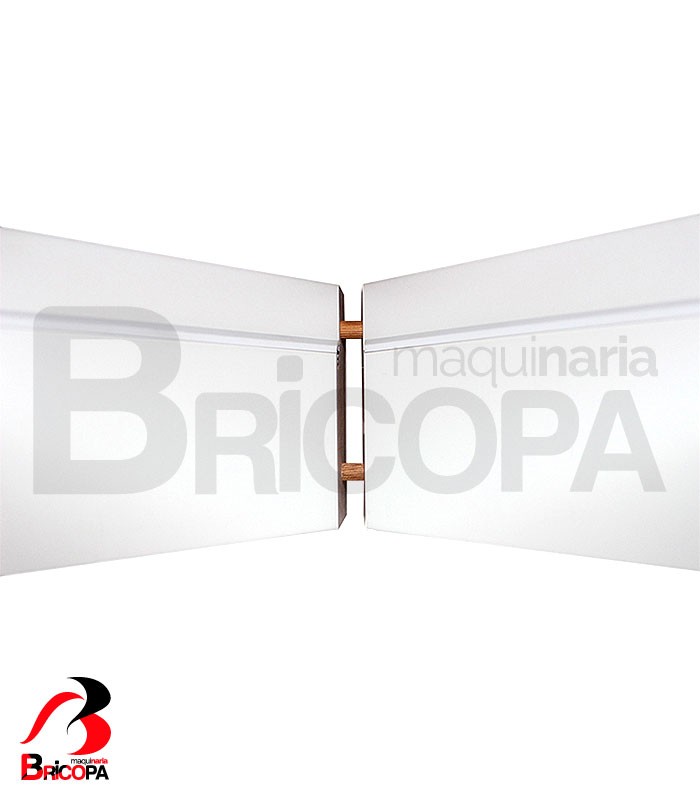

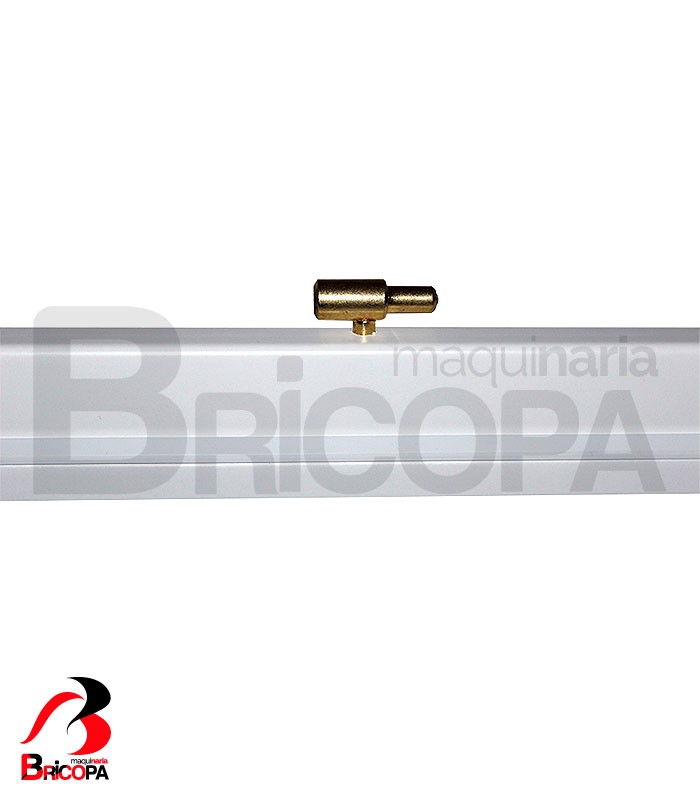

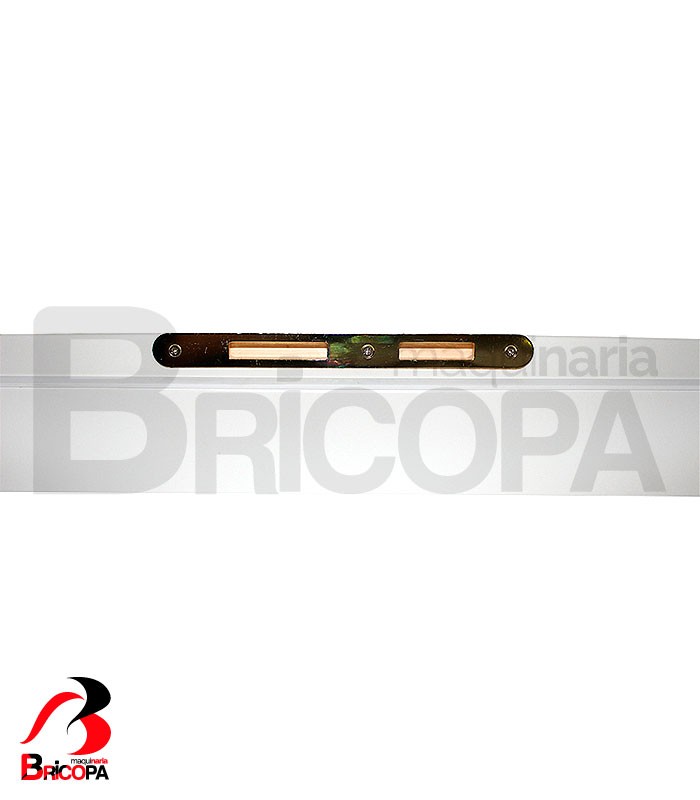

Machine for the complete processing of door frames (jambs) with a 45 ° joint and fully electronic management. The machine performs 0 ° - 45 cutting operations, milling the counterplate / hinge seats and the slot in the bottom of the jamb to insert the gasket spring. The machine is managed by an industrial PC that automatically controls the work cycle and all movements through 4 axes controlled with direct motors. All work is done on high quality ball recirculating blocks. The reference stops on the underside of the jamb, for better mounting accuracy. A direct network connection is possible via PC

TECHNICAL DATA

• Structure of very thick sheet metal with special hardened and ground steel guides, the mobile right slide the mobile right slide moves through a cage with ground steel spheres, through a brushless technology gearmotor, using a rack and pinion.

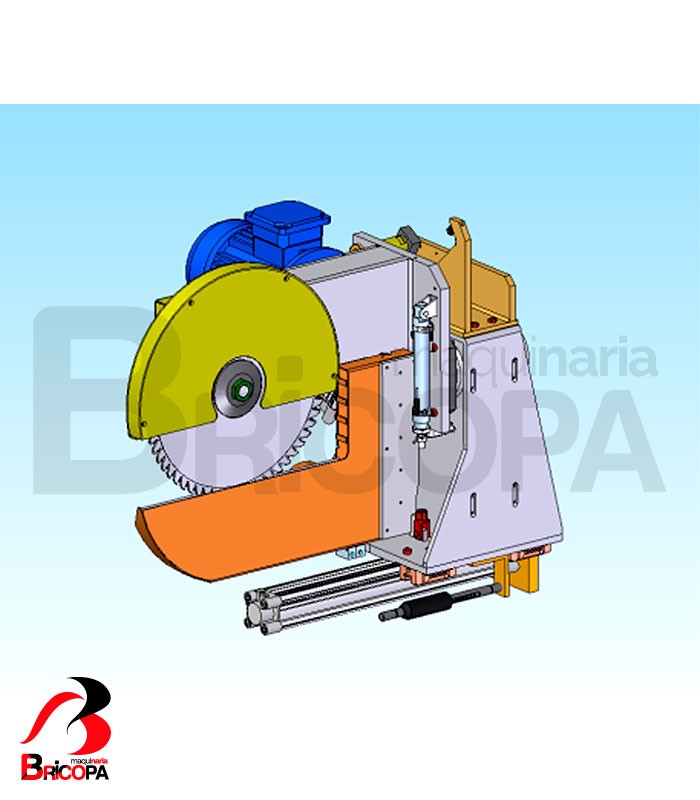

• 2 precision cutting groups with Ø 400 mm circular cutting disc, controlled by 3 kW motors. Automatic angle 0 ° - 45 °. The cutting advance of each saw unit is pneumatically controlled. Chutes for the discharge of waste (max. Excess 200 mm. per side).

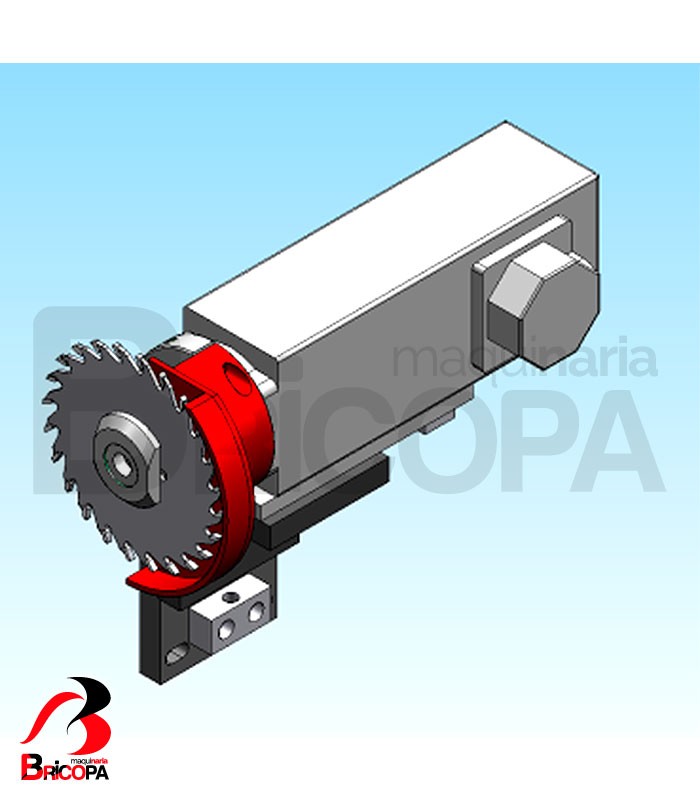

• 2 lower motors (right and left) to run the 45 ° side frame. Group consisting of a 2 kW motor with a Ø 120 mm blade. Vertical activation activation / deactivation system.
• Central milling group with 3 interpolated axes to carry out all work on hinges and locks.

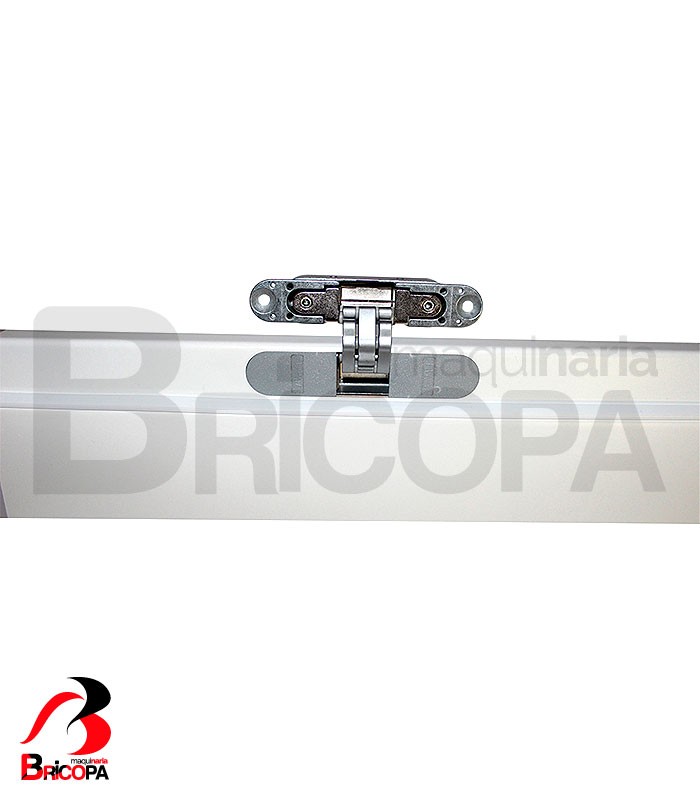

o   Vertical milling unit with 2 kW motor that rotates at 18,000 rpm with ER25 collet with electronic control to create counter-lock, bolts, or concealed hinges in the door frame. Ø 120 mm mouth. by dust aspiration.

o   Horizontal milling unit with 2 kW motor at 18,000 rpm with ER25 collet to mill the lock, hinge or hidden hinge on the door. Ø 80 mouth for dust aspiration.

o   4 series of rollers with vertical pressers pushed from bottom to top against the upper fixed roller by reference on the finished side of the frame; horizontal pressers. The rollers guarantee, with the 2 lateral supports, the straightening of the piece in 3 points and the support of the bar in all working conditions.

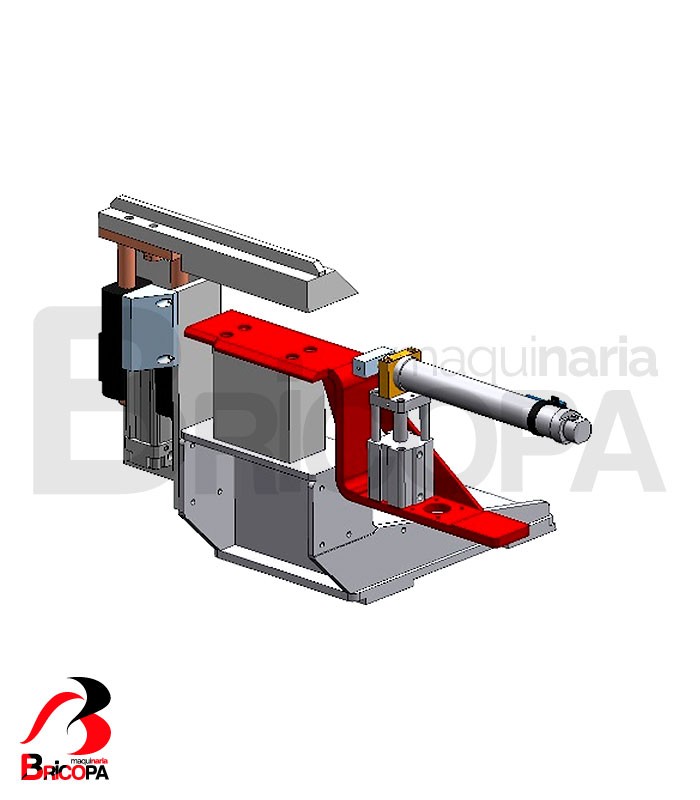

• Reference system of the workpiece and locking system at the bottom (bottom side). A 3-point vertical and horizontal clamping system ensures perfect straightening of the workpiece. The system consists of 2 side pallets and a central mobile attached to the central carriage. The reference will be from below to ensure a correct groove / groove for the connecting spring, at the bottom of the profile.
• The electrical system is equipped with high-quality components, which are located inside an electrical cabinet
• Industrial PC in an airtight, dust-proof container with a color LCD screen and alphanumeric keyboard. The computer manages all the functions of the machine and all the electronic axes for the automatic management of the operating groups

Characteristics for information only. The technical details are not legally binding. Contact us for further information.
