DOOR MILLING MACHINE DOORMATIC ESSEPIGI

DOOR MILLING MACHINE DOORMATIC ESSEPIGI

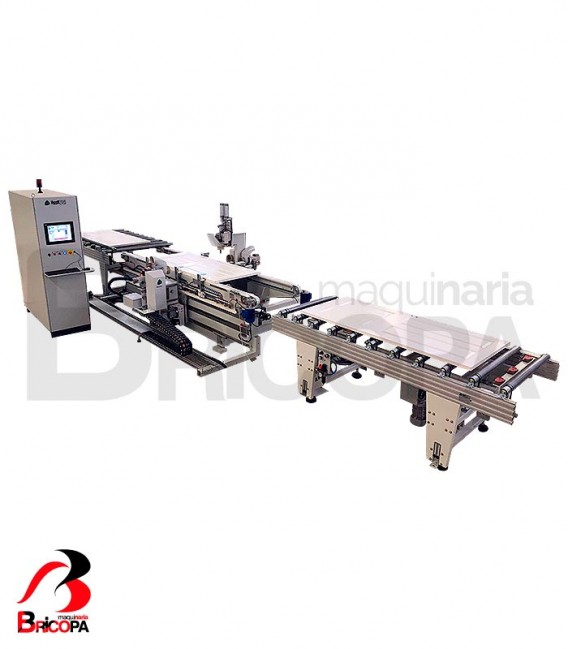

Automatic machine to work the seat of the lock and the hinges on the door panel. The machine consists of 2 benches, one fixed to the right (depending on the direction of entry of the panel) and one mobile to the left, adjustable, depending on the width of the door, by means of an electronically controlled motor. On the fixed bench, the hinge side is machined (milling for hidden hinge seats, knob, etc.). In the mobile bench, the machining of the lock side is provided (milling of the box and plate, key holes and handle). Industrial PC controlled machine. All axes are controlled by electronically controlled Brushless motors. All transmissions take place by recirculation of ground balls. Power panels from left to right, viewed from the hinge side.

TECHNICAL DATA

• Machine structure in robust electro-welded carpentry, consisting of 2 benches, one fixed (hinge side) and the other mobile (lock side). Transverse adjustment with automatic Y axis by means of an electronically controlled Brushless gearmotor and movements in large recirculating ball runners, for quick configuration according to the width of the panel.

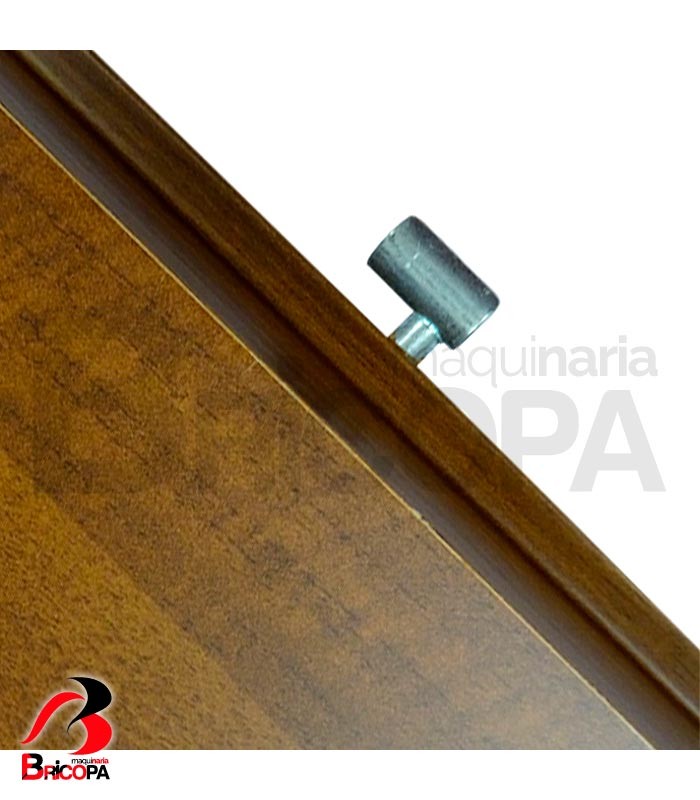

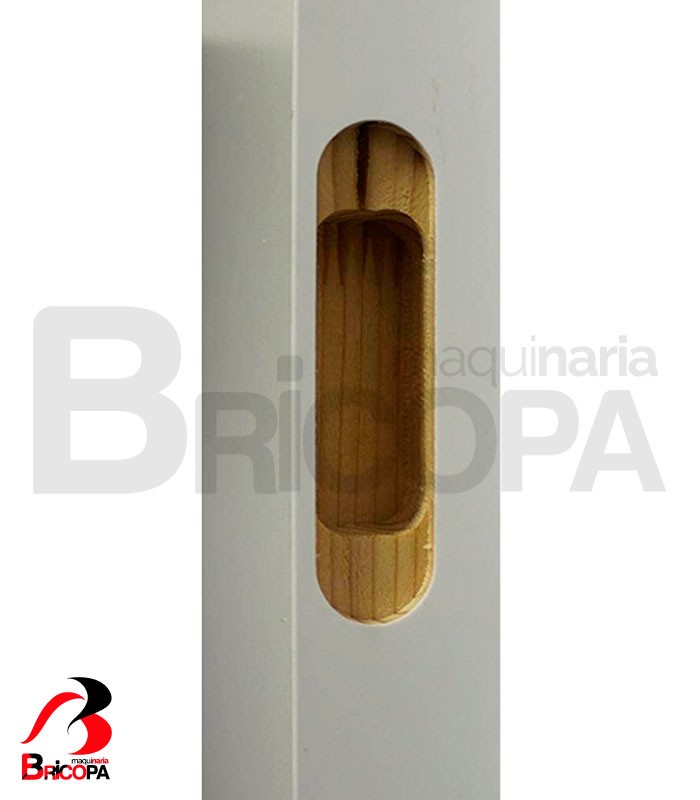

• 2 groups are installed in the fixed bench for the processing of the hinges with 3 axes controlled by PC. The operating units are installed on a mobile trolley with longitudinal (X axis), transverse (Y axis) and vertical (Z axis) movement, all interpolated and controlled by Brushless motors. Sliding on recirculating ball bearings. Each group carries a horizontal milling unit for hidden hinge or knob seats, with 2 kW electro-spindle that rotates at 18,000 rpm with ER25 collar and negative rake finishing tool.

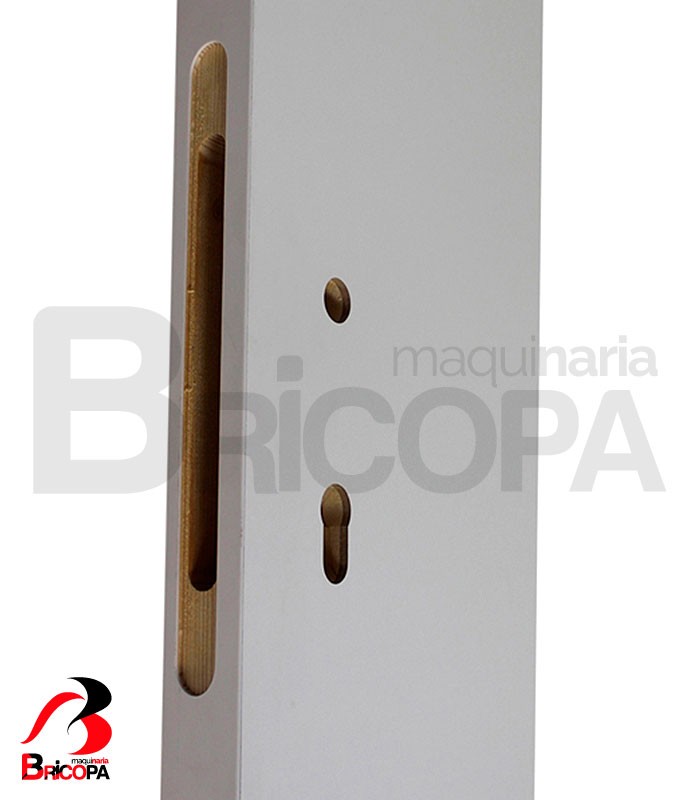

• The group for machining the lock with 3 axes controlled by PC is installed in the mobile bench. The operating units are installed on a mobile trolley with longitudinal (X axis), transverse (Y axis) and vertical (Z axis) movement, all interpolated and controlled by Brushless motors. Sliding on recirculating ball bearings.

o   5.5 kW horizontal electro-spindle that rotates at 18,000 rpm with ER32 collet for lock execution, complete with a combined positive-negative cutting tool, for quick extraction and a good level of finish.

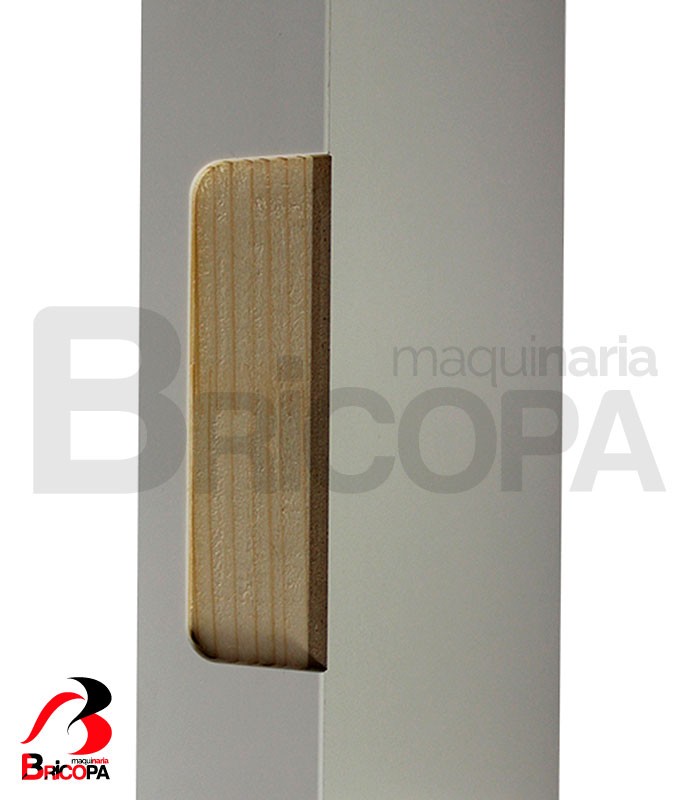

o   Horizontal electric spindle to make the counterplate, installed on the mobile side and with a power of 2 kW at 18,000 rpm. - ER-25 clamp to hold a tool with specific negative relief for a high level of finish.

o   3 kW vertical electro-spindle that rotates at 18,000 rpm with ER25 collet to mill keys and handle holes.

o   Panel transfer system with 2 wide toothed belts that slide inside the anti-friction material guides. The timing belts are of high quality, long life and inextensible with steel threads; command through 2 independent electronically controlled gearmotors to guarantee the panel input-output speed and precise support at stops.

o   2 reference stops with electronically controlled axis (for a length range of 2,600 mm to 1,700 mm) managed by PC to center the processing operation with the upper references of the door panel. Quick installation by motorized screw.

o   Automatic movement of the 3 length clamps on the fixed face to avoid limitations in the positioning of the hinges. The movement is 250 mm controlled by a pneumatic cylinder through PC.

OPTIONALS

• Incoming panel width control system.
• Probe for tolerance compensation in panel width direction
• 0.75 kW electro-spindle with a 3 mm tip to finish the hinge seats and pre-drilled holes.

Characteristics for information only. The technical details are not legally binding. Contact us for further information.
