WIDE BELT SANDER FINISH 1102 perform FELDER

The WIDE BELT SANDER FW 950 perform FELDER has a sanding height of 3-170mm, a sanding width of 1100mm. The speed of advance is adjustable in continuous: 2,5-18 m / min. It has added contact rollers, fine sanding unit with segmented electropneumatic skate, with a segment width of 25 mm.

More details

FINISH 1102 perform FELDER
New machinery

Technical description

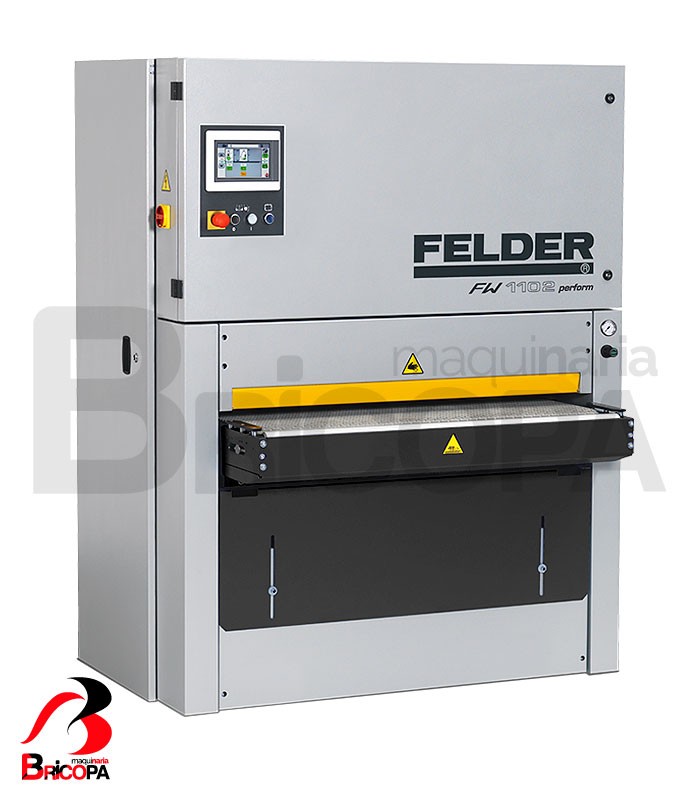

WIDE BELT SANDER FINISH 1102 FELDER

Con sus técnicas de trabajo altamente modernas, la industria del mueble eleva el listón a niveles casi inalcanzables para los talleres de carpintería. Sin embargo, para seguir siendo competitivos, las piezas de trabajo deben procesarse perfectamente durante todas las etapas de trabajo. Las máquinas de lijar de banda ancha Felder FW 950 classic y FW 1102 classic hacen que el ingreso a la carpintería profesional sea asequible e impresiona con las soluciones de sistemas de alta calidad que ya están en sus versiones estándar.

TECHNICAL DATA

Electrics

  • 3x 400 V motor voltage.
  • 50 Hz motor frequency.
  • Star-delta start.

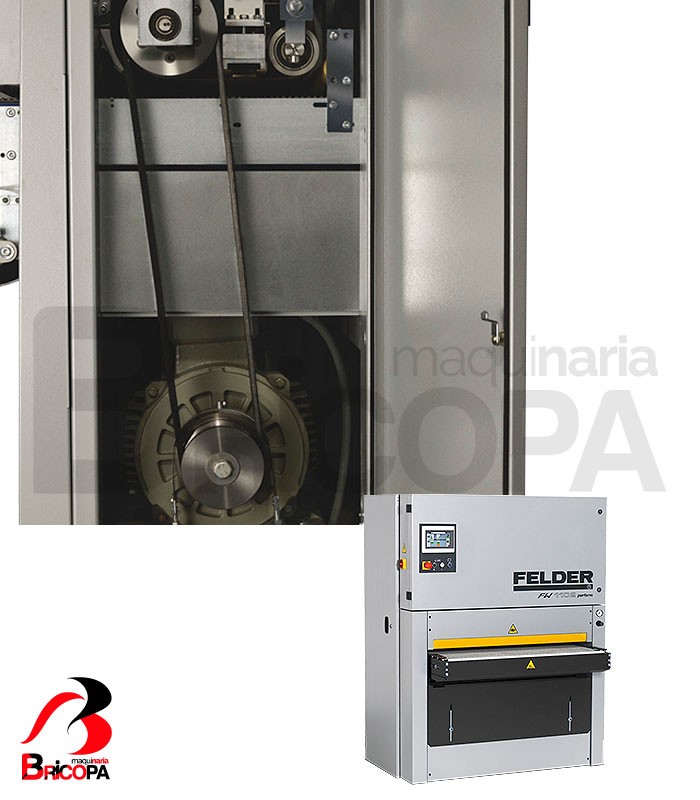

  • 20.0 HP (15.0 kW) sanding motor with sanding module
  • Ammeter for monitoring the electrical load on the units.
  • Automatic sanding-belt brake.

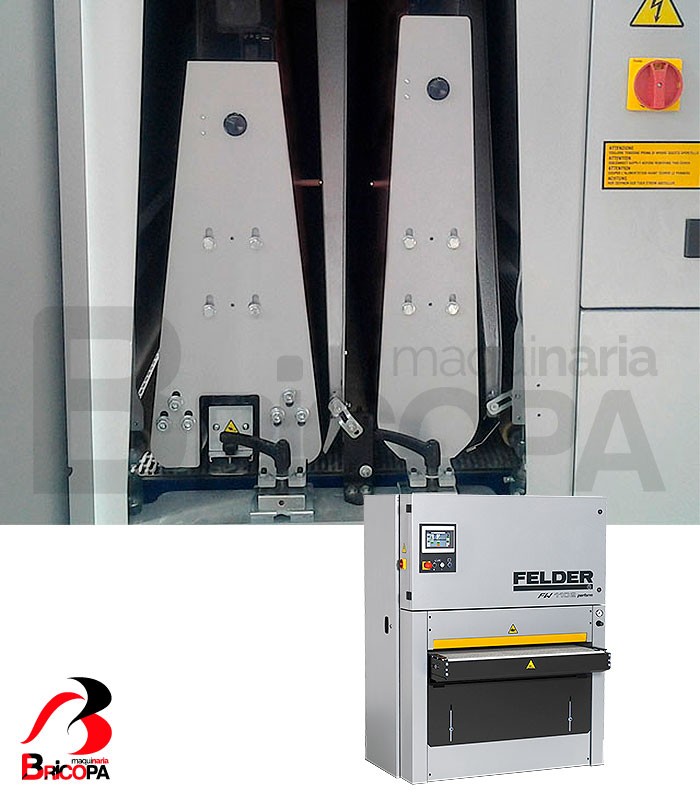

Sanding unit and sanding cushion

  • Contact-roller unit, hardness of the contact roller C 85° Shore, Digital grain compensation can be chosen from the control panel
  • Sanding pad unit (sanding pad)
  • Electro-pneumatic sanding cushion EP
  • Sanding width 1100 mm
  • Sanding height 3–170 mm

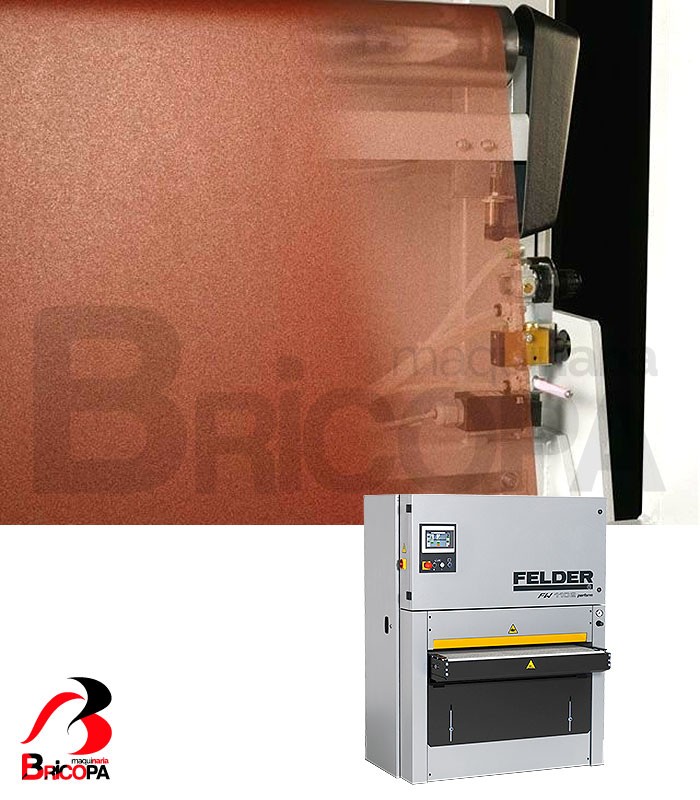

  • Sanding belt is oscillated electro-pneumatically
  • Electronic run-off protection for the sanding belt
  • Pneumatic tensioning of the sanding belt
  • Sanding belt 1110 x 1900 mm (width x length)

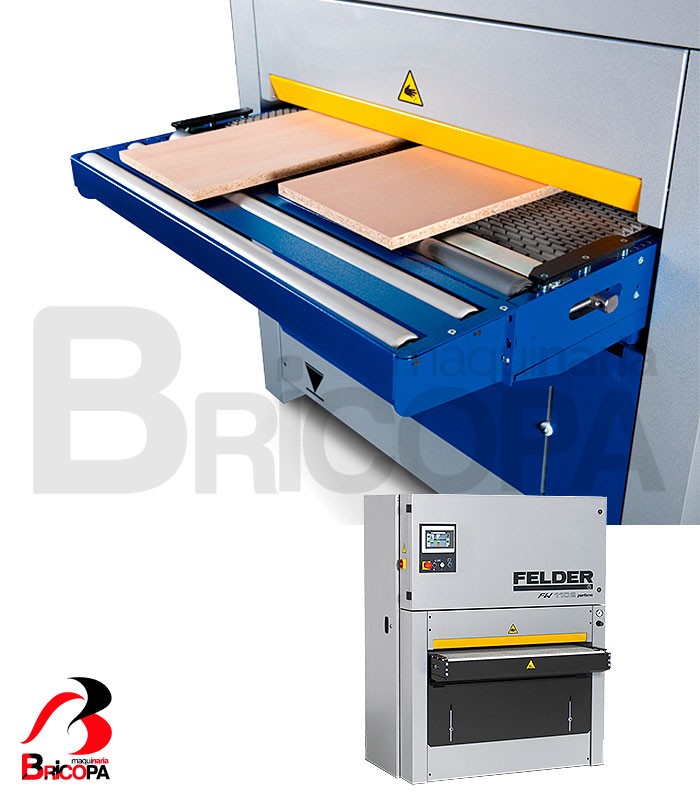

Feeder table

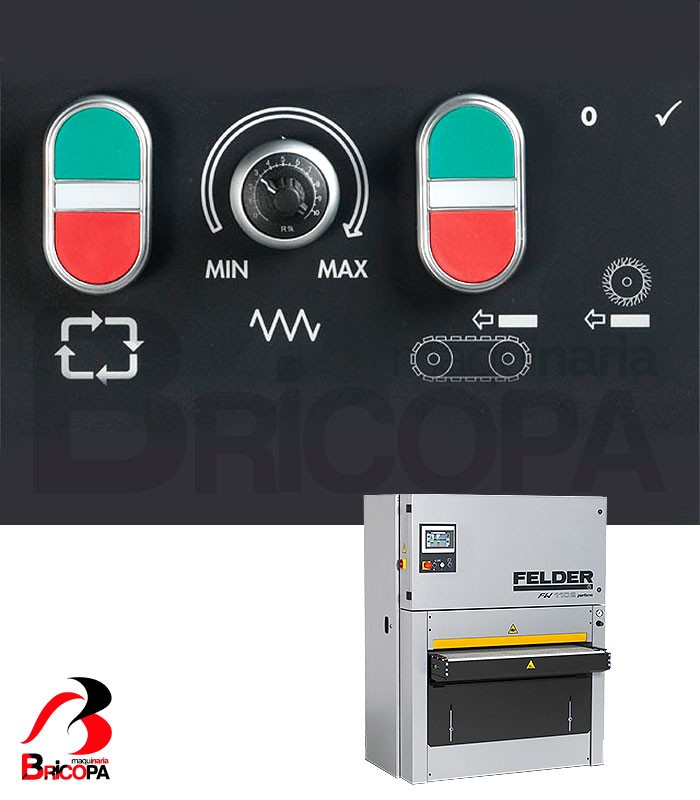

  • Electronic height adjustment of the feed table in 0.1 mm incremental steps from the control panel
  • Digital display shows the height of the feeder table
  • Inverter controlled variable feed speed of 2.5-10 m/min, selected from the control panel
  • Mechanical vibration-absorbing rubber pressure rolls
  • Hand guard and over-thicknessing protection for the workpiece

General

  • Extraction connection Ø in mm: 2x 160
  • Machine packing dimensions in mm (lenght x width x height): 1600 x 1550 x 2050
  • Weight, kg (with average equipment): 1150

Characteristics for information only. The technical details are not legally binding. Contact us for further information.
