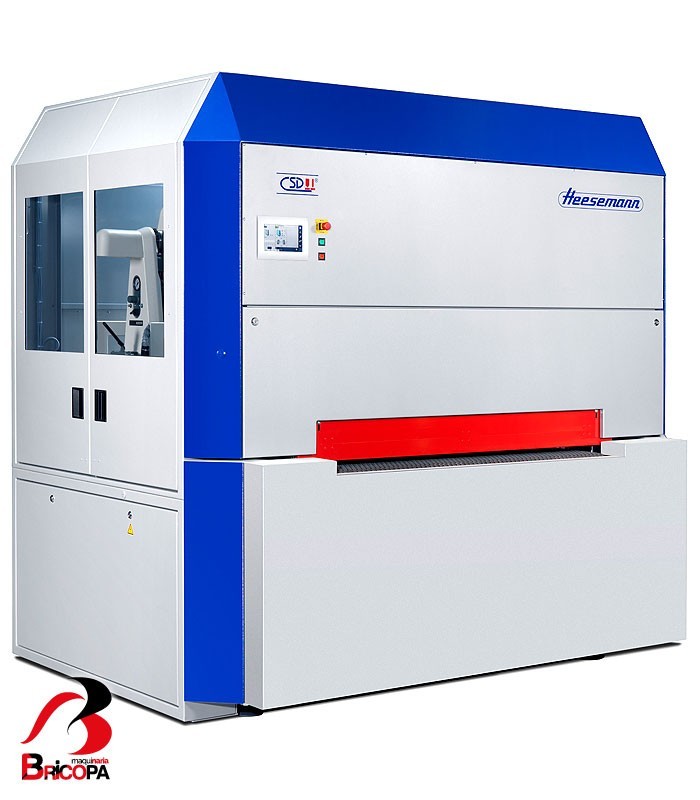

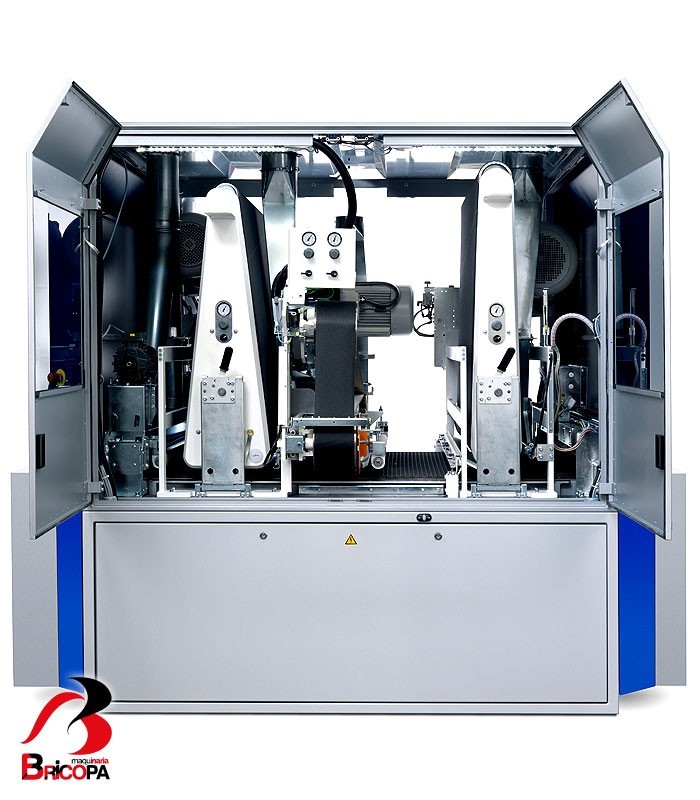

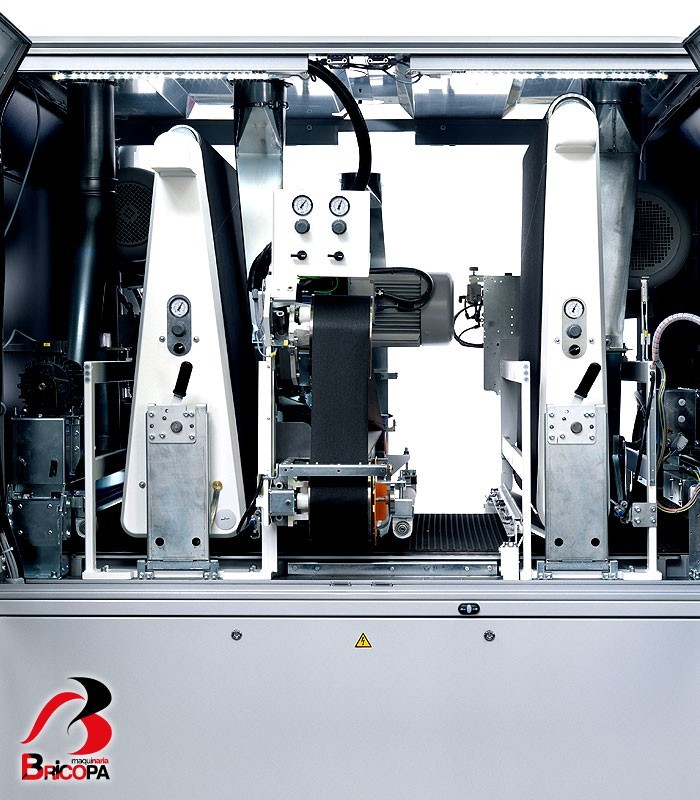

SANDING MACHINE HSM 2 / 3
The HSM sanding machine serie allows a maximum sanding width of 1300 mm, with a speed feed from 3 to 15 metres per minute and nine standard configurations of 2 or 3 units sanding machines are available.
HSM 2 / 3 HEESEMANN
New machinery
SANDING MACHINE HSM 2 / 3 HEESEMANN
The different configurations of HSM2/3 covers all possible sanding tasks,be it solid wood processing, veneer sanding or lacquer or high-gloss sanding.
FIELDS OF APPLICATION
- Solid wood and panel processing
- Veneer sanding
- Lacquer and high
- Gloss sanding
TECHNICAL DATA

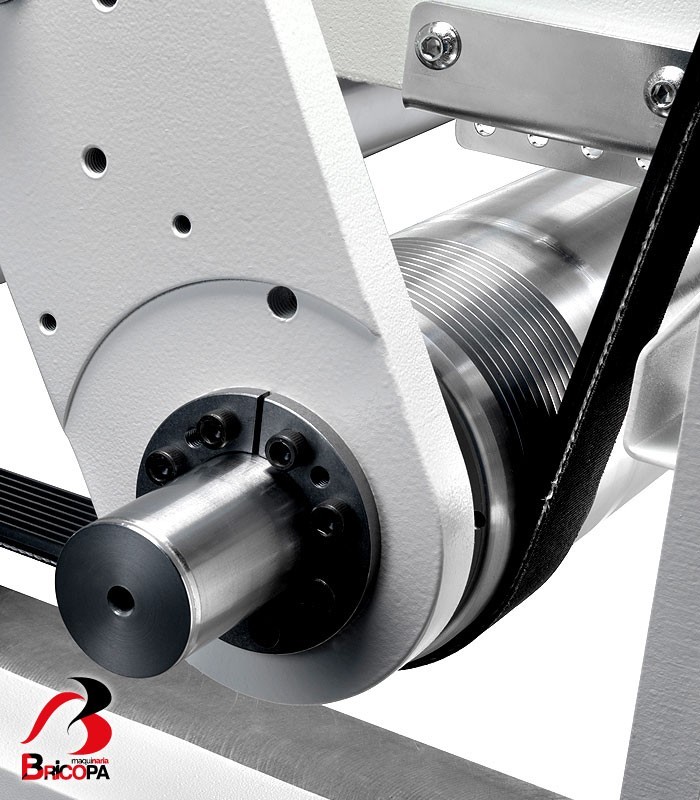

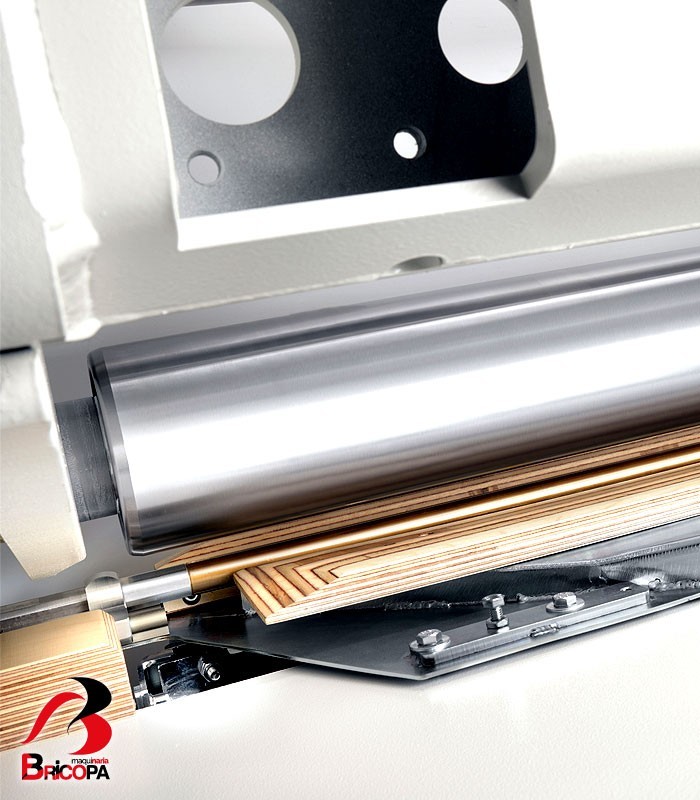

Contact roller (R): diam. 200 mm
- (Sanding belt) Dimensions (LxA mm): 2150 x 1350 / 2620 x 1350
- Belt speed: 24 m/s

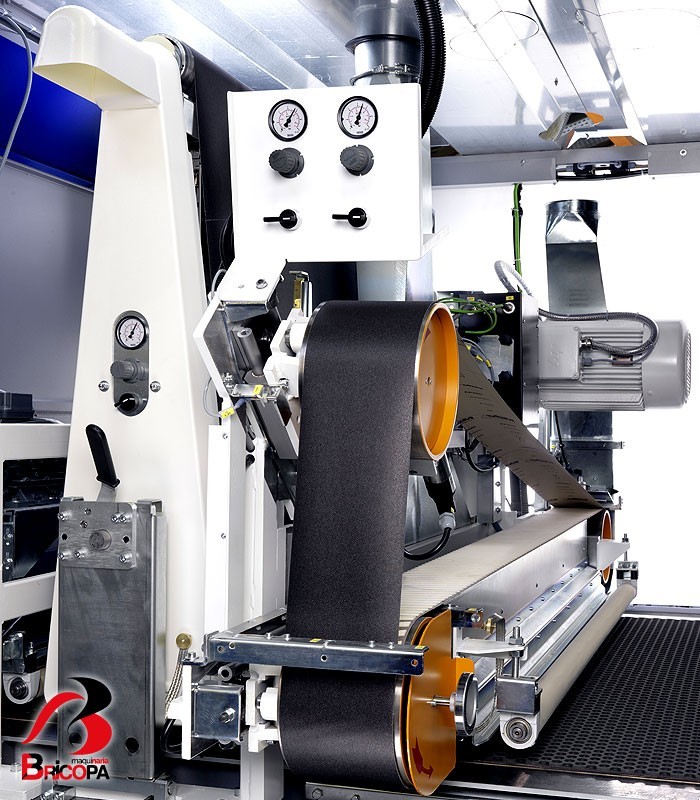

Cross unit (C):
- (Sanding belt) Dimensions (LxA mm): 4800 x 150
- Belt speed: 2 - 20 m/s

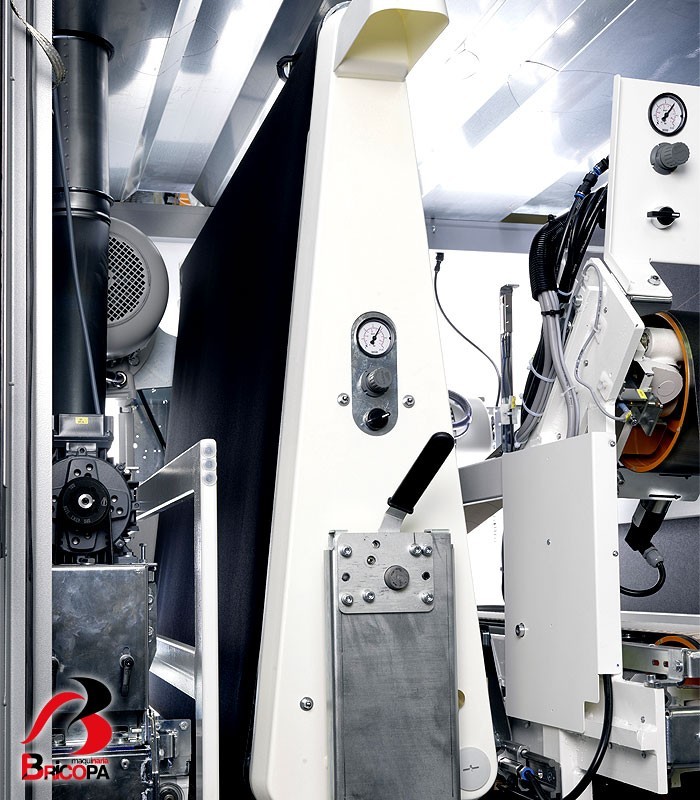

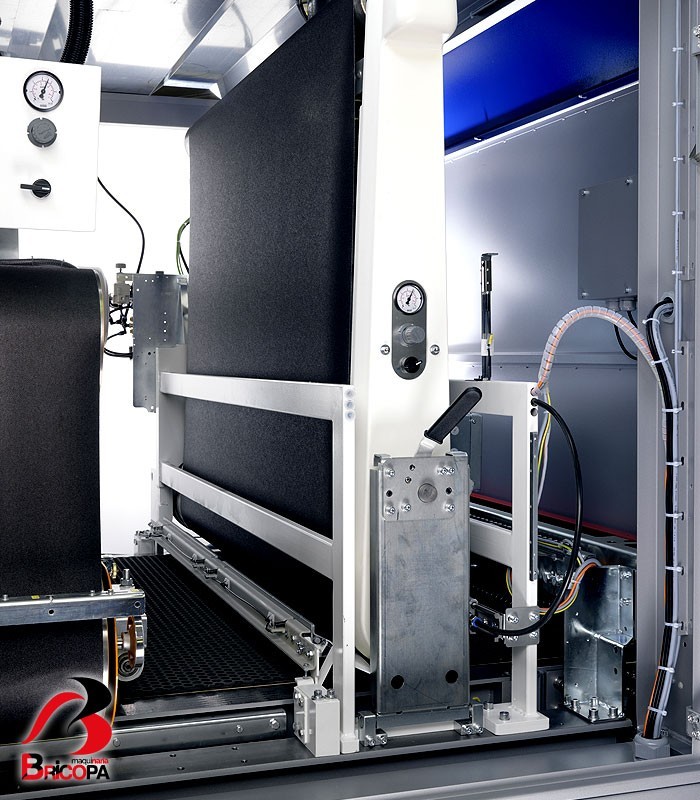

Longitudinal unit (L):
- (Sanding belt) Dimensions (LxA mm): 2 150 x 1 350 / 2 620 x 1 350
- Belt speed: 1,8 - 18 m/s

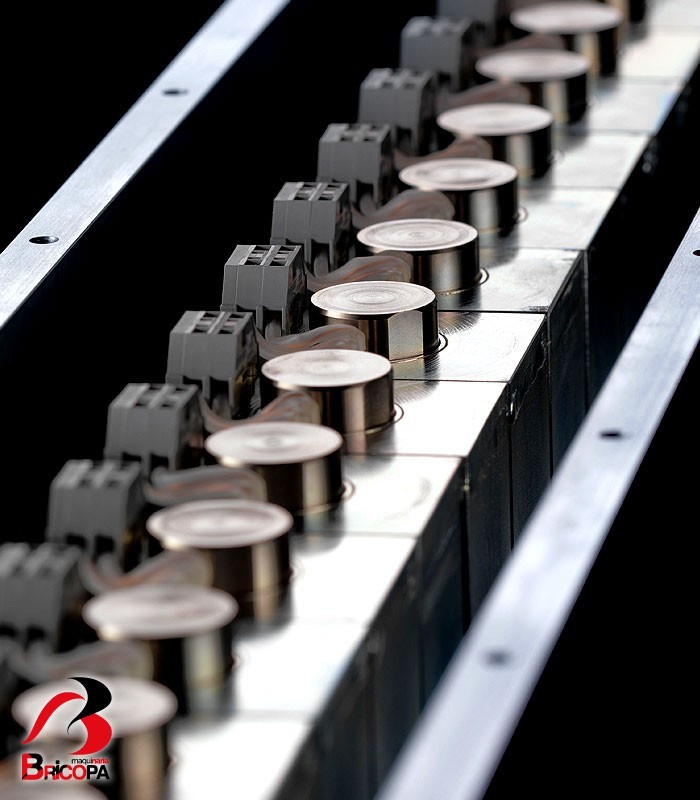

Longitudinal sanding unit, with pressure segment belt (Lef):
- (Sanding belt) Dimensions (LxA mm): 2620 x 1350
- Belt speed: 1,8 - 9 m/s
Transversal unit (T):
- (Sanding belt) Dimensions (LxA mm): 4800 x 150
- Belt speed: 2 - 20 m/s

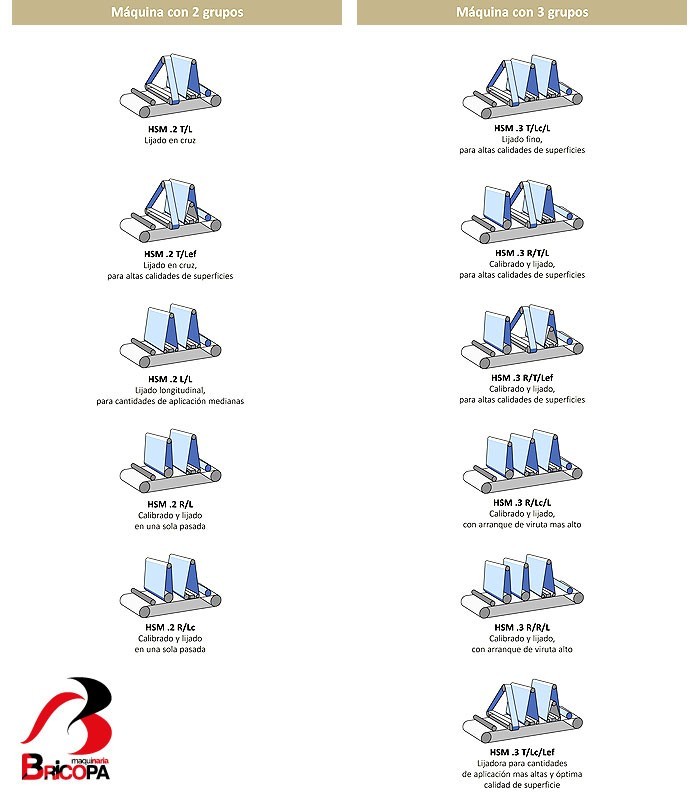

STANDAR COMPOSITIONS HSM .2
- R / L: contact roller + longitudinal unit
- R / Lc: contact roller + longitudinal unit
- L / L: longitudinal unit + longitudinal unit
- C /Lc: cross unit + combi unit
STANDAR COMPOSITIONS HSM .3
- R / R / L: 2 contact rollers + longitudinal unit
- R / C / L: contact roller + cross unit + longitudinal unit
- R / Lc / L: contact roller + cross unit + longitudinal unit
- C /Lc / L: contact roller + combi unit + longitudinal unit
- C / Lc / Lef: cross unit + combi unit + longitudinal unit with pressure segment belt
