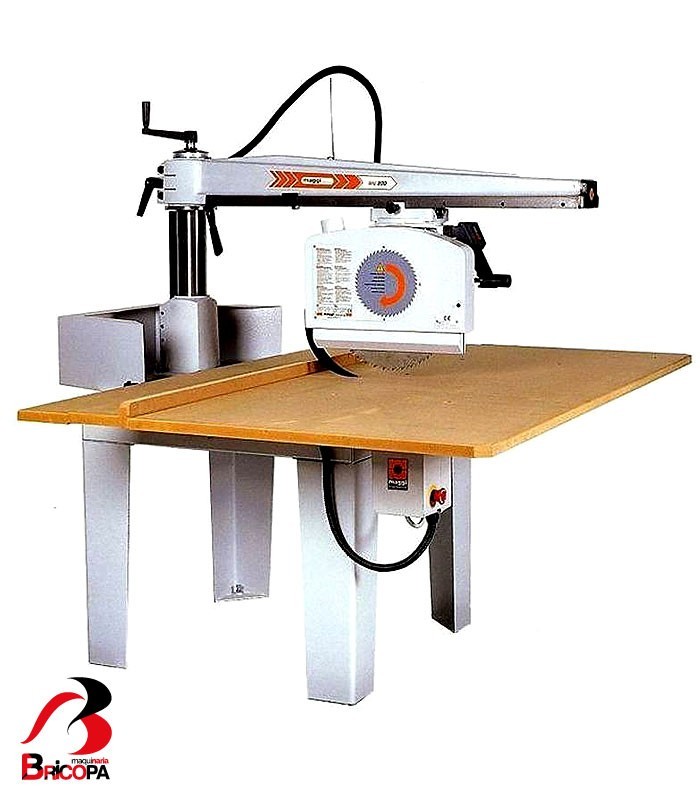

BIG 800 MAGGI radial saw table dimensions 1860x1145 mm. With Ø 400 blade: max cut width 20x705 mm, length cut 125x610 mm, max depth 125 mm, max cutting height at 45° 80 mm, max. height of blade from table 45 mm.

More details

New machinery
Technical description



MAGGI radial arm saws are built with the maximum care, exploiting the best technological expedients fit for making them sure and reliable.

  • The heavy cast iron structure guarantees their constant and perfect cutting precision.
  • The large wooden working table allows the operator to act with the maximum ease.
  • Adaptability, versatility, cutting precision, maintenance facility make this line of machines an essential equipment in daily use of each kind of joinery.
  • Adjustable, soundproof blade-guard carter that guarantees a complete covering of the blade for each cutting depth. Preset for an easy replacement of the same blade.
  • Sliding of the carriage/fork/motor group by means of 8 adjustable ball bearings assembled at 45 degrees on interchangeable, special steel guides.

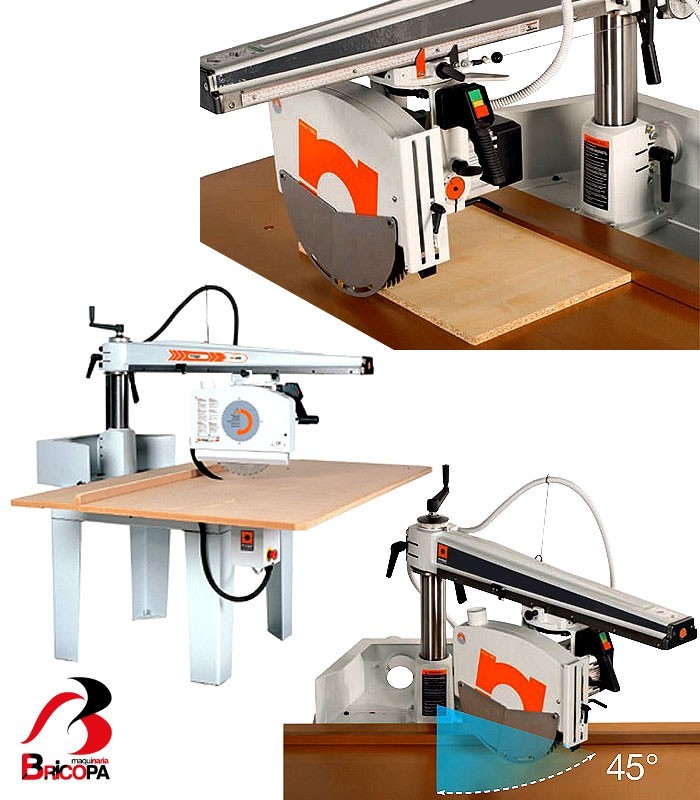

  • Blade inclination as to working table from 0 up to 45 degrees with possibility of automatic locking at the 2 ends.
  • Large wooden working table and suction prearrangement.
  • Radial amplitude of the arm from 0 to 45 degrees either right or left.
  • IP54 electric control board with relative emergency push button.
  • NEW ADJUSTABLE BLADE GUARD ensures a complete coverage of the inactive part of the saw blade at all cut depth. diameter 550 mm.
  • SELF-BRAKING MOTOR and frontal switch for low tension.
  • THE BLADE can be positionned from 0 to 45 degrees. Automatic locking device on both of the extremities.
  • On request: automatic return device.
  • On request: self-braking motor/low voltage frontal switch group.


Three phase Motor Power

4 (3) Hp (kW)

Single phase Motor Power

3 (2.2) Hp (kW)

Motor Speed

2800 r.p.m.

Blade Diameter

Ø 400 mm

Blade Bore Diameter

Ø 30 mm

Shaft dimension

Ø 25x80 mm

Dust chute diameter on blade guard

Ø 60 mm

Rear dust chute diameter

Ø 100 mm

Table dimensions

1860x1145 mm

Maximum cut width Ø 400

20x705 mm

Length of cut h max Ø 400

125x610 mm

Maximum cut depth Ø 400

125 mm

Max. height of blade from table Ø 400

45 mm

Max. cutting heght at 45° Ø 400

80 mm

Max. cutting height arm 45° on right side

20x500 > 125x430 mm

Max. cutting height arm 45° on left side

20x310 > 125x240 mm

Net Weight

225 Kg

Gross Weight

237 Kg

Packing Dimensions

1900x850x660 mm
