GLUE SPREADER HOTMASTER
Automatic gluer machine for hotmelt glues pur & eva, working width from 1300 up to 2200 mm, working panel thickness 0-100mm, working surface height 900mm, gluing rollers diam. 250 mm, dosing rollers diam. 215 mm, motor power 3 Kw.
HOTMASTER OSAMA
New machinery

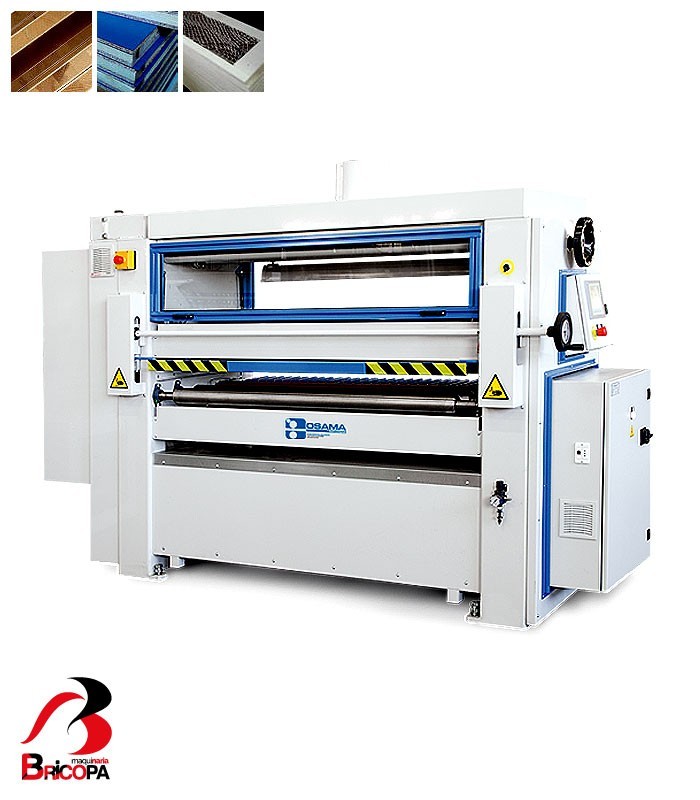

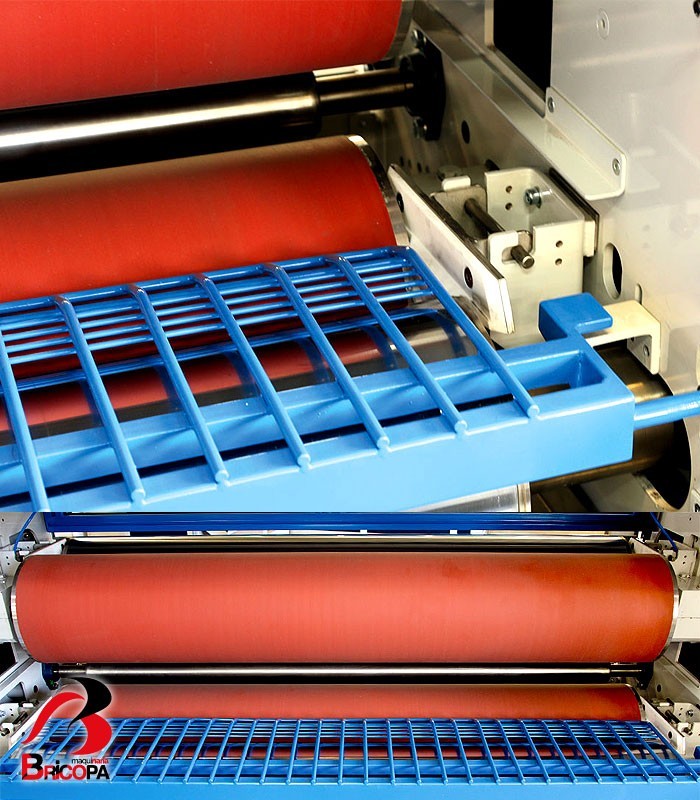

AUTOMATIC GLUER HOTMASTER OSAMA WITH 4 ROLLERS FOR HOTMELT GLUES PUR & EVA: the best-designed OSAMA roller spreader, for use in the woodworking and construction fields.
- Suitable for applying hot melt PUR glues on panels in chipboard, MDF and OSB, EPS, etc. where adhesion is difficult for traditional glues and it is possible to use double the quantity per square metre and unthinkable drying times.
- Hot melt glues, besides ensuring immediate setting on panels clad in glass, plastic, rubber, sheet metal etc. also achieve amazing processing times, practically in line and first time through, using laminating calenders with traditional rollers.

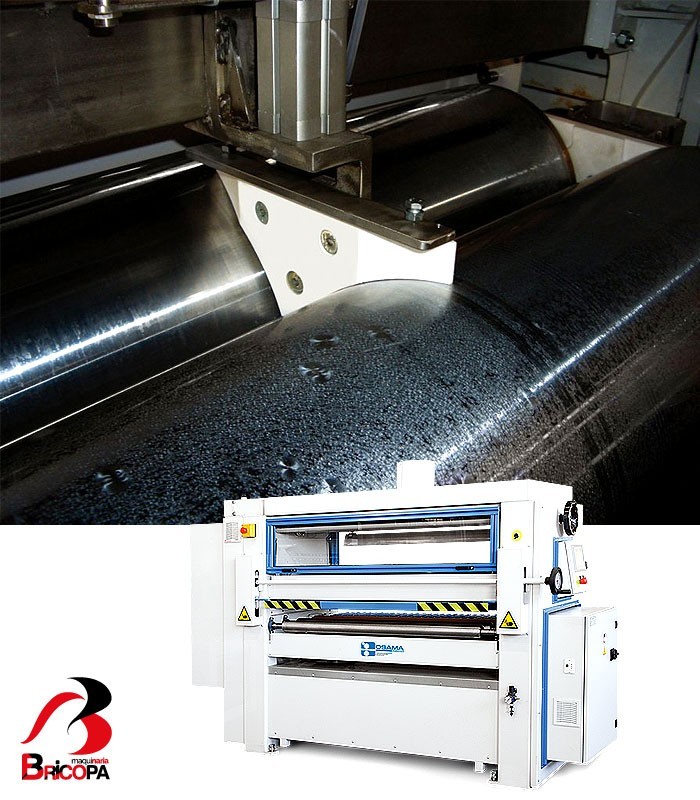

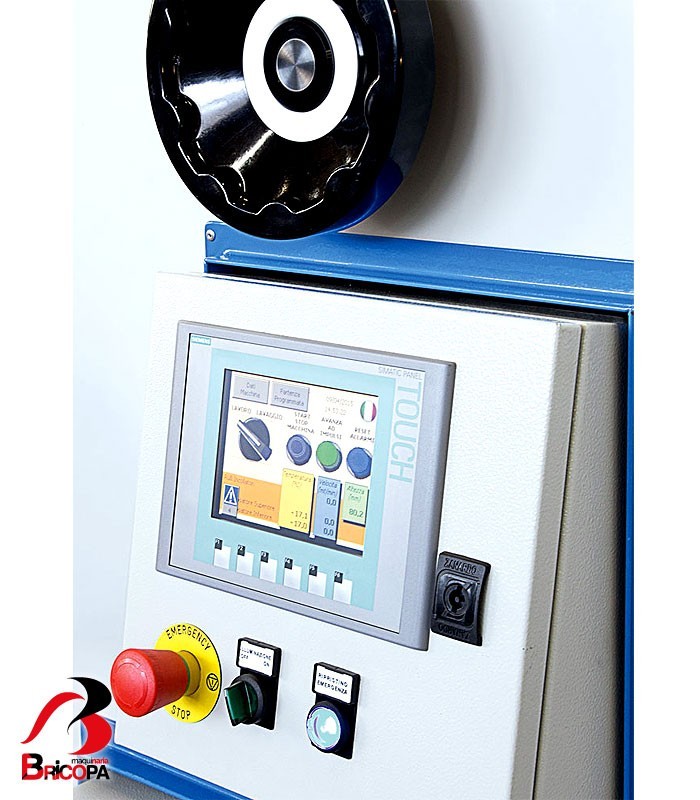

- HOTMASTER uses a diathermic oil heating system mounted inside the chrome-plated dispenser rollers and powered by electrical resistances. Internal probes automatically control and correct temperature changes of even one degree, with PLC touch screen monitoring.
- It is possible to reduce the "glue’s field of action” in the upper part of the dispenser/spreader roller and in the chrome-plated/chrome-plated configuration, by means of Teflon side gaskets, installed inside the standard gaskets.
TECHNICAL DETAILS
| Working width | mm | 2200 | 2000 | 1800 | 1600 | 1400 | 1300 |
| Workable panel thickness | mm | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Working Surface height | +/-20 mm | 900 | 900 | 900 | 900 | 900 | 900 |
| Spreading roller diameter | mm | 250 | 250 | 250 | 250 | 250 | 250 |
| Diameter of dosing rollers | mm | 215 | 215 | 215 | 215 | 215 | 215 |
| Motor power | Kw | 3 | 3 | 3 | 3 | 3 | 3 |
| Resistance power | Kw | 8 | 8 | 8 | 8 | 8 | 8 |
OPTIONAL
- Speed control by means of an electronic inverter.
- Motorized introducer rollers.
- Teflon-coated parts that come into contact with the glue.
- Installation of glue level sensors.
- Supports for glue dispensing guns.
- Installation of track wheels to easily extract the inline spreader for cleaning for maintenance purposes.
