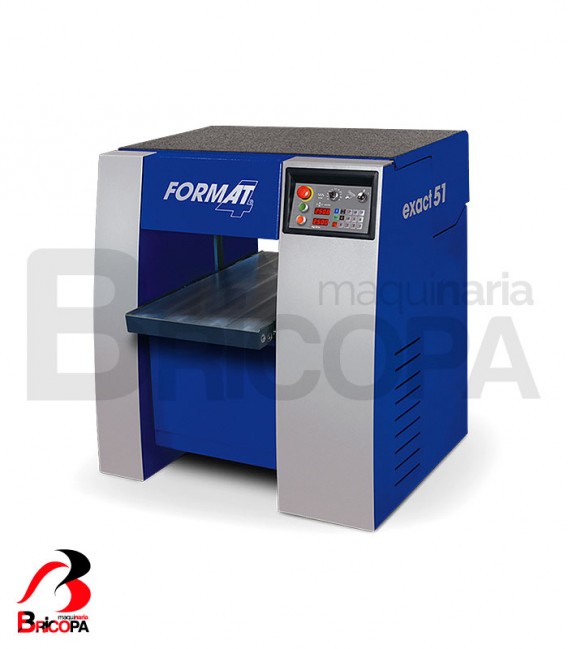

THICKNESSER EXACT 51 FORMAT-4
The THICKNESSER EXACT 51 FORMAT-4 has a brush width of 504 mm and a thickness of regrueso from 3 to 300 mm. The feed rate is adjustable, continuously 5–20 m/min. Brush shaft with self-adjusting blades and with Silent-POWER spiral blade (optional).
THICKNESSER EXACT 51 FORMAT-4
It is ideal for jobs where the highest demands of brushing on wooden surfaces are required. It is a machine with complete standard equipment, such as the pressure bar articulated under the spring on the feed side, the presser bar under the spring on the output side and a variable feed rate of 5 to 20 m/min, the new EXACT 51 can be equipped with a long list of options according to customer requirements.
TECHNICAL DATA
Electric system
- 3x 400 V, motor voltage.
- 50 Hz motor frequency.
- 7.5 hp (5.5 kW) S6 / 40%
- Triangle star start.
Brush shaft
- Edge scope circle: 120 mm
- Revolutions 5000 rpm

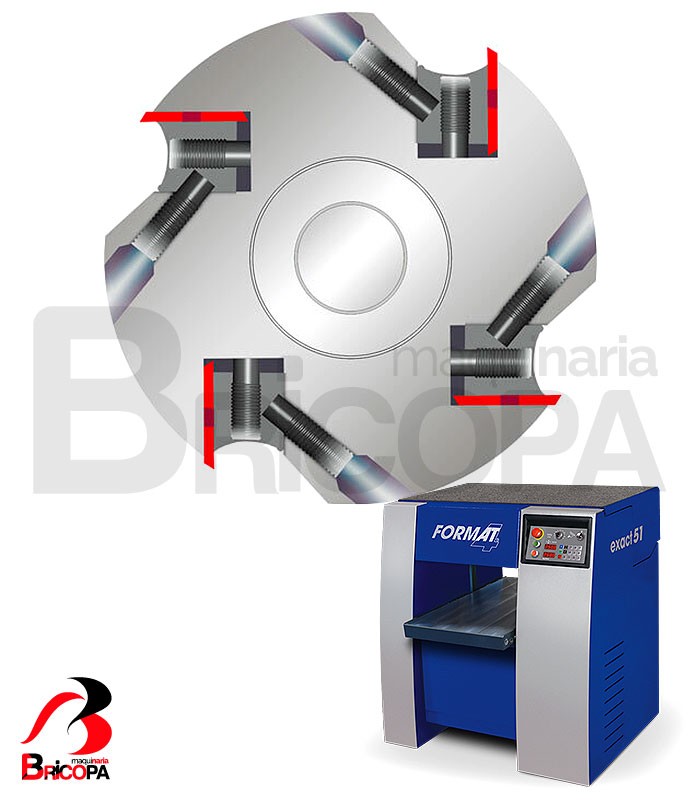

- 4-blade system shaft
- Number of blades - Silent-POWER helical brush shaft: 77
Thicknesser and advance team
- Thicknesser width: 504mm
- Maximum chip pitch: 10 mm

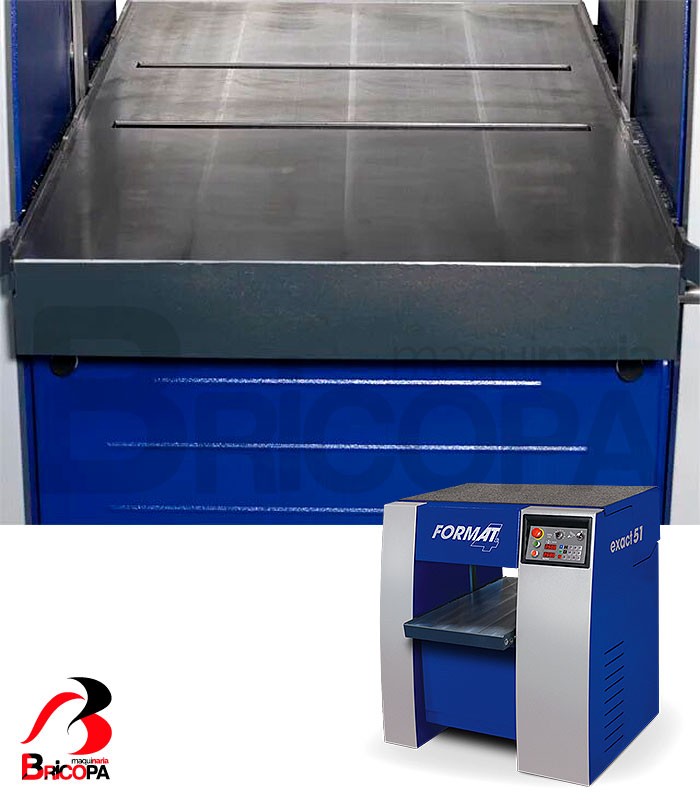

- Height of the thicknesser table min/max: 3-300 mm

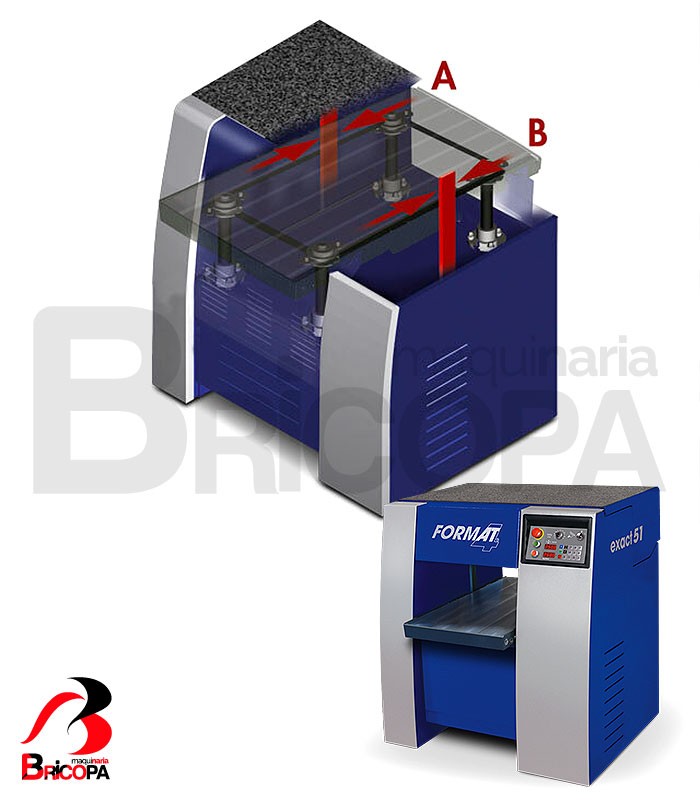

- Electric height adjustment of thicknesser.

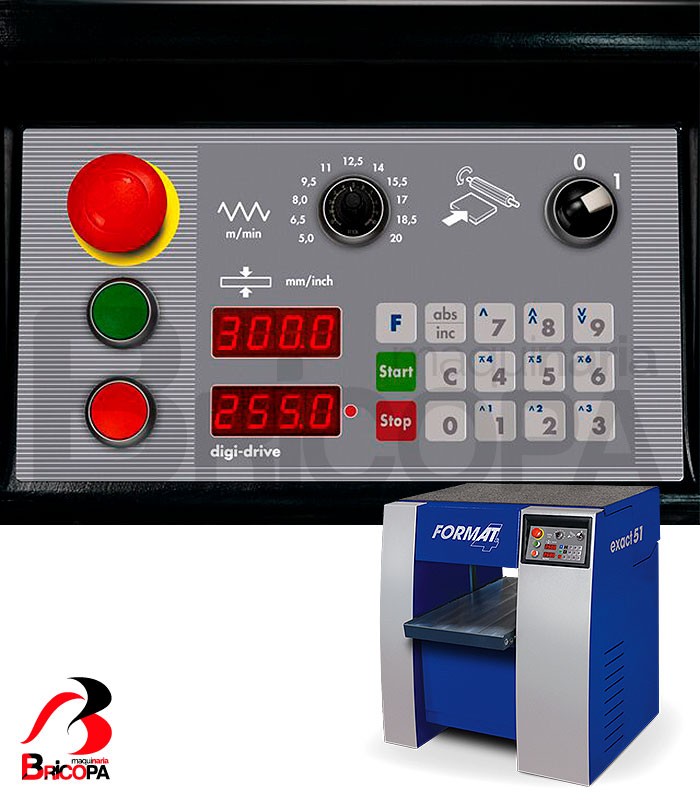

- Electronic digital display for the adjustment of the “Power-Drive” D1 table

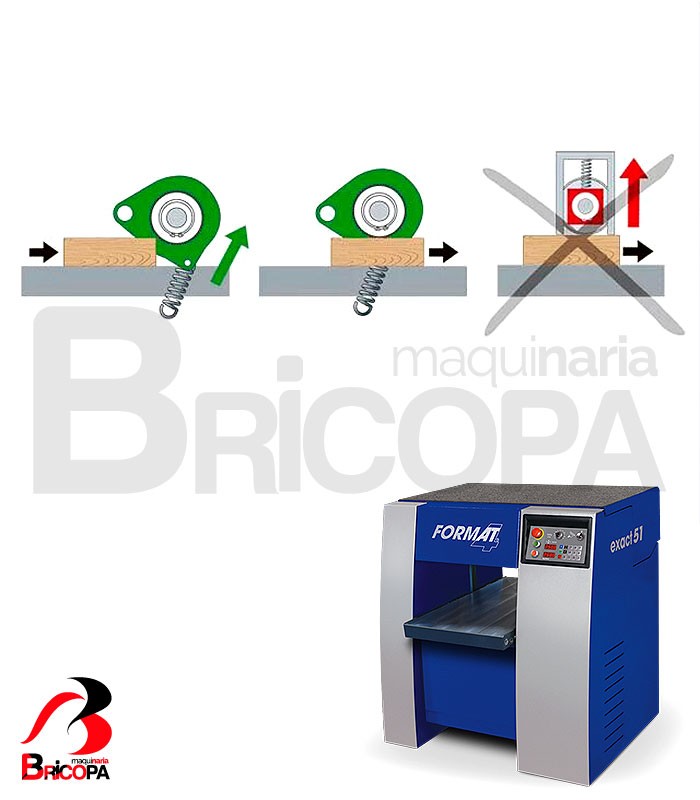

- Unilateral elastic articulated press bars
- Spring exit pressure roller.
- Steel entrance roller, helical denture Ø 85 mm.
- Steel exit roller, micro denture Ø 85 mm.

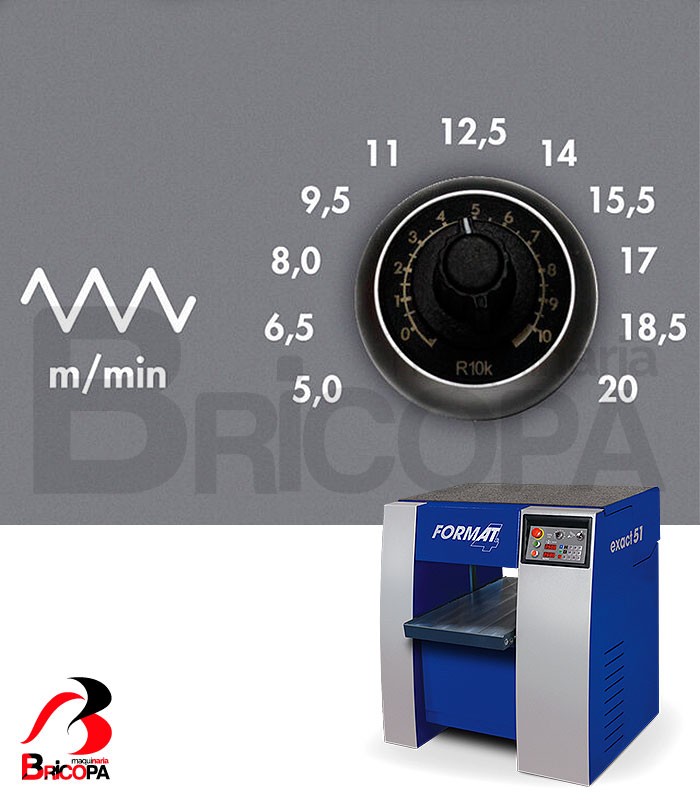

- Drag with drive 5–20 m / min.
Generalities
- Suction socket in mm (mountable left or right): 140 mm
- Weight in Kg (with medium equipment):812 kg
Characteristics for information only. The technical details are not legally binding. Contact us for further information.
