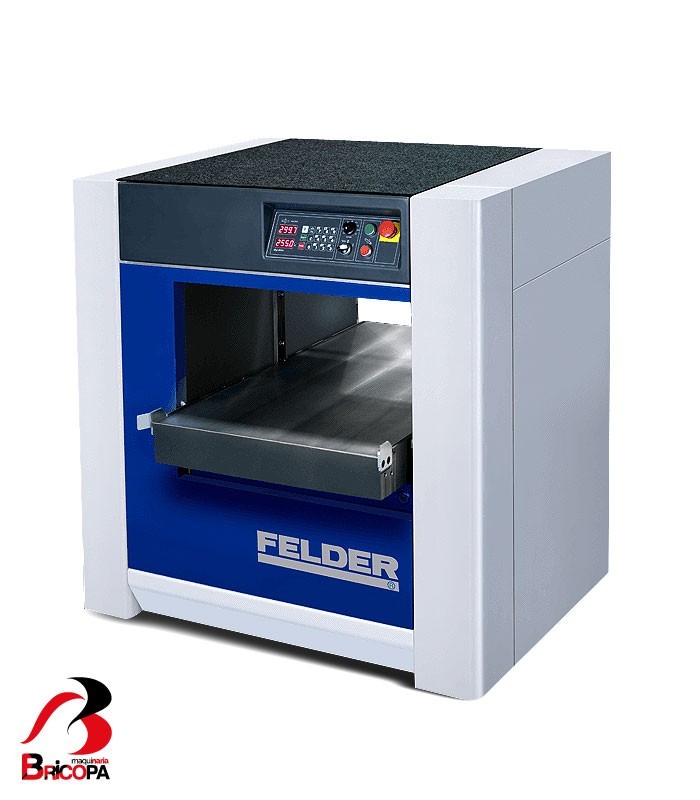

THICKNESSER PLANER D 963

PLANER THICKNESSER D 963 FELDER

ADVANTAGES

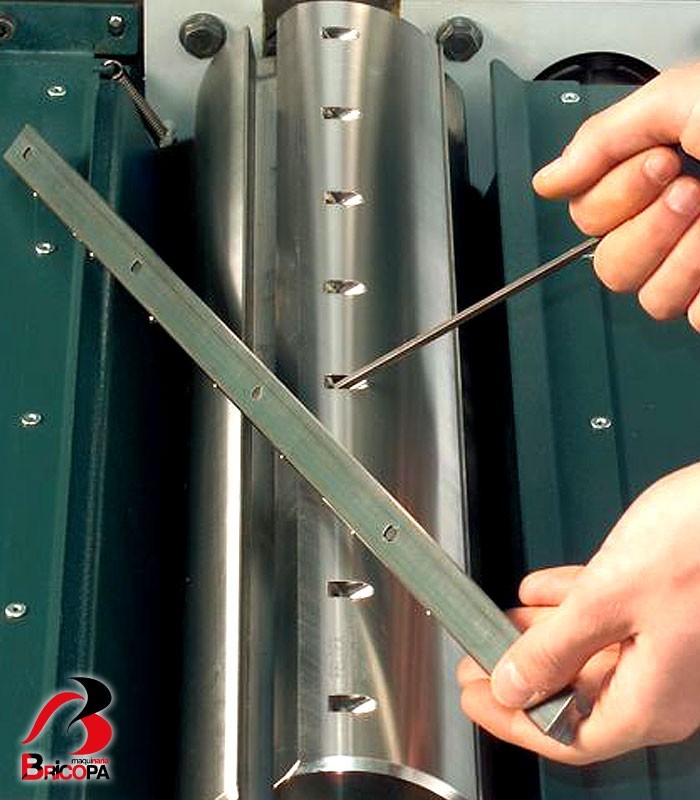

• The thicknesser planer D 963 FELDER allows a knife quick- change thanks to the 4-knife Felder-system cutterblock.

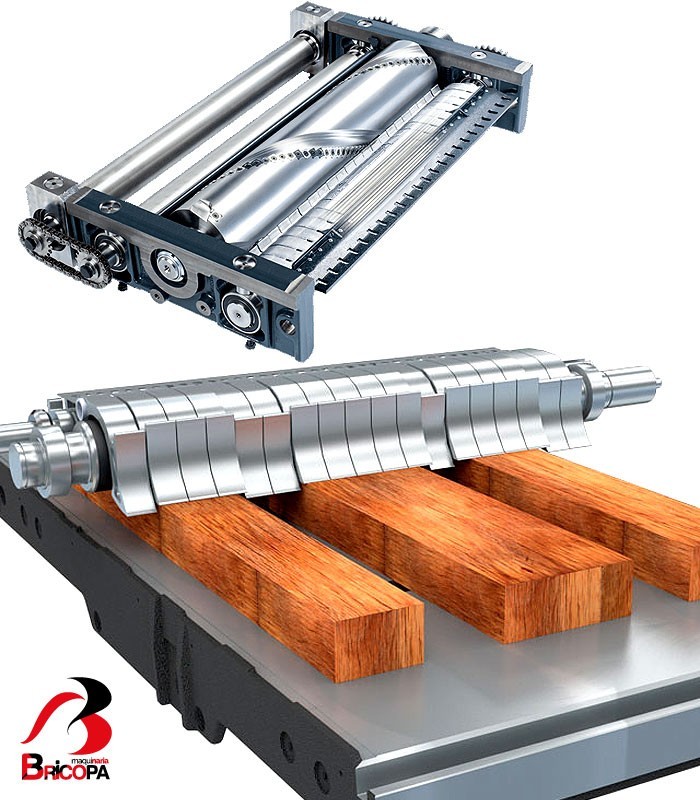

• Optional: Plane sensationally quietly with the Silent-POWER® spiral cutterblock

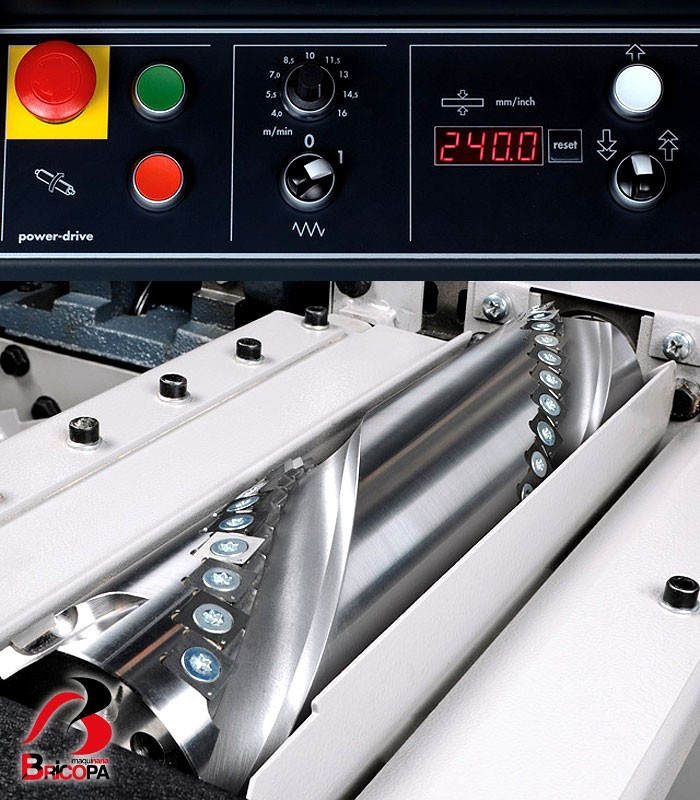

• “Power-Drive” system − it is all electric: turn the control knob for quick adjustment, and push the button for fine adjustment. The LED display clearly shows the actual value.
• OPTIONAL “Digi-Drive” system: enter the required dimension, press Start and the thicknesser table will move precisely to the required position. Set and actual values are displayed on LED displays.

STANDARD EQUIPMENT

Electrical setup

• 3x 400 V motor voltage
• 50 Hz
• 13,5 CV (10,0 kW)*

Cutterblock

• Cutterblock diameter (mm) 120
• 4-knife Felder-system cutterblock
• Number of knives - Silent-POWER spiral cutterblock: 95 (OPTIONAL)

Thicknesser

• Thicknessing planing width in mm 630 mm
• Thicknessing height min.–max. 3–300 mm
• Maximum depth of cut in mm 8
• “Power-Drive”: electrical table height adjustment for thicknesser table
• OPTIONAL “Digi-Drive”:position control for thicknesser table height, pre-programmable
• Steel infeed roller
• Steel outfeed roller
• Variable speed drive 4–16 m/min

Optional Accessories

• Workpiece roller on the infeed side 630 mm
• Automatic lubricating of the thicknessing table infeed with workpiece roller on the infeed side
• Coupling system for table extension with F-Coupling (Outfeed side)
• Scissor lifting table for mounting onto the thicknessing table
