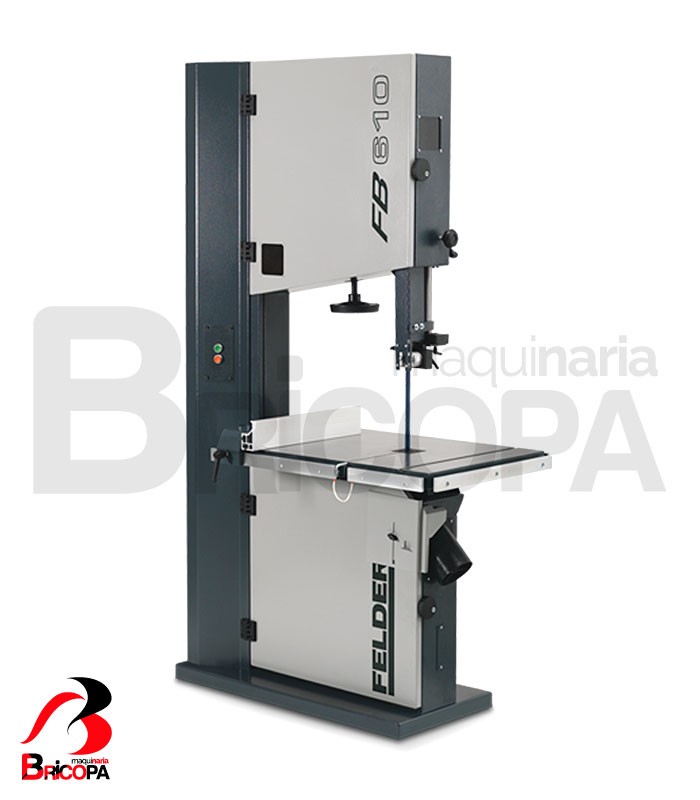

BANDSAW FB 610 FELDER

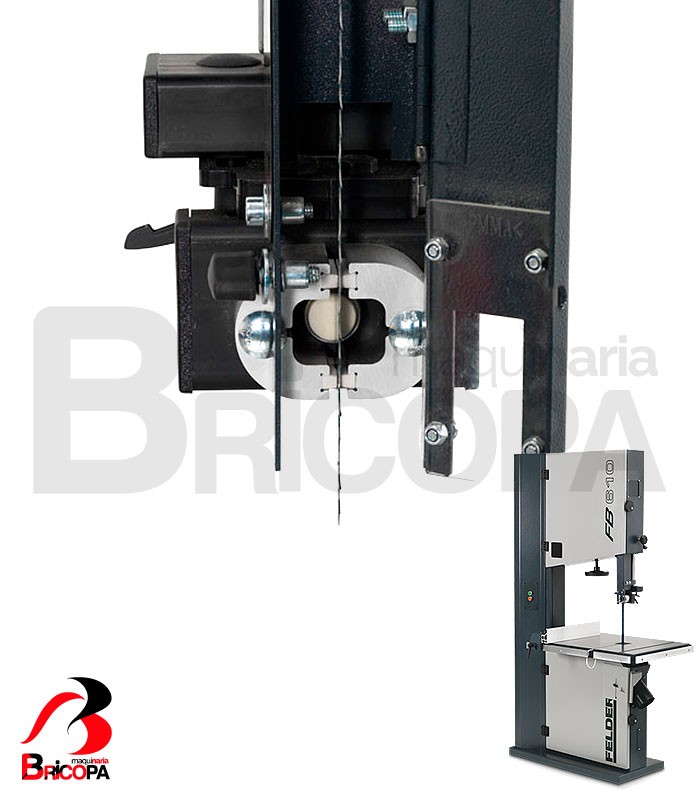

The BANDSAW FB 610 FELDER has a cutting height of 410mm, a cutting width of 575mm and a steering wheel of 600mm diameter. The cutting speed is 1200 m / min. The dimensions of the table are 560x850mm. It has guides of the X-Life® ceramic band saw as optional.

More details

FB 610 FELDER
New machinery

Technical description

BANDSAW FB 610 FELDER

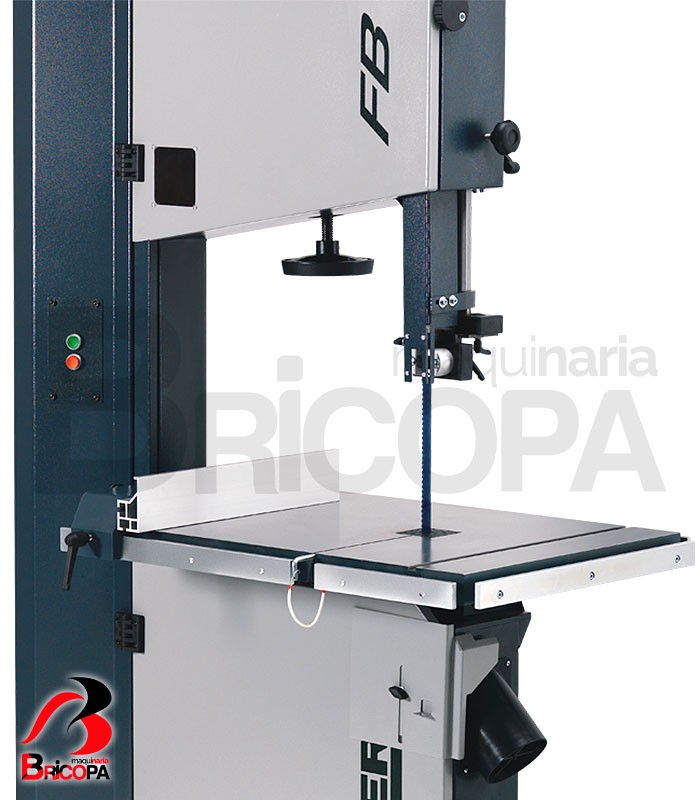

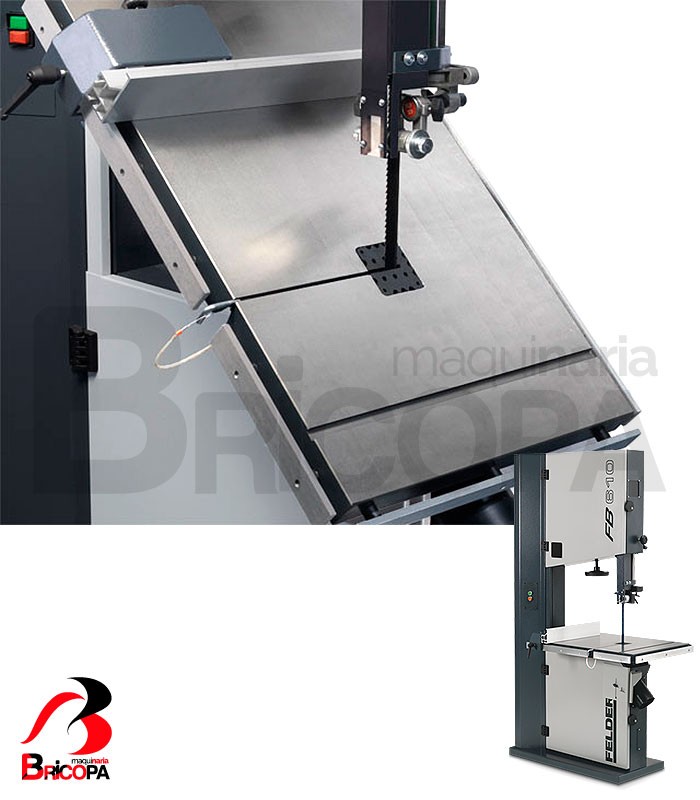

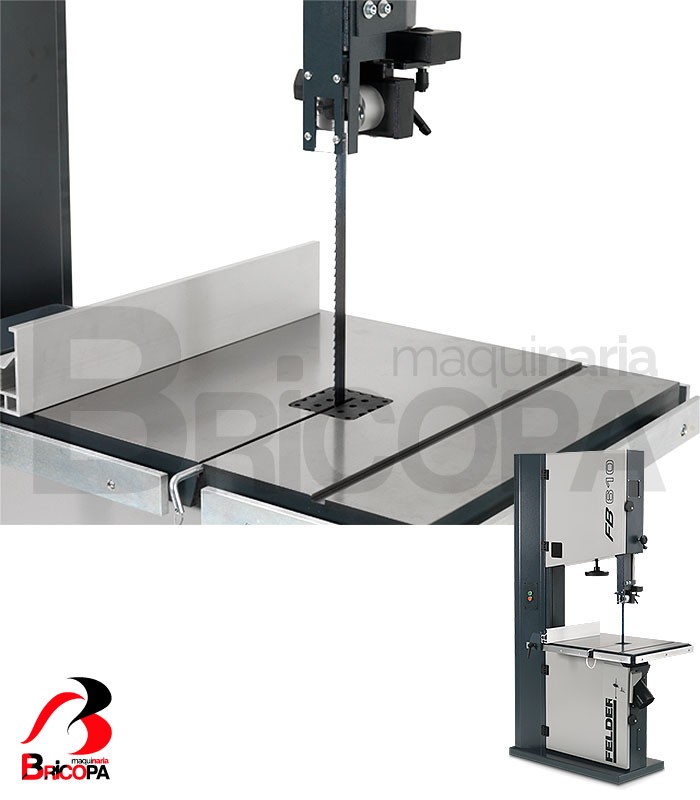

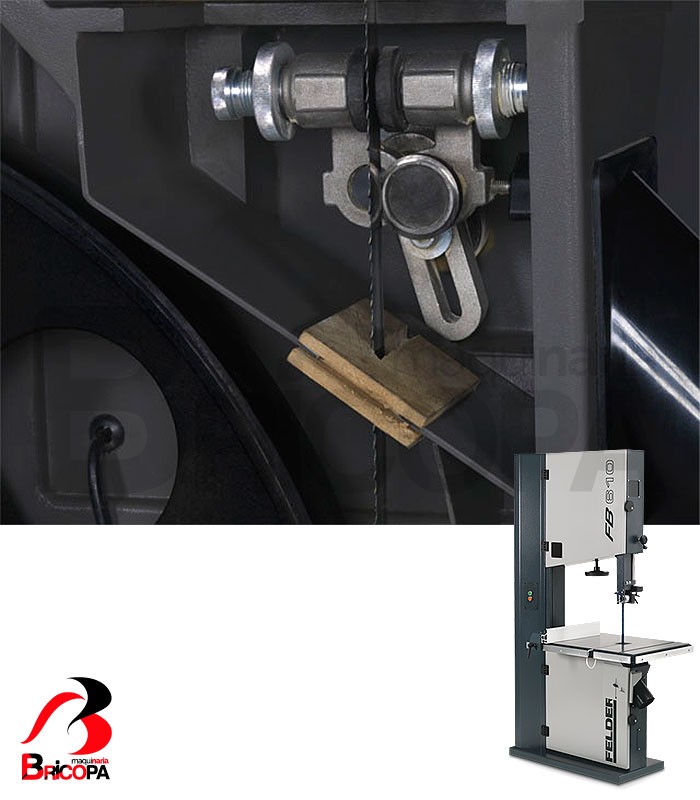

The BANDSAW FB 610 FELDER has cast iron rollers, electronically balanced, top and bottom guide of the endless saw blade, indicator of the tension of the endless saw blade, band saw table in steel cast iron, tiltable up to 45 degrees and aluminum stop rule.

TECHNICAL DATA

Electrical Setup

  • 3x400 V.
  • 50 Hz.
  • 4.0 HP (3.0KW).

Unit

  • Cutting height in mm: 410
  • Cutting width in mm: 575
  • Flywheel-Ø in mm: 600
  • Fly-wheel speed (rpm): 800
  • Cutting speed in m/min: 1200
  • Blade length in mm: 4546
  • Blade width in mm: 6–30

General

  • Table size in mm: 560 X 850
  • Working height in mm: 840
  • Tiltable table: -5°–+45°
  • Dust port Ø in mm: 2x 120
  • Total height in mm: 2043
  • Weight in kg: 330

Characteristics for information only. The technical details are not legally binding. Contact us for further information.
