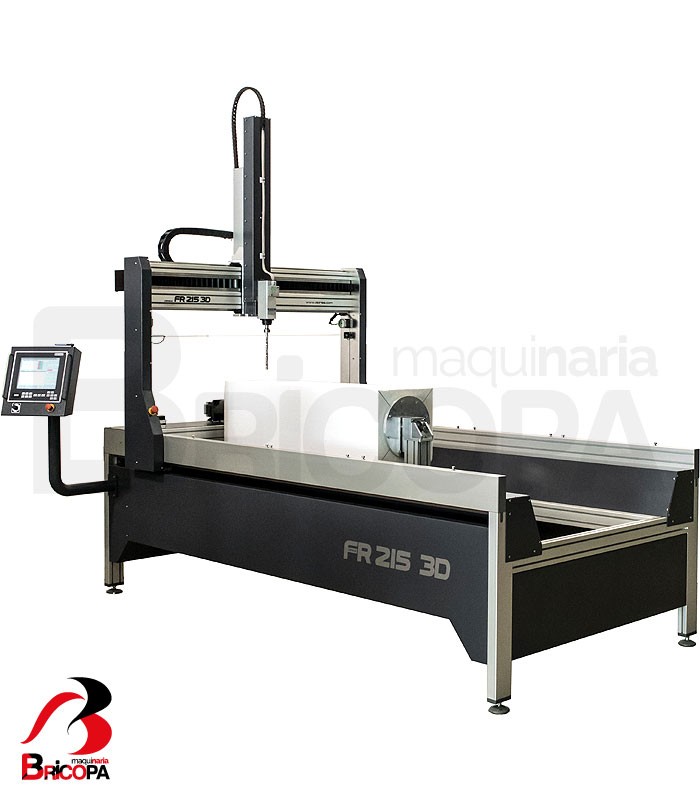

HOT WIRE CNC FOAM CUTTER FR215 3D ALARSIS

HOT WIRE CNC FOAM CUTTER FR215 3D ALARSIS: Very robust professional model with special dimensions for modeling foams and low maintenance, with its unique hot - wire system integrated into the frame can rough large blocks without generating chip, then apply only last termination end of the milling machine.

More details

New machinery

Technical description

HOT WIRE CNC FOAM CUTTER FR215 3D ALARSIS

Three machines in one: It can be used as modeling milling machine with 4 interpolated axes, as a normal 3-axis milling and hot wire cutter.

The rotary axis allows machining with blocks of 700 x 700 x 2000 mm and 3-axis milling blocks of 2000 x 200 x 400mm. Thread cutter mode enables 2000 x 450mm figures. Brushless motor with electronic control milling CNC TEXComputer and inverter included in the system along with anchoring systems for machining blocks without rotating shaft.

TECHNICAL DESCRIPTION

  • Aluminum frame and very robust steel.
  • Linear guides with recirculating ball without gaps.
  • Toothed belt drive polyurethane with steel wires inextensible interior HTD3M step.
  • High travel speed 15000mm / min.
  • Resolution 0.01 mm.
  • Sanyo Denky high torque servomotors 30 Kg / cm.
  • Truck with CNC control electronics Tex Computer.
  • Displacement in the X and Y axes with toothed pulleys.
  • Displacement in the Z axis ball screw 16mm.
  • Detection limit switch in axes.
  • Frame dimensions: 2500x 2200 (approximately).
  • Useful work area: 2000x1300mm. Useful height 400 mm Z axis.
  • 600x600x2000mm maximum rotating block.
  • 2 years warranty.
  • CE certified.
  • ISO9001
  • Made in Spain by Alarsis
