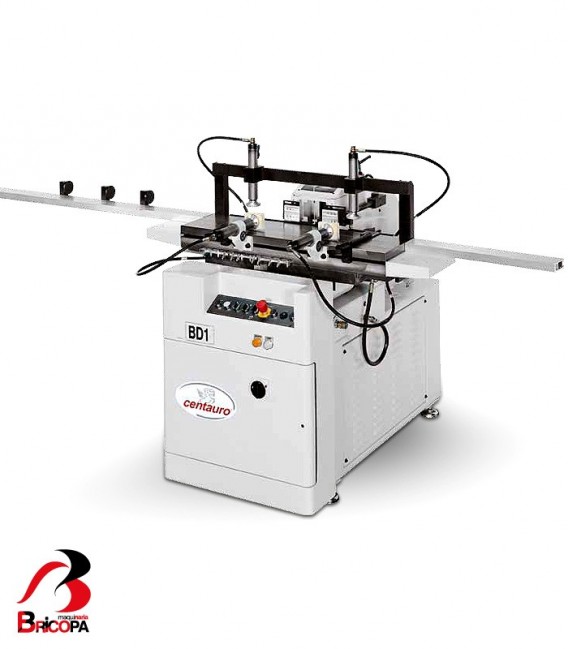

CHISEL MORTISER BD1
Horizontal hydraulic chisel mortiser BD1 CENTAURO with 2 controlled axis, has a max. slot depth 110mm, max. slot length 100/25mm, working table size 240×950.
HORIZONTAL HYDRAULIC CHISEL MORTISER BD1 CENTAURO
TECHNICAL DATA
Max. slot depth | mm | 110 |
Max/min slot length | mm | 100/25 |
Min. slot width | mm | 6 |
Max. chisel length | mm | 210 |
Max. chisel thickness (single) | mm | 20 |
Max. workpiece height | mm | 145 |
Max. workpiece width | mm | 140 |
Working head adjustment vertical stroke | mm | 90 |
Table transversal stroke | mm | 120 |
Table longitudinal stroke | mm | - |
Working table sizes | mm | 240×950 |
Hydraulic system operating pressure | bar | 70 |
Table transversal feed speed | m/min | 0÷2,75 |
Work table longitudinal traversing speed | m/min | - |
Speed of chisel vertical stroke | m/min | - |
Compressed air consumption | l/min | 450 |
Diameter of sawdust hoods | mm | 60/80 |
Required rate for suction system (*) | m3/h | 565 |
Working head motor power | HP / Kw | 3 / 2,2 |
Hydraulic control unit motor power | HP / Kw | 0,75 / 1 |
Installed power | Kw | 2,95 |
Operating programs | - | |
Resolution | mm | 0,2 |
Net weight | Kg | 500 |
Overall dimensions | mm | 4150 x 1400 x 1350 |
