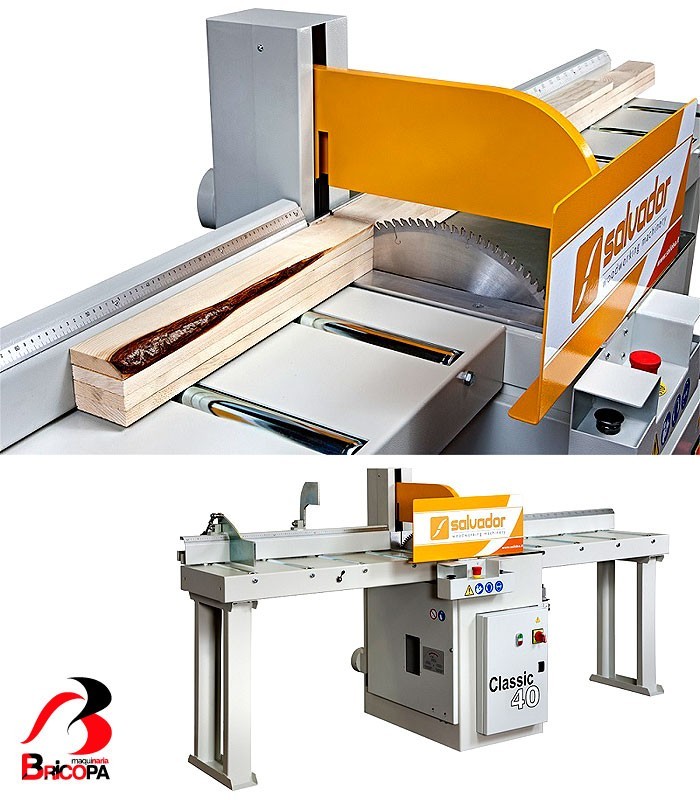

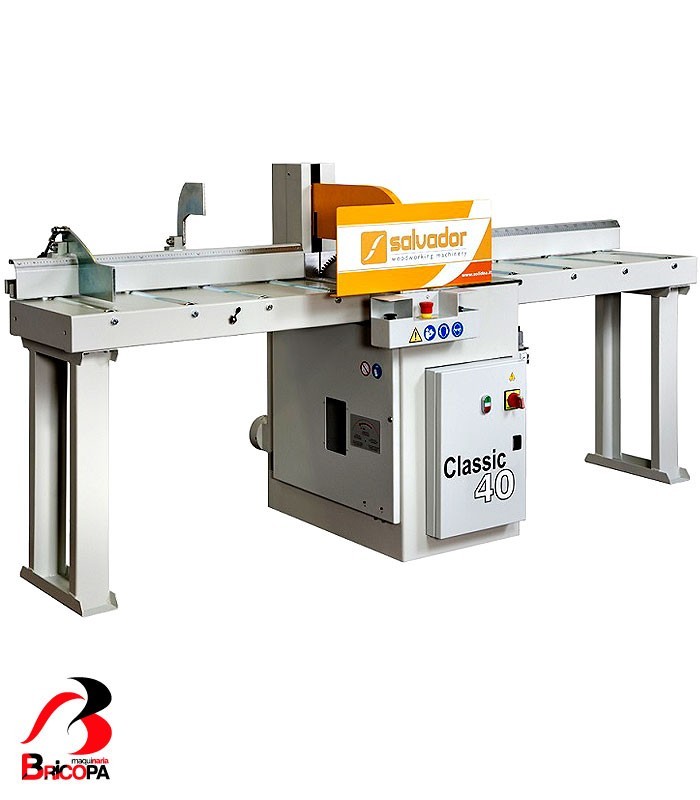

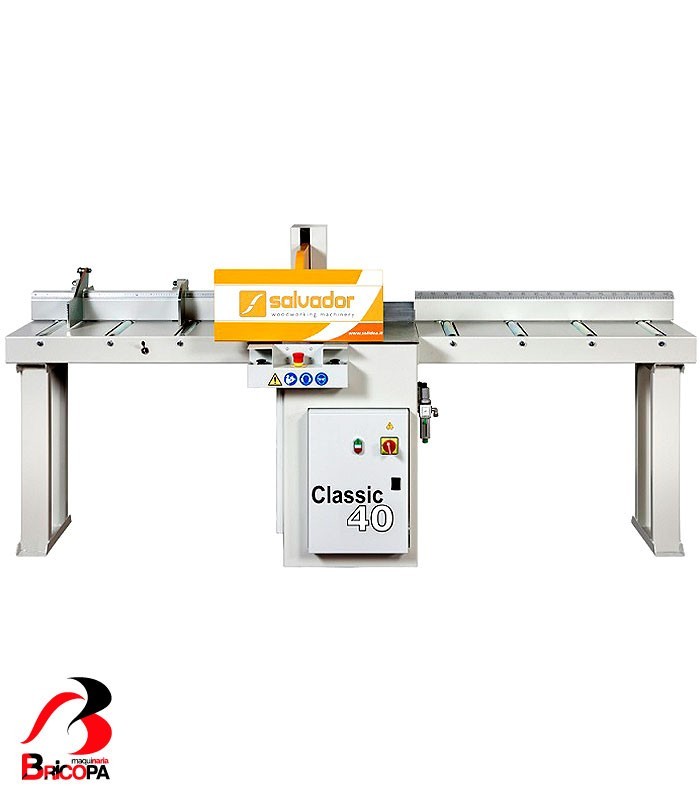

MITRE SAW CLASSIC 40
The CLASSIC 40 semi automatic crosscutting saw has a maximum cutting section of 220x80 / 250x50 mm and a 3 kw motor power.
CLASSIC 40 SALVADOR
New machinery
MITRE SAW CLASSIC 40 SALVADOR
ADVANTAGES
- Structure completely in varnished hard steel, high thickness and really strong
- Two-handed safety manual control with ergonomic position
- Cutting speed adjustable by pneumatic trimmer on the machine
- System to balance the cutting group weight giving long life. Special amortizing system
- Upper pneumatic beam to block the pieces with electro-pneumatic management
- Pressure beam movement system through the new “Skf” sliding bearings with double anti-dust protection and automatic lubrication
TECNICAL DATA
- Cutting section max: mm. 220x80 / 250x50
- Blade motor power kW 3,0
- Saw Blade diameter: 400mm/hole 30mm/Z96
- Saw spindle rotation speed: 2800 rpm
- Sawdust extraction: 1 -120 mm / 1-100 mm
- Voltage:V 400/50 Hz 3-fase
- Compressed air pressure: 6 atm
- Working height: 900+-20mm
