SECOND HAND BAND SAW S-500 KENBILL

New machinery
  • Available
  • Immediately
  • Stored
  • Not checked
  • Yes
  • Yes

Technical description

USED BAND SAW S-500 KENBILL

The used S-500 KENBILL band saw has 500 mm wheels made of cast iron. The tiltable work table (0 °/45°) has dimensions of 730 x 480 mm and is also made of cast iron. It allows a cutting height of up to 350 mm. It has an electric brake and a safety stop when opening the upper door.

TECHNICAL DATA

Electric system

  • Motor voltage: 1x 220 V
  • Power: 3.0 kW

Band saw

  • Fully armored
  • Motor power 3 kW
  • Cast iron spoke handwheels
  • Cutting speed: 18 m./sec.
  • Table dimensions 730 X 480 mm.
  • Tilt of the table 0° / 45°
  • Cutting height 350 mm.
  • Cutting width 500 mm.
  • Development of the saw blade 4,100 mm.
  • Suction intake: 100 mm
  • Raise and lower the guide by rack
  • Blade tension indicator
  • Electric motor brake

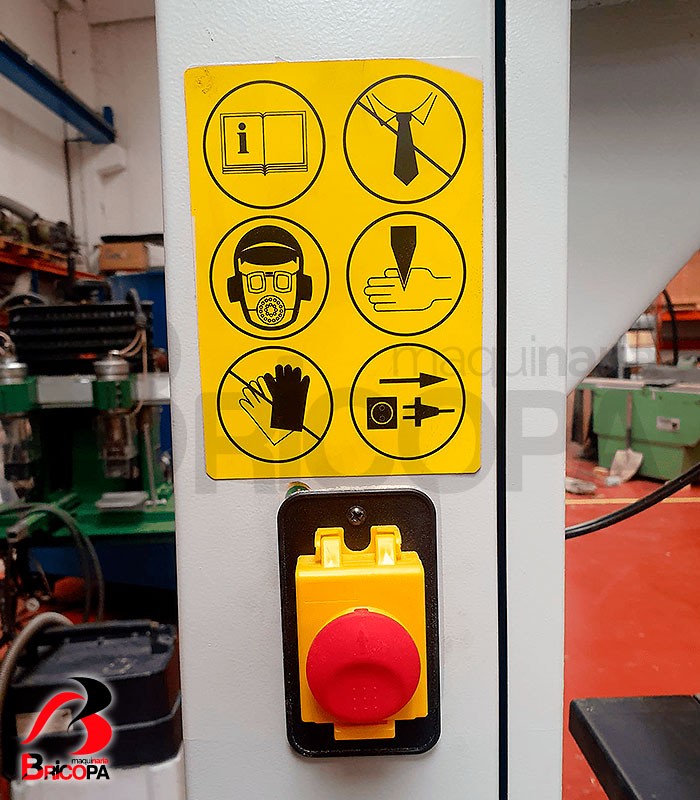

  • Safety stop when opening the upper door
  • Diameter of steering wheels 500 mm.
  • Weight of the machine: 265kg.
  • CE regulations

Subject to prior sale. Characteristics for information only. The technical details are not legally binding. Contact us for further information.
