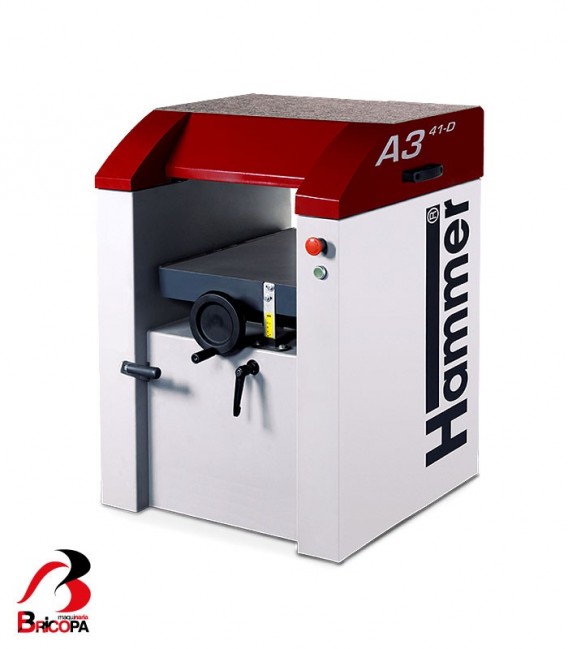

THICKNESSER PLANER A3 41D

PLANER THICKNESSER A3 41D HAMMER thicknessing width 406 mm, 3-knife quick-change self-setting cutterblock system, thicknessing height 225 mm, synchronised feed speed 6 m/min. OPTIONAL spiral cutterblock Silent-POWER®

More details

A3 41D HAMMER
New machinery

Technical description

PLANER THICKNESSER A3 41D HAMMER

ADVANTAGES

  • Long, heavily ribbed cast iron planer tables offer precision and stability.

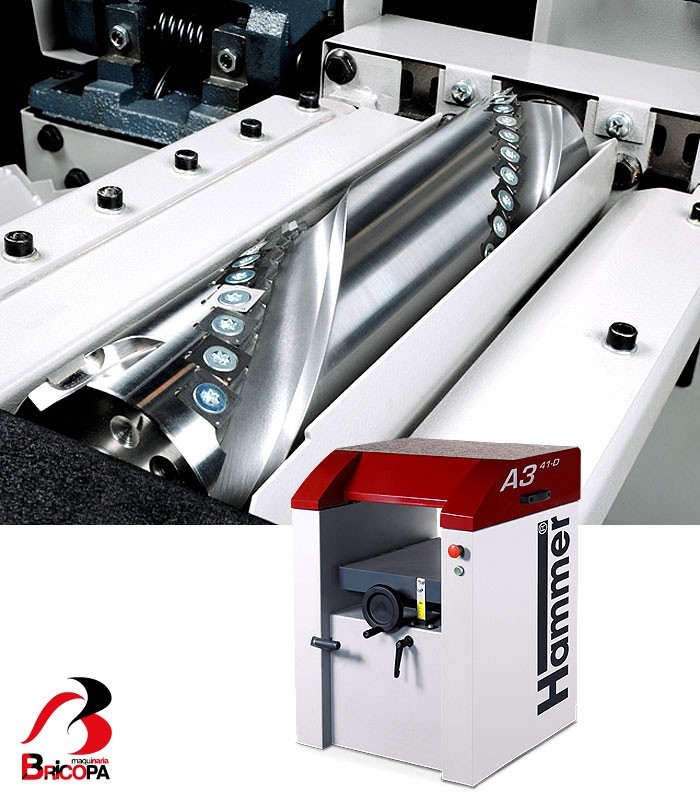

  • 3 knife quick-change, self-setting cutterblock system,
  • Optional: Plane sensationally quietly with the Silent-POWER® spiral cutterblock

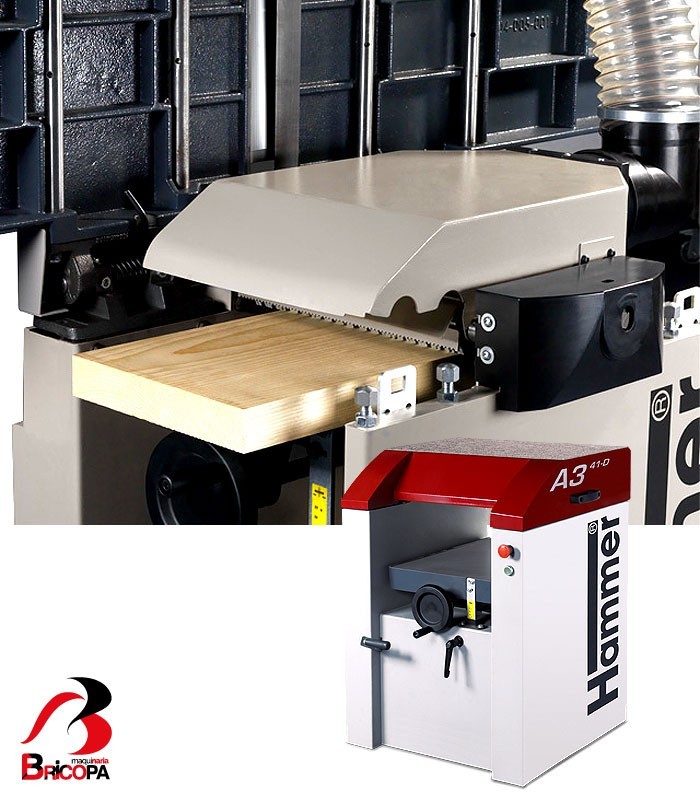

  • Perfect extraction technology - a clean solution
  • Maximum thicknessing height for big requirements: the maximum thicknessing height of 225 mm is a guarantee for the perfect processing of large and heavy workpieces
  • Minimal space requirement - mobile in every workshop: as an option a rolling carriage can be fitted to every Hammer, offering mobility and freeing up additional space.

STANDARD EQUIPMENT

Electrical setup

  • 3x 400 V motor voltage
  • 50 Hz
  • 5,5 CV (4,0 kW)*

Cutterblock

  • 3 knife quick-change, self-setting cutterblock system
  • Number of knives - Silent-POWER spiral cutterblock: 62 (OPTIONAL)

Thicknesser

  • Thicknessing planing width in mm 406 mm
  • Thicknessing table length in mm 600
  • Thicknessing height min.–max. 4-225 mm
  • Maximum depth of cut in mm 4
  • Synchronized feeder drive 6 m/min. (50 Hz)

Optional Accessories

  • Rolling carriage
  • Lifting bar
