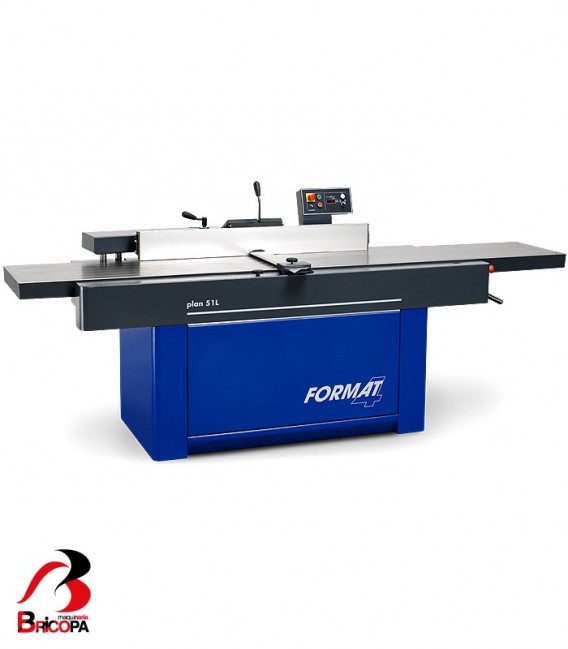

SURFACE PLANER PLAN 51 L

PLAN 51 L FORMAT-4 surface planer with 510mm planing width, total planer table length 3000mm, infeed planer table length 1650mm, working height 890 mm. Power-Drive electrical height adjustment of the infeed planer table with digital display (optional)

More details

PLAN 51 L FORMAT-4
New machinery

Technical description

SURFACE PLANER PLAN 51 L FORMAT-4

ADVANTAGES

  • The new FORMAT-4 PLAN 51 L impresses with its 510 mm planing width, solid ribbed cast iron planer tables, cutting edge planing technology and optimum operating concept.

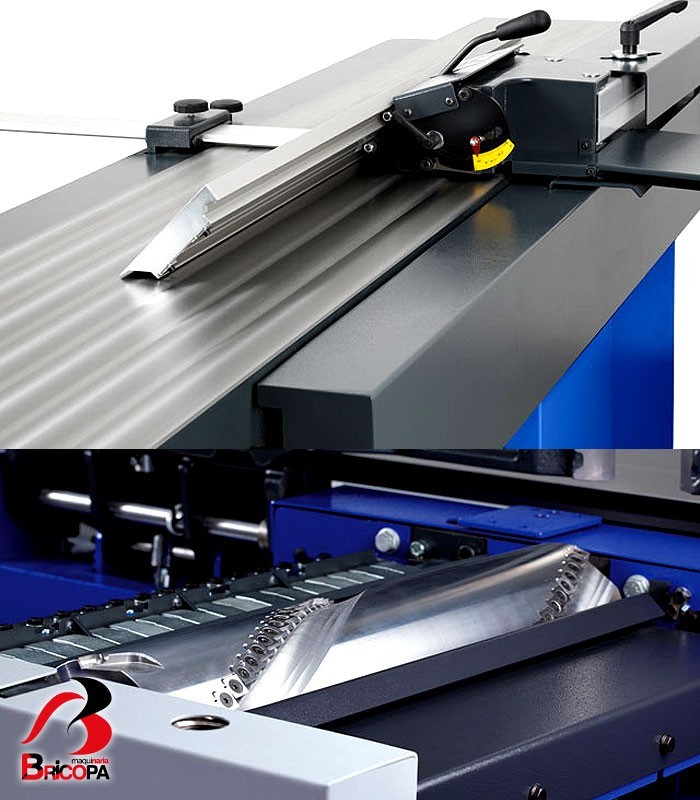

  • The patented planing table adjustment system with precise depth of cut quick adjustment and easy to read scale for maximum productivity. 120 mm cutting diameter and the tried and tested FORMAT-4 system knife cutterblock guarantees perfect planing results.
  • With the self-setting reversible knives you will save time and money with each blade change.

STANDARD EQUIPMENT

Electrical setup

  • 3x 400 V motor voltage
  • 50 Hz
  • 5.5 HP (4.0 kW)*

Cutterblock

  • Surface planing width in mm 510
  • Total planer table length in mm  3000
  • Infeed planer table length in mm 1650
  • Maximum depth of cut in mm 8
  • Power-Drive electrical height adjustment of the infeed planer table with digital display (OPTIONAL)
  • Concave and convex joint setting
  • Professional planer fence, 1300 x 170 mm
  • Planer guard EURO “Standard”
  • 4-knife FORMAT-4-system cutterblock
  • Number of knives - Silent-POWER spiral cutterblock: 77 (OPTIONAL)

General

  • Working height in mm 890
  • Extractor connection port diameter in mm on Planer 140
  • Weight kg (with standard configuration) 800

Optional Accessories

  • Power feed mount
