RADIAL SAW BEST 1250 S

BEST 1250 S MAGGI radial saw table dimensions 2400x1580 mm. With Ø 565 blade: max cut width 200x970 mm, max depth 200 mm, max cutting height at 45° 135 mm, max. height of blade from table 70 mm.

More details

BEST 1250 S MAGGI
New machinery

Technical description

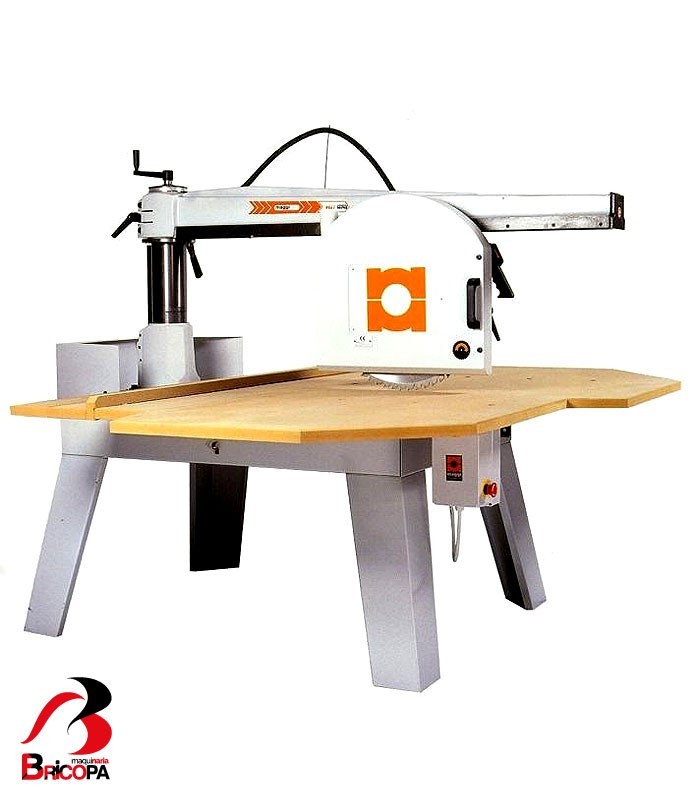

RADIAL ARM SAW BEST 1250 S MAGGI

TECHNICAL FEATURES

MAGGI radial arm saws are built with the maximum care, exploiting the best technological expedients fit for making them sure and reliable.

  • The heavy cast iron structure guarantees their constant and perfect cutting precision.
  • The large wooden working table allows the operator to act with the maximum ease.
  • Adaptability, versatility, cutting precision, maintenance facility make this line of machines an essential equipment in daily use of each kind of joinery.
  • Adjustable, soundproof blade-guard carter that guarantees a complete covering of the blade for each cutting depth. Preset for an easy replacement of the same blade.
  • Sliding of the carriage/fork/motor group by means of 8 adjustable ball bearings assembled at 45 degrees on interchangeable, special steel guides.
  • Blade inclination as to working table from 0 up to 45 degrees with possibility of automatic locking at the 2 ends.
  • Large wooden working table and suction prearrangement.
  • Radial amplitude of the arm from 0 to 45 degrees either right or left.
  • IP54 electric control board with relative emergency push button.
  • NEW ADJUSTABLE BLADE GUARD ensures a complete coverage of the inactive part of the saw blade at all cut depth. diameter 550 mm.
  • SELF-BRAKING MOTOR and frontal switch for low tension.

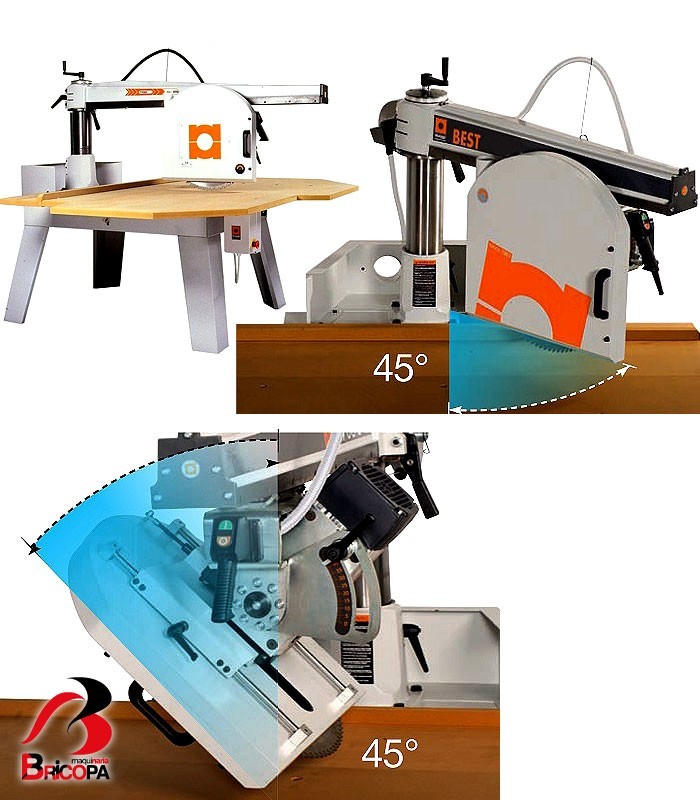

  • THE BLADE can be positionned from 0 to 45 degrees. Automatic locking device on both of the extremities.
  • On request: automatic return device.
  • On request: self-braking motor/low voltage frontal switch group.

TECHNICAL DATA

Three phase Motor Power

7.5 (5.5) Hp (kW)

Motor Speed

2800 r.p.m.

Blade Diameter

Ø 565 mm

Blade Bore Diameter

Ø 30 mm

Shaft dimension

Ø 30x80 mm

Dust chute diameter on blade guard

Ø 60 mm

Rear dust chute diameter

Ø 100 mm

Table dimensions

2400x1580 mm

Max cut width

20x1140 mm

Width of cut h max. Ø 565

200x970 mm

Maximum cut depth Ø 565

200 mm

Max. height of blade from table Ø 565

70 mm

Max. cutting heght at 45° Ø 565

135 mm

Max. cutting height arm 45° on right side

20x785 > 200x675 mm

Max. cutting height arm 45° on left side

20x595 > 200x385 mm

Net Weight

364 Kg

Gross Weight

382 Kg

Packing Dimensions

2400x1050x1230 mm
