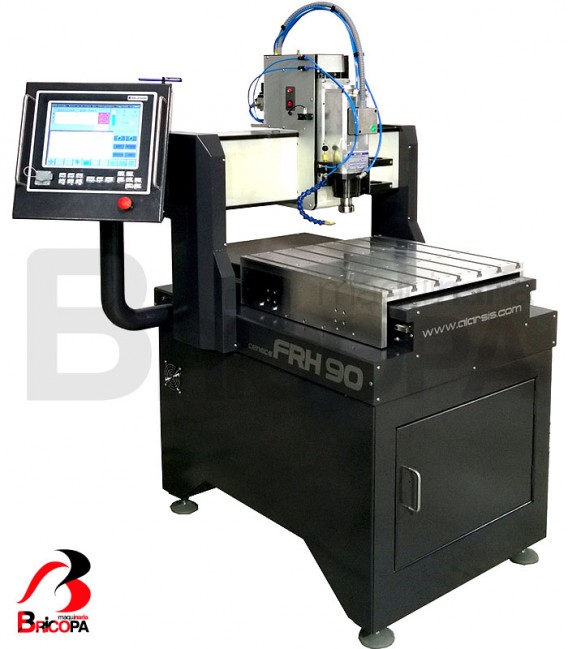

CNC WORKING CENTRE FRH90 TEX

CNC WORKING CENTRE FRH90 TEX ALARSIS is a mechanized production model where both power and performance accuracy required. Oriented graphic arts large format sector.

More details

New machinery

Technical description

CNC WORKING CENTRE FRH90 TEX ALARSIS: Ideal for woodworking industry and labeling, with tubular steel chassis, very robust and low maintenance characteristics of the entire FRH series.

With automatic tool changer option. useful work area 500 x 500 cm and height of 120 mm. Transmission by ball screws on all axes gives unmatched power and precision.

TECHNICAL DESCRIPTION

  • Steel frame.

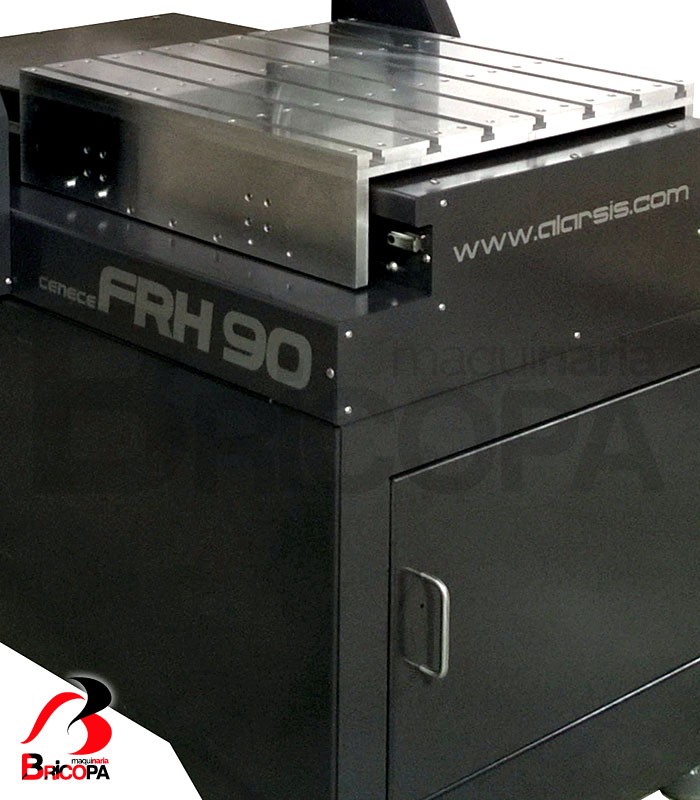

  • Mesa corrugated aluminum.
  • RTA drivers electronics and robotics cabling  class 6.

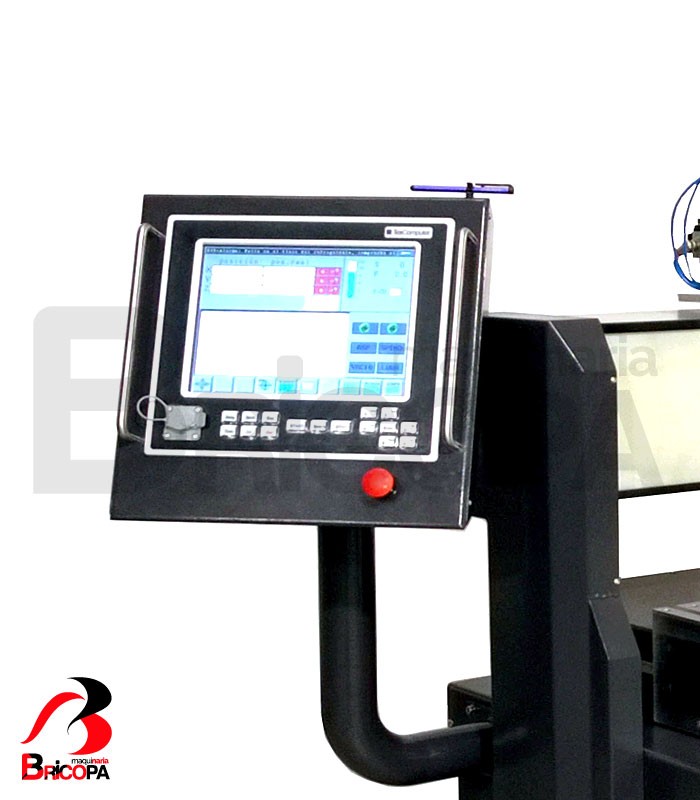

  • CNC control system Tex Touch Computer.
  • linear guides with recirculating self-lubricated, sealed ball without gaps.
  • Transmission in all axes by spindles with nuts recirculating ball prefilled and PaP motors of 30Kg / cm. Servos option.
  • Travel speed 15 meters / min.
  • Resolution 0,005mm.
  • Swarf suction system.

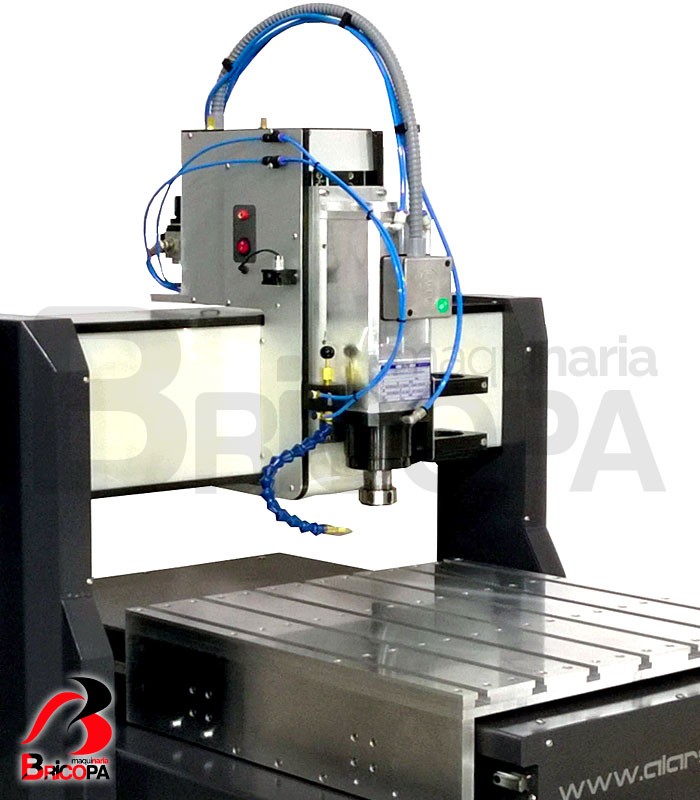

  • brushless head 1,5 or 3 CV CV, 6000 ~ 24000rpm air-cooled or water.
  • Probe for reset axis Z.
  • Laser pointer for verification reset axes X, Y.
  • automatic tool change option.
  • useful working dimensions 500 x 500 mm.
  • Useful height 120mm Z bridge.
  • Dimensions 900 x 1050 mm machine.
  • 2 years warranty.
  • CE certified.
  • ISO9001
  • Made in Spain by Alarsis

OPTIONAL: Can be supplied with various optional elements, composing the machine according to needs.
