CNC WORKING CENTRE FH370

CNC WORKING CENTRE FH370 ALARSIS is a mechanized production model which benefits both power and precision are required with high workloads.

More details

New machinery

Technical description

Mechanized production model which benefits both power and precision are required with high workloads. Ideal for woodworking industry and labeling, with tubular steel chassis, very robust and low maintenance characteristics of the entire FH series. Workspace useful 245x125cm and height of 150 mm.

CNC WORKING CENTRE FH370 ALARSIS: Ideal for woodworking industry and labeling, with tubular steel chassis, very robust and low maintenance characteristics of the entire FH series. Workspace useful 305x202cm and height of 15 cm.

ADVANTAGES

  • Welded tubular steel frame.

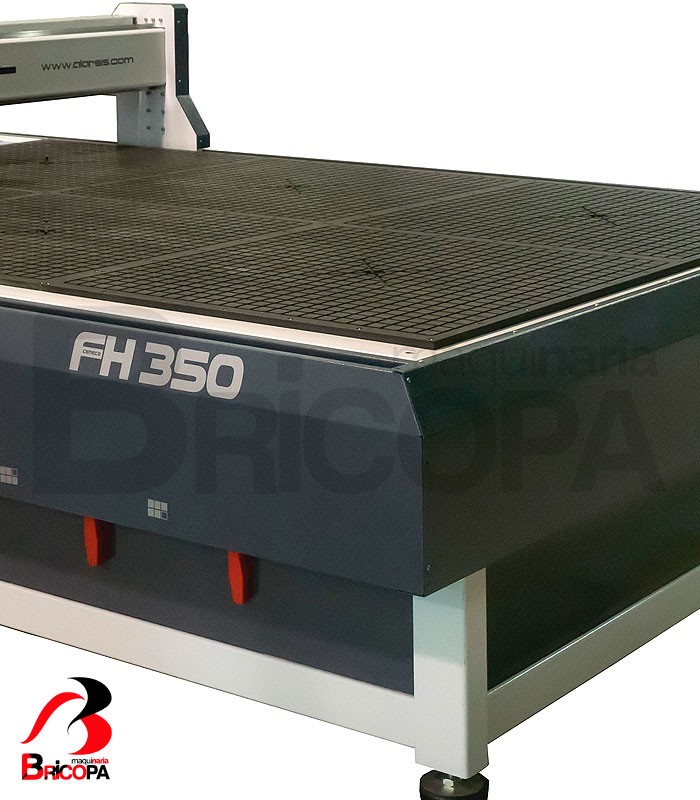

  • Vacuum table with 6 sectors and 7CV pump.
  • RTA drivers electronics and robotics class 6 cabling.

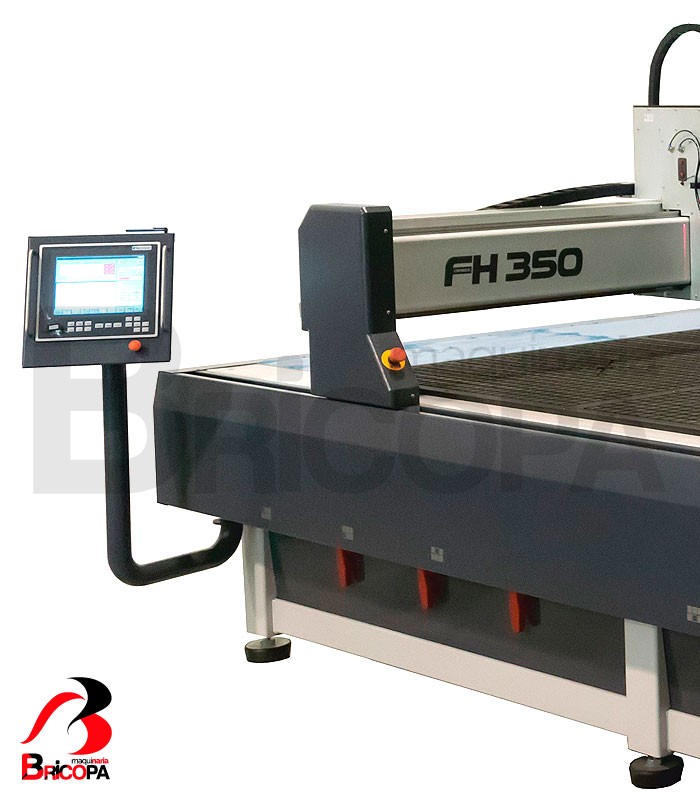

  • TEXCOMPUTER touch screen controller.
  • linear guides with recirculating self-lubricated, sealed ball without gaps.
  • Transmission in all axes by spindles with nuts recirculating ball
    prefilled and servo motors SanyoDenky 70kg / cm torque.
  • Travel speed 20 meters / min.
  • Adjustable resolution 0,001mm.
  • Swarf suction system.
  • ELTE milling motor 5HP, 6000 ~ 24000rpm. 7CV option.
  • Probe for reset axis Z.
  • Laser pointer for verification reset axes X, Y.
  • useful working dimensions 370x202cm.
  • Useful height 150 mm Z bridge.
  • Machine dimensions 430x245cm
  • 2 years warranty.
  • CE certified.
  • ISO9001
  • Made in Spain by Alarsis.

OPTIONAL: Can be supplied with various optional elements, composing the machine according to needs.
