GLUE SPREADER S2R

This automatic glue spreader has 2 rollers, working length from 400 up to 1600 mm, working height 100mm, working surface height 800mm, rollers diam. 185 mm, feed speed 18 m/min, motor power 0’75 Kw.

More details

S2R OSAMA
New machinery

Technical description

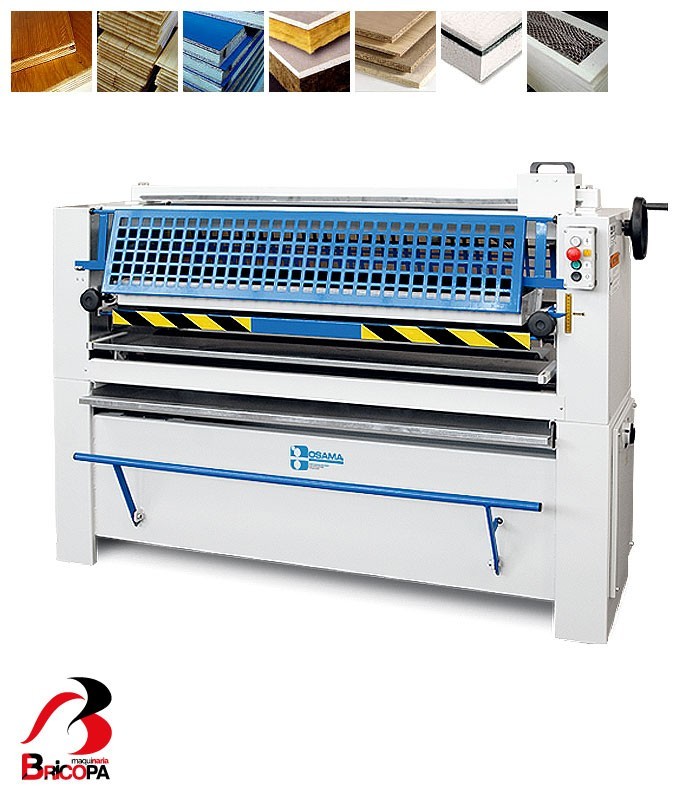

AUTOMATIC GLUE SPREADER MACHINE S2R 2 ROLLERS OSAMA:

The S2R two roller gluer is without doubt a good starting point for those applying glue by roller for the first time. Easy to use, simple to clean at the end of each shift and suitable for small and medium-sized businesses, this unit can also work in an automatic line when fitted with the required accessories.
The standard version includes two applicator rollers and respective glue regulation reservoirs.
Single drive with chain transmission, fixed speed of 18 metres/min, protection guards inside the structure in zinc-coated sheet steel, as also the washing water collection tanks.
185 mm diameter spreader rollers, which can be ground and lined up to three/four times before being rubber-coated again, thanks to the thickness of the rubber coating and the hardness of the materials used.
Roller lining can be customised according to the type of production envisaged.

Possible applications: plasterboard, parquet, doors, etc…
TECHNICAL DETAILS

 S2RS2RS2RS2R
  160013001300600
Working widthmm1600130010001600
Working heightmm100100100100
Working surface heightmm800800800800
Spreading roller diametermm185185185185
Feed speedm/min18181818
Motor powerKw0'750'370'370'37

MAIN FEATURES

  • SPREADING is uniform and constant throughout the working width, thanks to a technological innovation and to special dampers compensating the differences of non calibrated panels.
  • SPREADING ROLLERS coated with a suitable layer of special “antiacid synthetic rubber” give the possibility to perform several grindings and therefore give a long life.
  • HOMOGENOUS BATCHING of the glue to be applied for application by rollers coated with ebonite and ground rollers, controlled by an adjustable hand wheel.
  • SUITABLE PROTECTION DEVICES for all moving parts guarantee the operator’s utmost safety.
  • ELECTRICAL SYSTEM, fully sealed in compliance with EC regulations, with control button pad, voltage 24 volts.

OPTIONAL

  • Automatic washer
  • Manual washer
  • Speed controller
  • Wheels application
