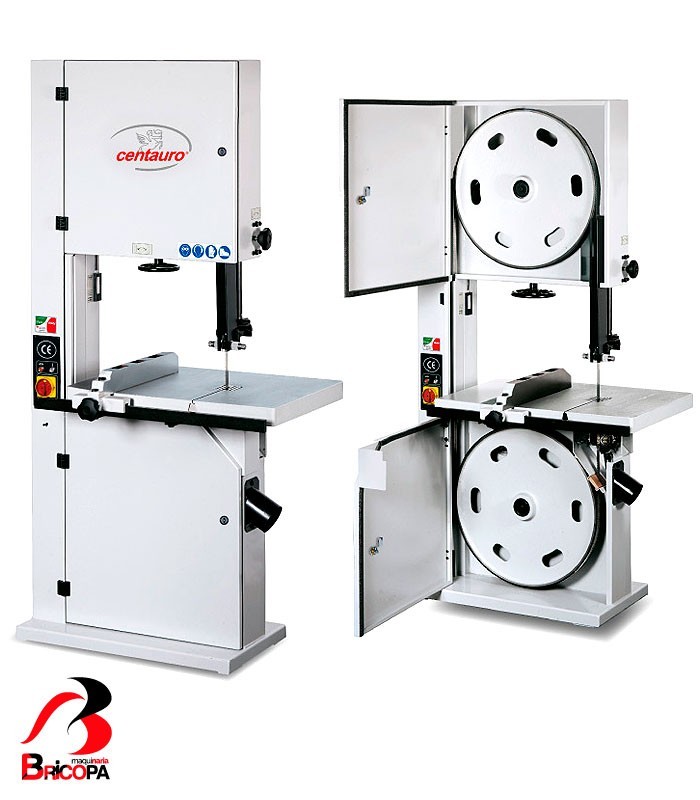

BANDSAWS SP 800

The SP800 CENTAURO band sawing machine has a diameter of saw wheel of 800 mm, and a table size of 710×1030 mm. Maximum cutting height 450 mm. Motor power 5’5 HP.

More details

SP 800 CENTAURO
New machinery

Technical description

BANDSAWS SP 800 CENTAURO

STANDARD EQUIPMENT

  • Steel base
  • Motor kW 4 (HP 5,5)
  • Self-braking motor
  • Blade protection
  • Emergency pushbutton on the control board

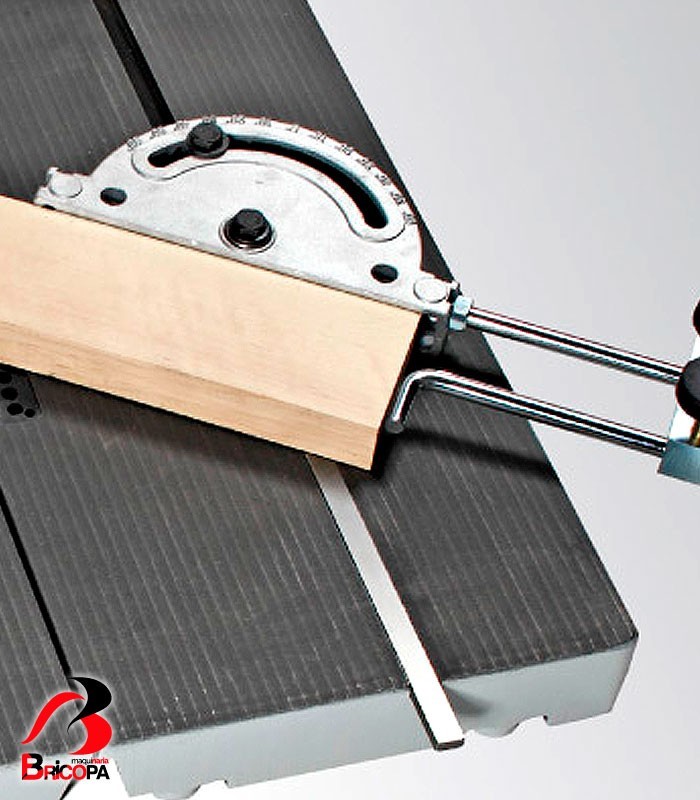

  • 20° tilting table

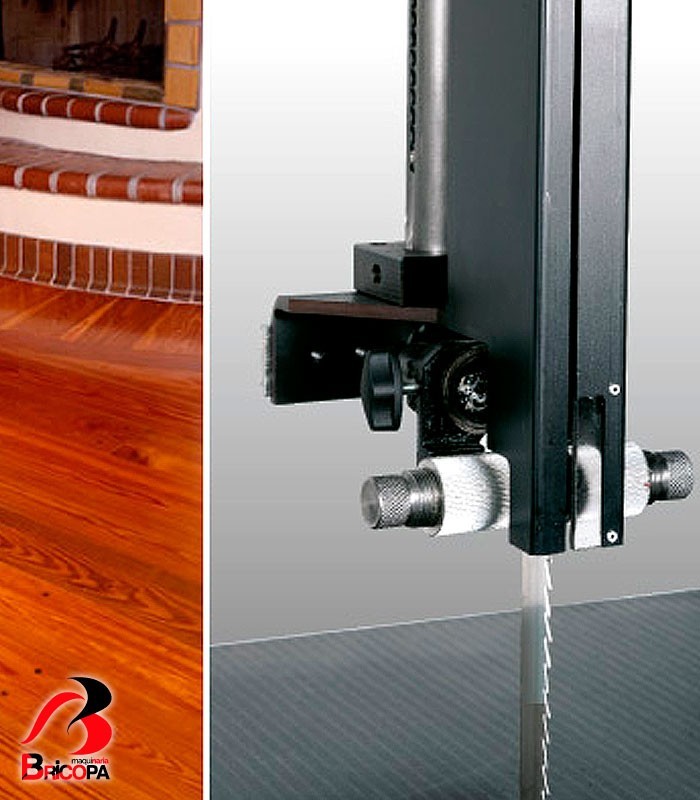

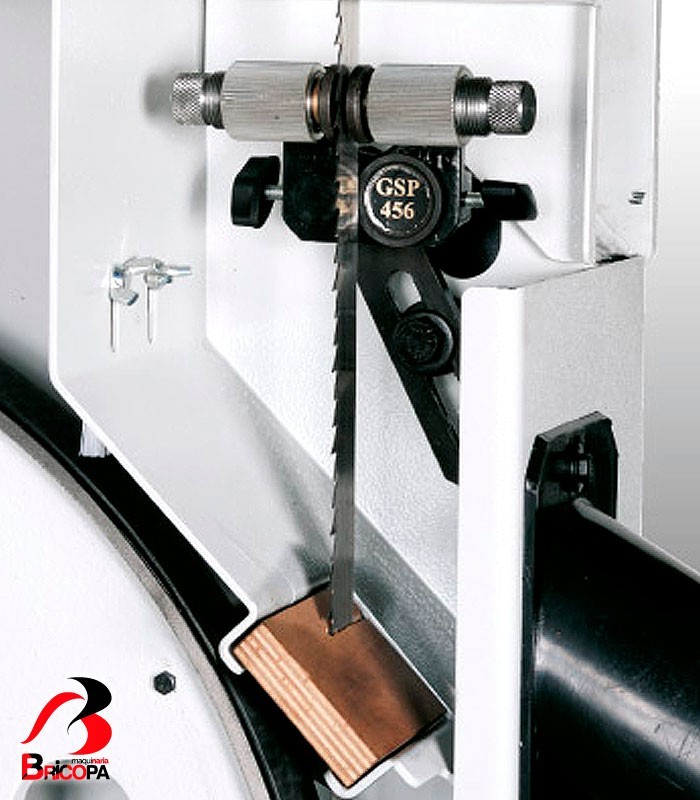

  • High precision upper blade guide CP-10
  • Cutting height 450 mm
  • Friction rack
  • Blade tension indicator
  • Doors with key locking

TECHNICAL DATA

  • Wheel diam. mm. 800
  • Max.cutting height mm. 450
  • Max.cutting width mm. 780
  • Table height from earth mm. 970
  • Table mm. 710×1030
  • Max/min. blade length 5630/5530
  • Max. blade width mm. 40 x 0,6
  • Motor kW 4 (HP 5,5)
  • Wheels at 780 r.p.m.
  • Dust suction outlet: nr. 2 x diam. mm. 100
  • Overall dimensions (h x L x W) mm. 2500x1440x850
  • Net weight Kg. 490
  • Gross weight (crate) Kg. 580
  • Gross weight (case) Kg. 610
  • Shipping volume m³ 2’3
  • Sound power level db(A) 91.1
