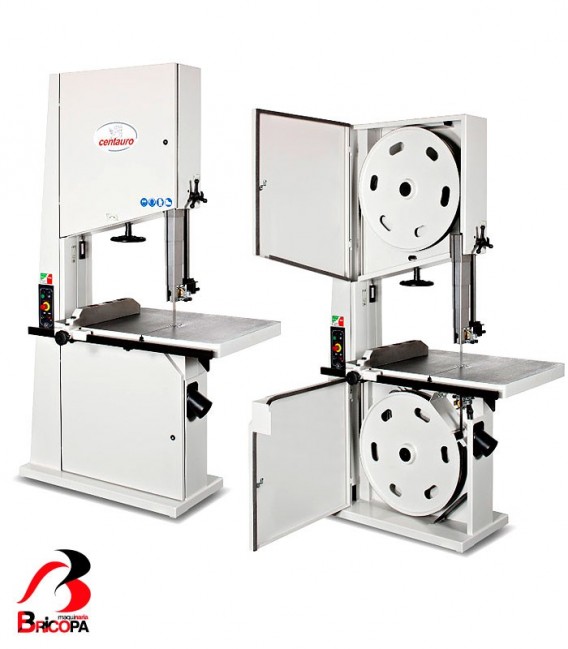

BANDSAWS CO 600

This band sawing machine has a diameter of saw wheel of 600mm, and a table size of 810x580 mm. Maximum cutting height 370 mm.

More details

CO 600 CENTAURO
New machinery

Technical description

BANDSAWS CO 600 CENTAURO

  • Steel base
  • Motor kW 2,2 (HP 3)
  • Self-braking motor
  • Blade telescopic protection
  • High precision upper blade guide - CP-20
  • Emergency pushbutton on the control board
  • 20° tilting table
  • Cutting height 370 mm
  • Friction rack
  • Blade tension indicator
  • Doors with key locking

TECHNICAL DATA

  • Wheel diam. mm. 600
  • Max.cutting height mm. 370
  • Max.cutting width mm. 580
  • Table height from earth mm. 900
  • Table mm. 810x580
  • Max/min. blade length 4580/4480
  • Max. blade width mm. 35 x 0,6
  • Motor HP (kW) 3 (2,2)
  • Wheels at 715 r.p.m.
  • Suction hose: n. 1 diam. mm. 100
  • Overall dimensions(h x length x width) mm. 2075x1165x760
  • Net weight Kg. 295
  • Gross weight (crate) Kg. 355
  • Gross weight (case) Kg. 395
  • Shipping volume m³ 1,70
  • Sound power level db(A) 89.6
