BAND SAW FOR CUTTING SHAPES SN33

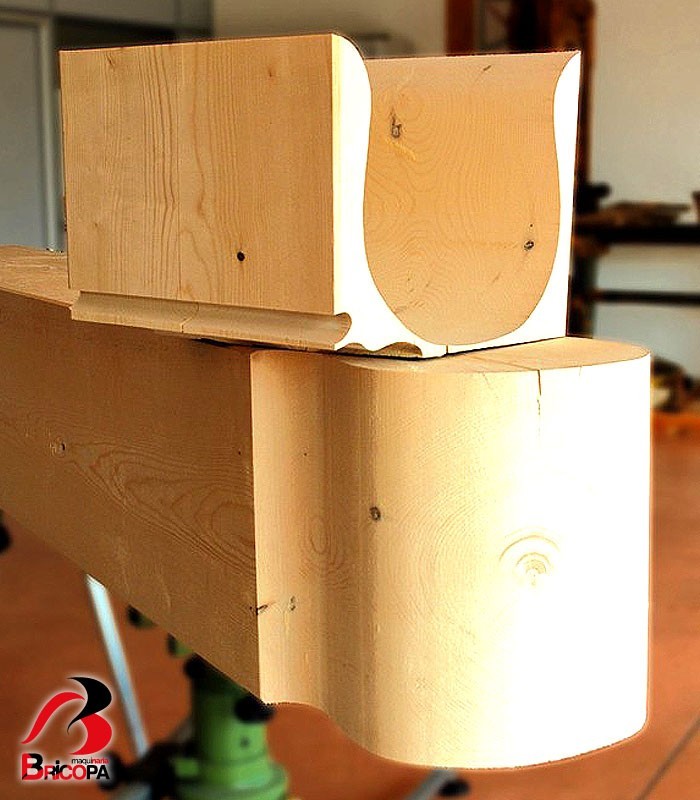

Band saw for beams SN33 MD DARIO with a cutting width 390mm, cutting height with special blade-guide 310 mm, work surface 500x400, max. blade length 2530 mm, min. blade width 3mm. Ideal for angled cutting, shaped countours and circumferences.

More details

SN33 MD DARIO
New machinery

Technical description

BANDSAW FOR CUTTING SHAPES SN33 MD DARIO is ideal for processing small handcraft pieces with a maximum height of 31 cm.

TECHNICAL DATA

Cutting width

390 mm

Cutting height

250 mm

Maximum cutting height with special blade-guide

310 mm

Dimensions of work surface

500 x 400 mm

Maximum blade lenght

2.530 mm

Min. blade width

3 mm

Power of motor

1,5 HP  1,1 KW

Weight

50 KG

TECHNICAL FEATURES

  • It is available fixed for working at the bench, if small parts are to be obtained that require high precision (mosaics and small objects) or otherwise mobile, applying it to the articulated arm. In this case it is equipped with a two-hands control to ensure the maximum safely of the operator when working.
  • The working surface can be inclined in both directions, 35° to the right and 15° to the left, which is a very practical feature as it can be adjusted manually by means of a graduated hand wheel.
  • According to the requirements of the user, the SN33 can be applied either on a mobile carriage that permits transfer in different workplaces (SET 1500), or on a column to cut arcs and circumferences (SET 2000).

SN33 MD DARIO VIDEO

Ask for information

To request information about this product, you can do so in the following ways.

  +34 983 40 19 42
  +34 637 771 218
